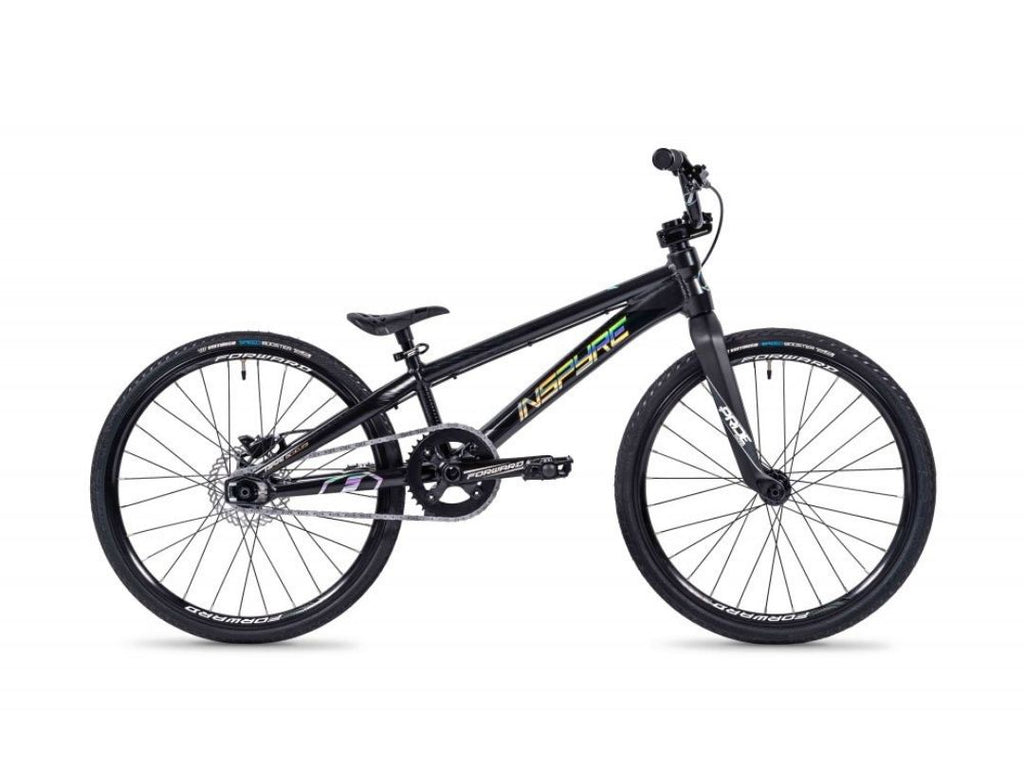

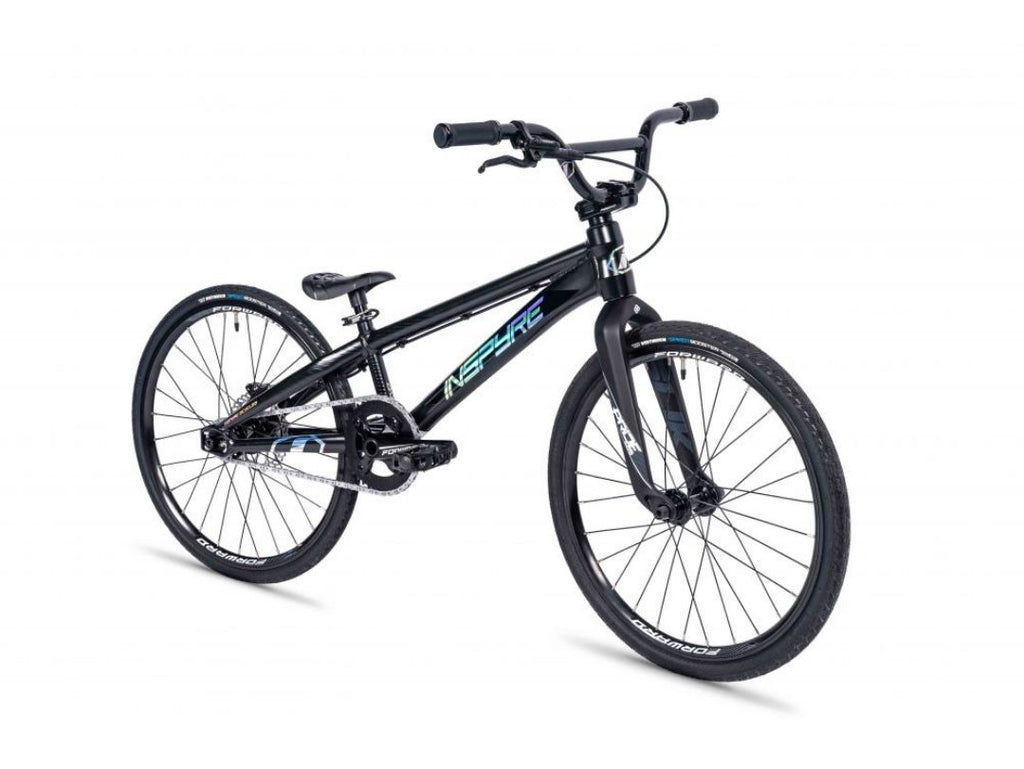

BMX INSPYRE EVO-C DISK JUNIOR 2021
BMX INSPYRE EVO-C DISK JUNIOR 2021
Product Details
DESCRIPTION :
The EVO-C Disk, designed to be "Race Ready" right out of the box, is still evolving with 2 new features !
The braking system has been upgraded. The EVO-C Disk range is now equipped with a Shimano MT200 brake, offering high-end braking.
The Forward Joyride V2 rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.
IN DETAIL:
- 6061-T6 Aluminum frame - Hydroformed Tubes

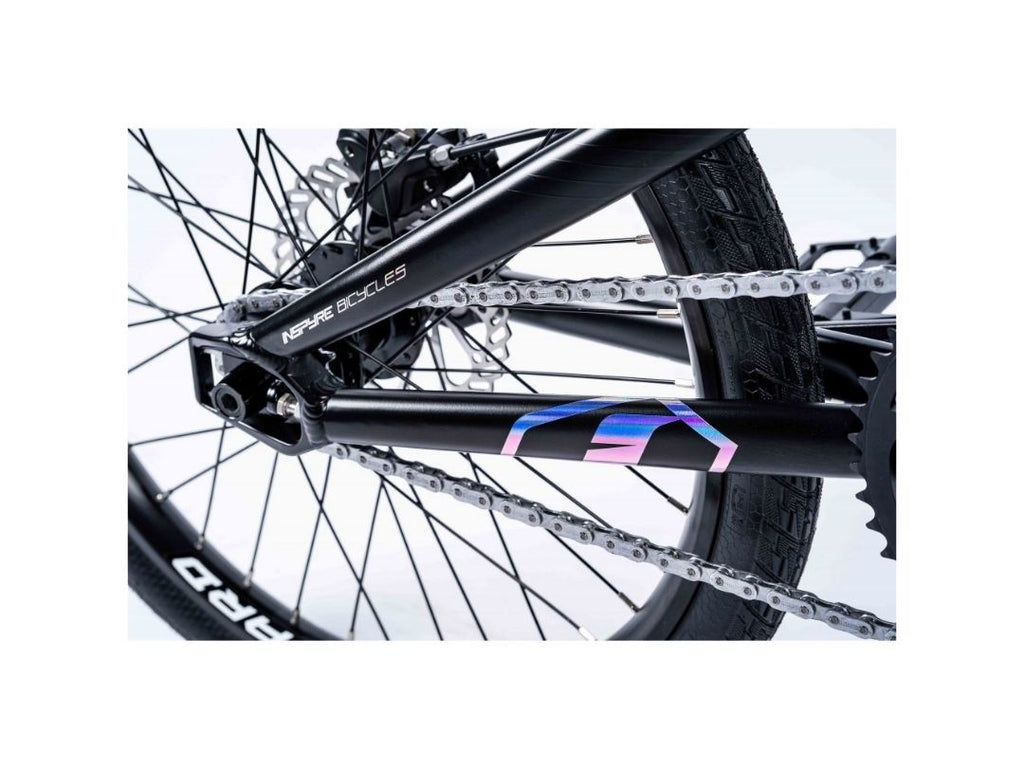

- Closed SWELL dropouts with tensioners

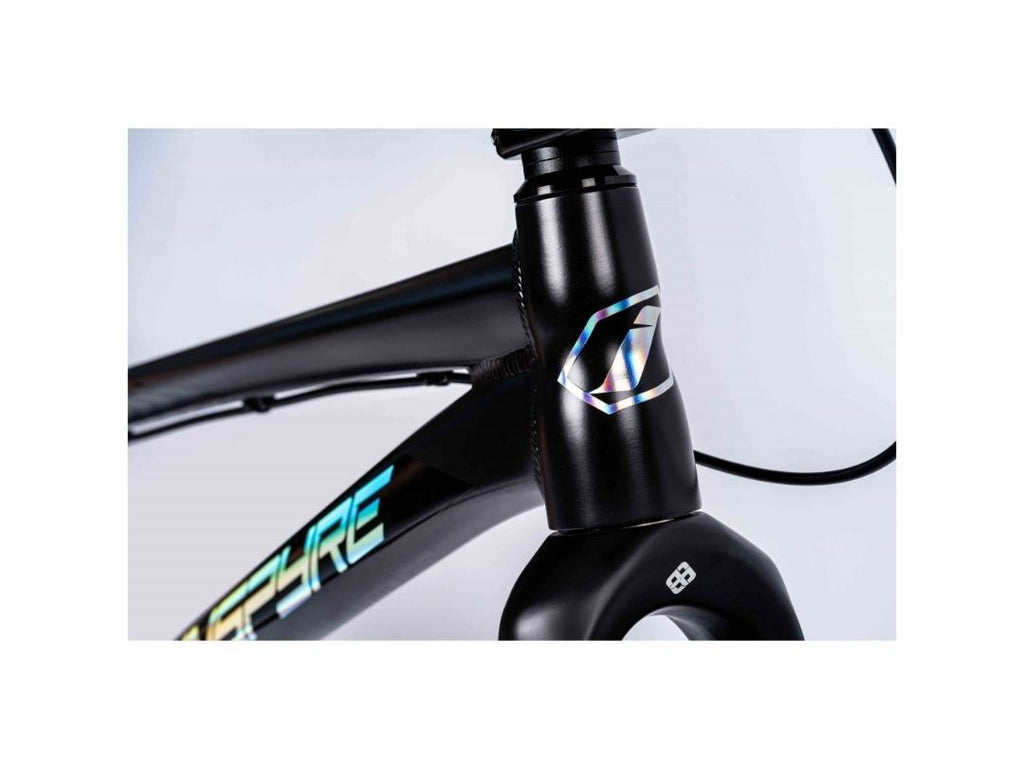

- Tapered head tube from Expert XL

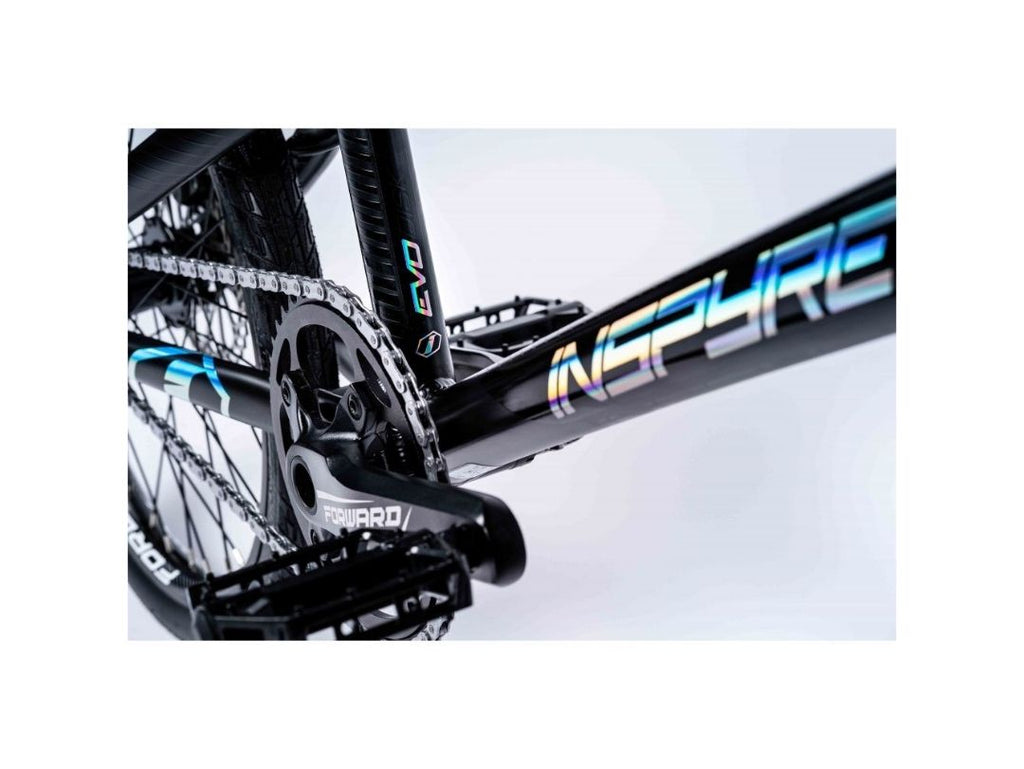

- Forward Joyride AM 2 pieces external BB crankset
- Forward Joyride V2 rear hub 6 pawls 150 engagement points, new and larger hub body NEW
- Forward Joyride V2 front hub female bolts and sealed bearings NEW
- Forward Joyride double wall rims
- Shimano MT200 hydraulic disc brake 140mm NEW
- Vee Speedbooster tires
SPECS:
- FRAME : Inspyre Evo Disk Junior - 18.75’’ Premium Alu 6061-T6 - Tubes hydroformed triple butted - Dopout Swell 3D forged
- COG : 16T - 1/2’’ x 3/32’’
- CHAIN : KMC® Z1 EHX - 1/2’’ x 3/32’’
- SPROCKET : Aluminium 4 points 38T - 110mm
- GEAR : 38 x 16
- SEAT CLAMP DIAM. : Forward AM 25,4mm
- DISC : Forward Joyride AM 140mm
- BRAKE : Shimano MT200 hydraulic

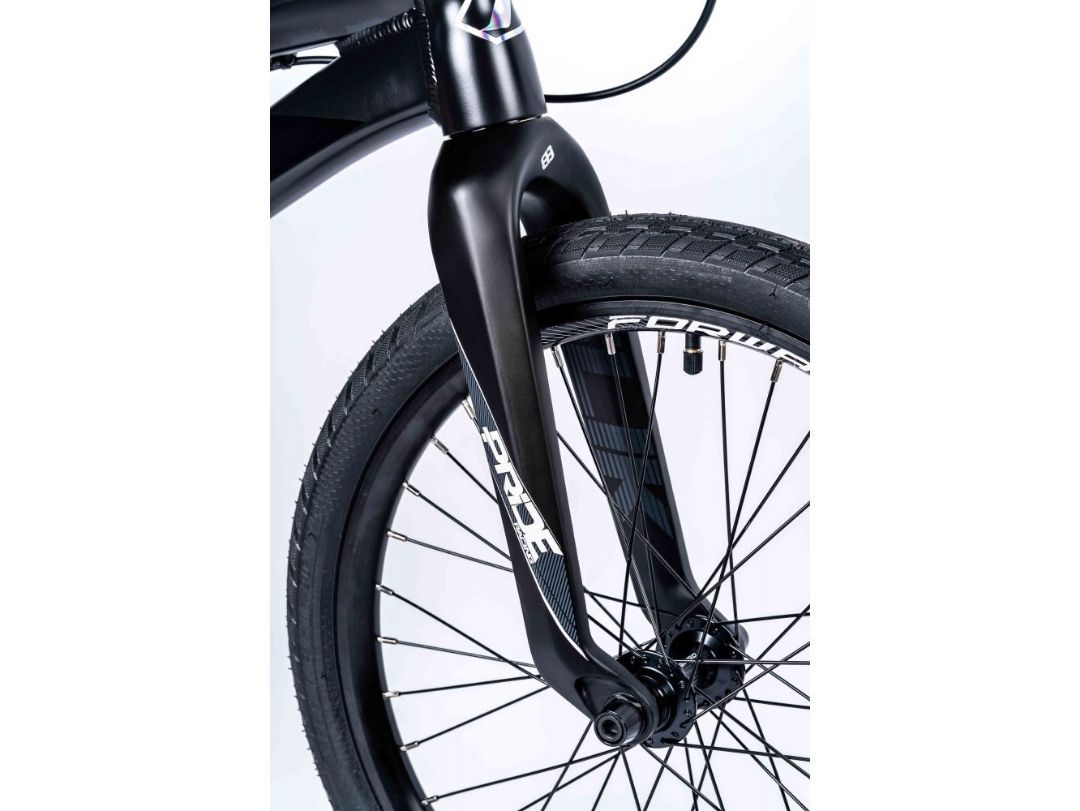

- FORK : Pride Slik carbon
- BAR : Inspyre Evo - Aluminium 4.25’’ x 22’’ - BS : 9° / US : 2°
- REAR RIM : Forward Joyride - Aluminium 28H - Double walls
- FRONT RIM : Forward Joyride - Aluminium 28H - Double walls
- HEADSET : Semi Integrated - Ring bearings - ZS44 | ZS44
- BRAKE LEVER : Shimano MT200 hydraulic
- REAR HUB : Forward Joyride V2 Disc - Body aluminium Cassette 28H - 10mm - 100% ring bearings - 150 engagement points - 6 pawls - Female bolts
- FRONT HUB : Forward Joyride V2 - Body aluminium 28H - 10mm - 100% ring bearings - Female bolts
- PEDALS : Alu Mini 9/16
- CRANKSET : Forward Joyride AM 2 pieces - 4 Points - 150mm
- TIRES : Vee Tire® Speedbooster 20’’x1-3/8 (AV) / Vee Tire® Speedbooster 20’’x1-1/8 (AR)
- WEIGHT : 7,95kg
- GRIPS : Forward Lock On 95mm - Kraton
- STEM : Forward - Top Load - Aluminium 6061-T6 - 40mm
- SPOKES : Stainless 14G
- SEAT : PC 22.2mm
- CHAIN TENSIONERS : Swell integrated
- TOP TUBE : 18,75"
- BOTTOM BRACKET : External - EB24 ring bearings
- HEAD SPOKES : Brass 14G
- RIDER HEIGHT : 1m35 - 1m45
