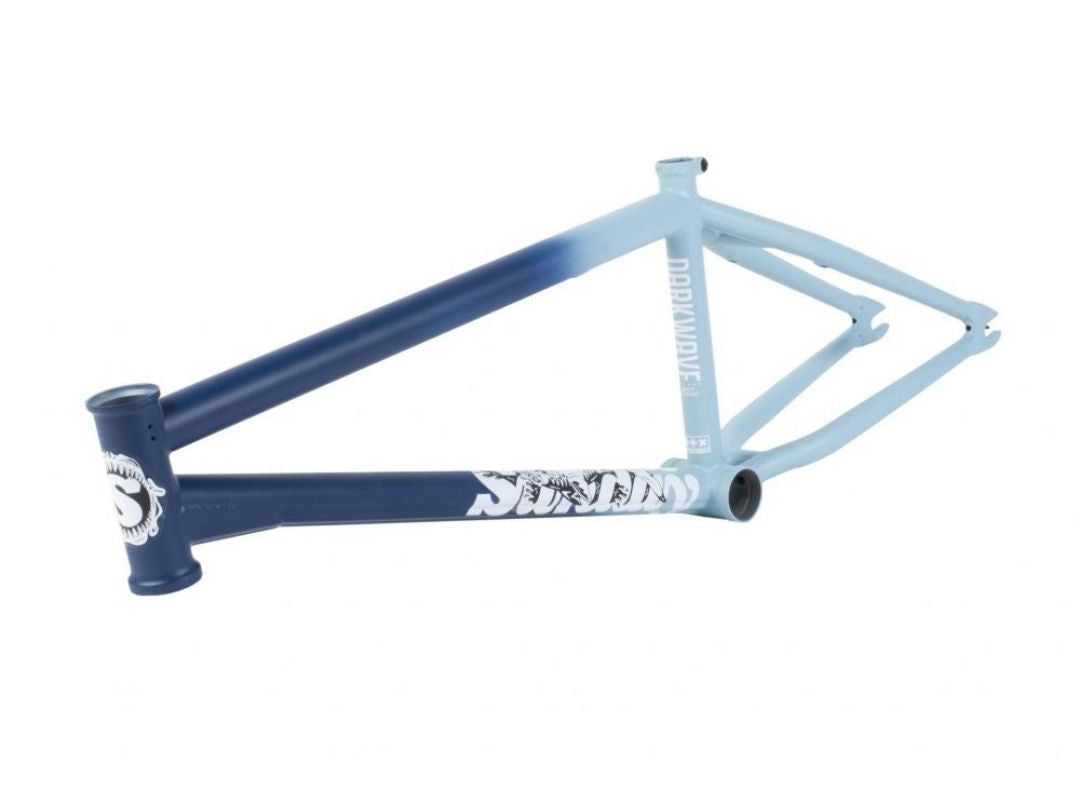

SUNDAY DARKWAVE MATTE DUSK FADE FRAME

DESCRIPTI

The Broc Raiford signature frame: the Darkwave is affordable and versatile, accompanied by new Broc signature stickers.

Designed in Cr-Mo 4130, the detail can be seen on the down tube equipped with Sunday's Wave technology. Indeed, it brings more resistance to shocks!

IN DETAIL:

• 100% 4130 Chromoly frame
• Broc Raiford signature geometry
• Wave down tube: The double-butted, 1.45" diameter down-tube feature Sunday's proven Wave shaping to fight denting against contact made from a rail, ledge, coping and whatever else happens to get thrown at it
• Integrated seat clamp
• Butted Seat Tube & Miter Cut Top Tube:
  A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
• Tapered Chain & Seat Stays:
  Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
• Hollow Dropouts with Chain Tensioners:
  Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
• Removable Brake Hardware and gyro tabs
  Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they’re not.

GEOMETRY

Top Tube Lengths: 20.75" or 21"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 13.25-13.5”
Bottom Bracket Height: 11.75”
Standover: 9.25”
Tire Clearance: 2.4”
Head Tube Length: 5.1”
Weight: 6.22lbs
