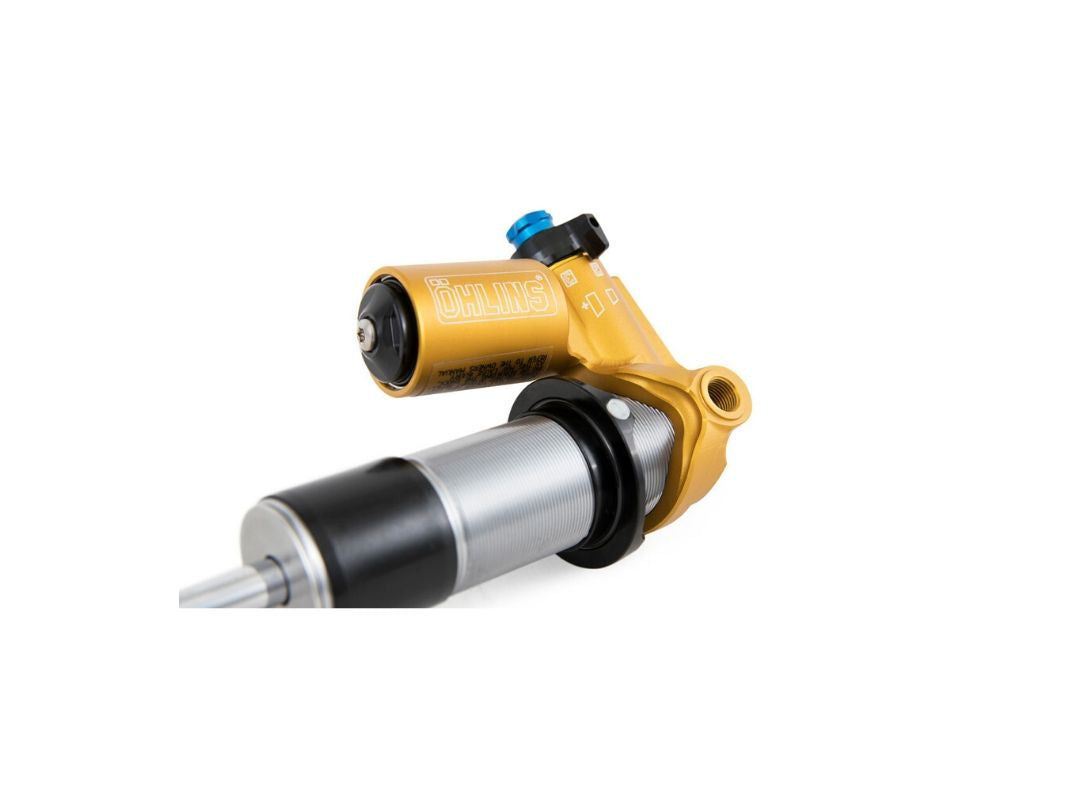

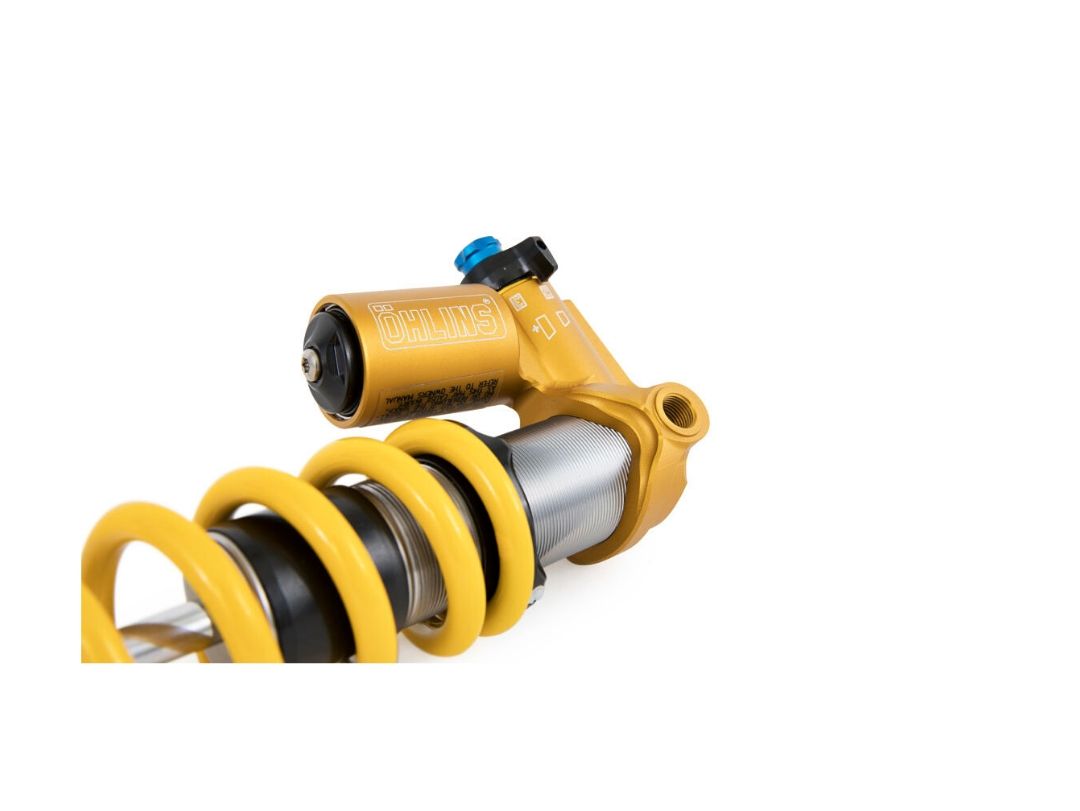

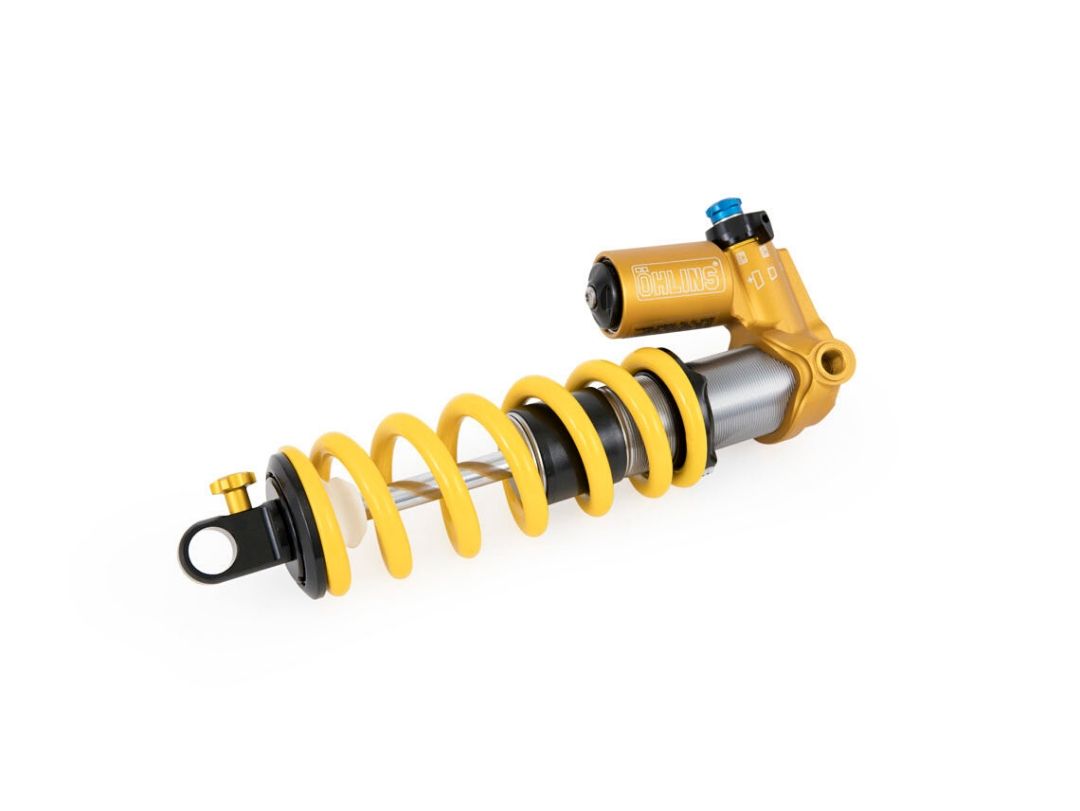

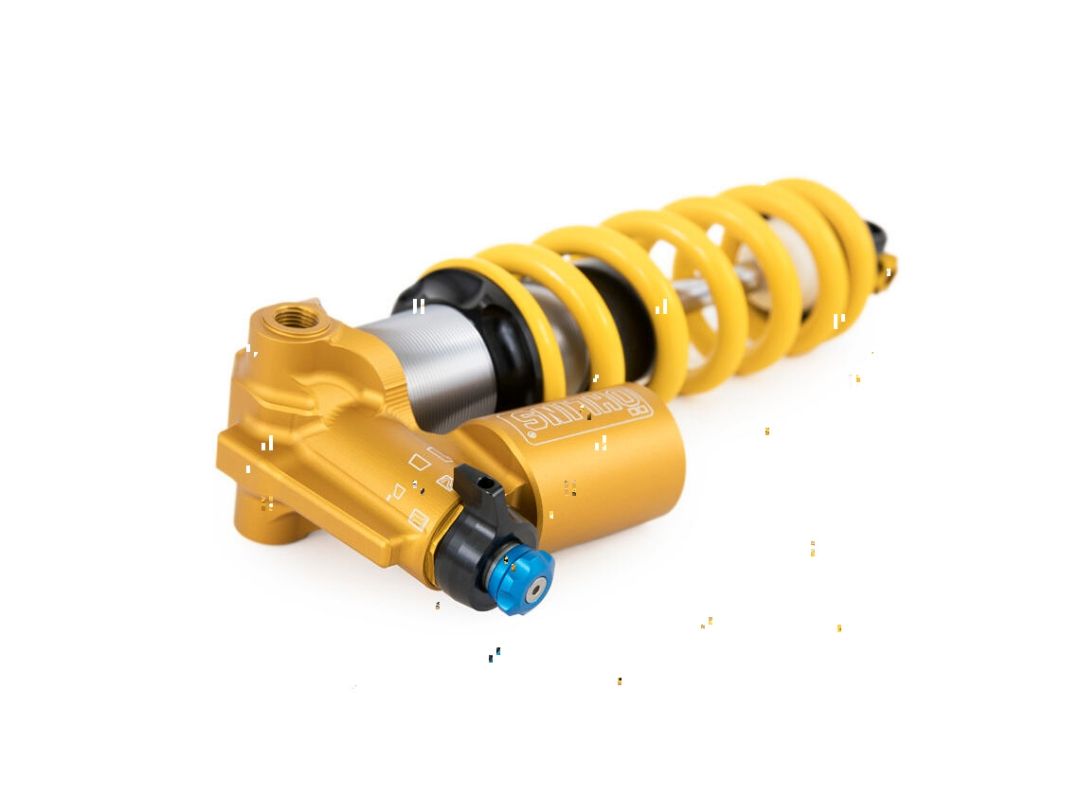

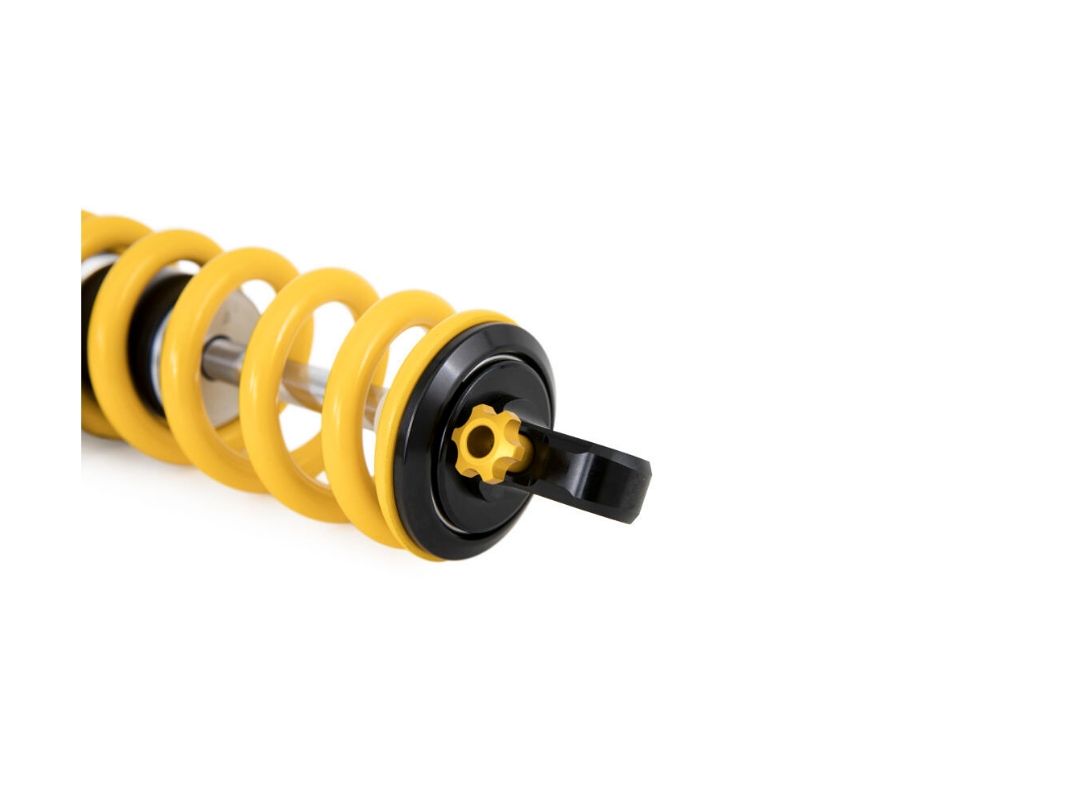

SHOCK Öhlins TTX22M Trunnion 205 x 65 mm

DESCRIPTION:

Ever since the launch of the Öhlins TTX 22 M, the shock absorber has created a buzz within the bike industry. Riders have praised the shock from the time it was released. Now available in in metric lengths/strokes. The TTX 22 M ­aftermarket shock absorber is designed to handle the most challenging World Cup Downhill tracks while still providing pedal efficiency for the flat and uphill sections. The twin tube design allows the gas pressure to always backup the low-pressure side of the piston to keep pressure at a controlled level. This ensures consistent damping performance on all types of terrain and improves damping response to give outstanding control of the bike and tire movements.

Low and high speed compression and rebound damping are externally ­adjustable. Spherical bearings is offered as an option on widths up to 22 mm, reducing friction on the shock during side loads to improve small bump sensitivity. All shocks feature the stability mode. 3rd position on high speed adjuster increase compression damping to reduce suspension movements during less technical climbs.

We have developed new springs for the TTX22 M Trunnion and decreased the weight by 25-30%.

Features

TTX-technology
Specifically designed for the Enduro/gravity segment
Nitrogen pressurized bladder reservoir system
Weights from 423 grams to 454 grams including ball joint
Spring weight has been reduced
Easy to set up with enough adjustment range to suit different riding conditions
External, 3 level high-speed compression adjustment
External, 16 click low-speed compression adjustment rebound damping adjustment
External, 7 click rebound adjustment
