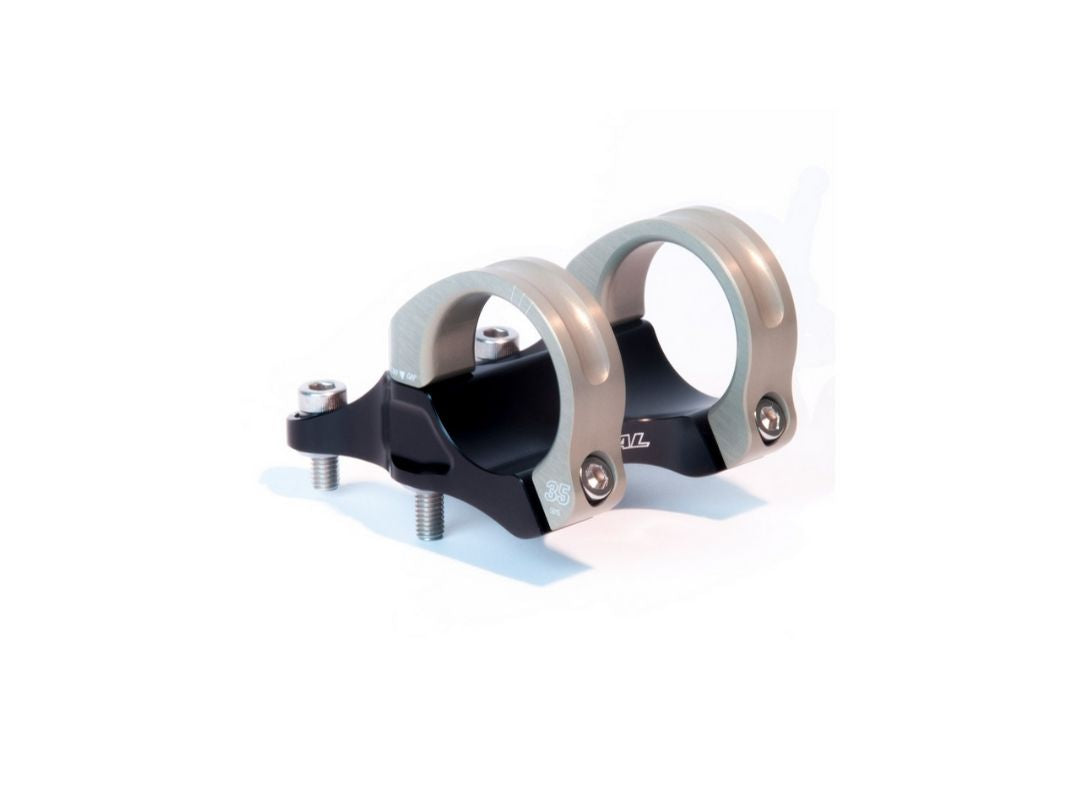

RENTHAL INTEGRA 35 STEM

Description:

Renthal's revolutionary Integra stem combines high strength with ultra-low weight. The use of two independent, C-shape handlebar clamps allows the stem body material to be reduced to a minimum, whilst maintaining an incredibly stiff and strong structure.

The ultra-wide, 64 mm handlebar clamping area increases torsional rigidity and the use of just six bolts vastly reduces overall weight. In addition, the uninterrupted clamp on the underside of the handlebar eliminates stress risers found on most other clamps, which can lead to handlebar failure.

Features
- CNC machined 6082 aluminium body 7075 aluminium clamps
- Unique 240 deg C-shape clamps
- Minimal 6-bolt design
- U-shape cradle clamp eliminates handlebar stress raisers found with traditional stems
- Ultra-wide 64mm clamp width

Handlebar Clamp
The clamps are installed over the small diameter section of the handlebar and slide into the centre, giving a 240° wrap of the handlebar. This clamping system allows the stem body material to be reduced to a minimum, while maintaining an incredibly stiff and strong structure.

CNC Machined
The Integra stem is fully CNC machined from solid billet. All unnecessary material is removed to minimise weight, while retaining maximum strength and stiffness. The unique handlebar clamping allows full access to the stem body, to machine away all unnecessary material.

Aluminium Tech

The Renthal Integra features a fully CNC machined 6082 T6 aluminium body and 7075 clamps. The materials and their heat treatment processes have been specifically chosen, to give the highest strength to weight ratio.

Efficient Design

Steel hardware is a major factor in the weight of a stem. The Integra has reduced the required hardware to just six bolts, instead of the normal height, to vastly reduce overall weight. Combined with a single piece stem body, the 64 mm clamp width gives superior strength and structural stability. This increases control, without the need to add large amounts of material and hence weight

Race Winning
The Renthal Integra has already gained cult status, as the stem of choice for World Cup downhill. Four World Cup overall championships and seven World Championship gold medals have been won using the Integra, cementing it as one of the most successful race products of all time.

Specifications

Mounting: Boxxer/Fox IS
Clamping Diameter: 35 mm
Weight: +- 159 g (including bolts)
Color: alugold/black
