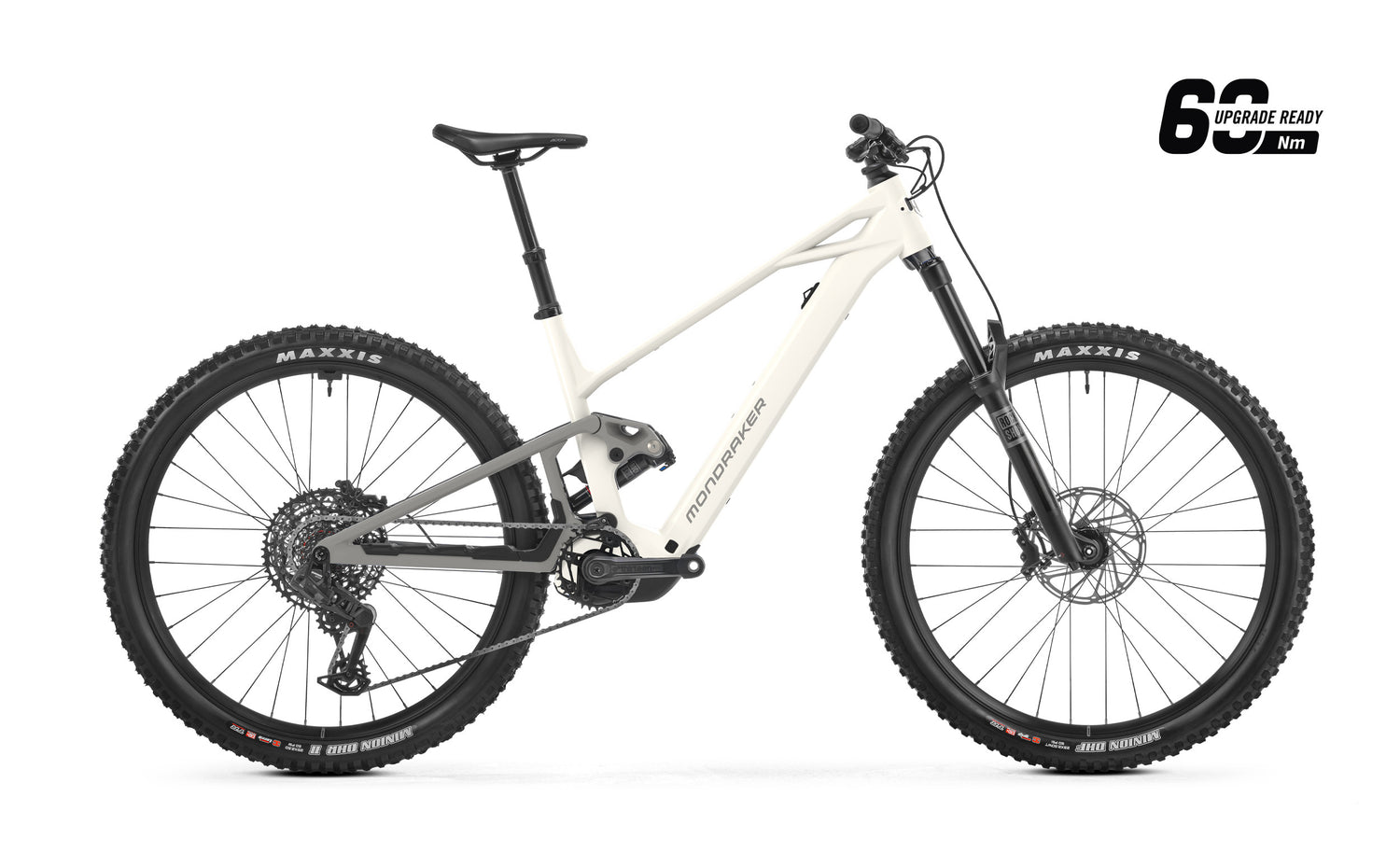

Mondraker - SLY R

€5,999.00 EUR

Frame: 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Fork: Rockshox Lyrik Base, 160mm, 3 Pos, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Rear shock: Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings

Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery: Bosch Compact Powertube 400Wh

Weight: 20,9 kg

See All Specs

Geometry & Size Guide

Size guide

ColorOptic White

Frame Size S M ML L XL

Mondraker - SLY R

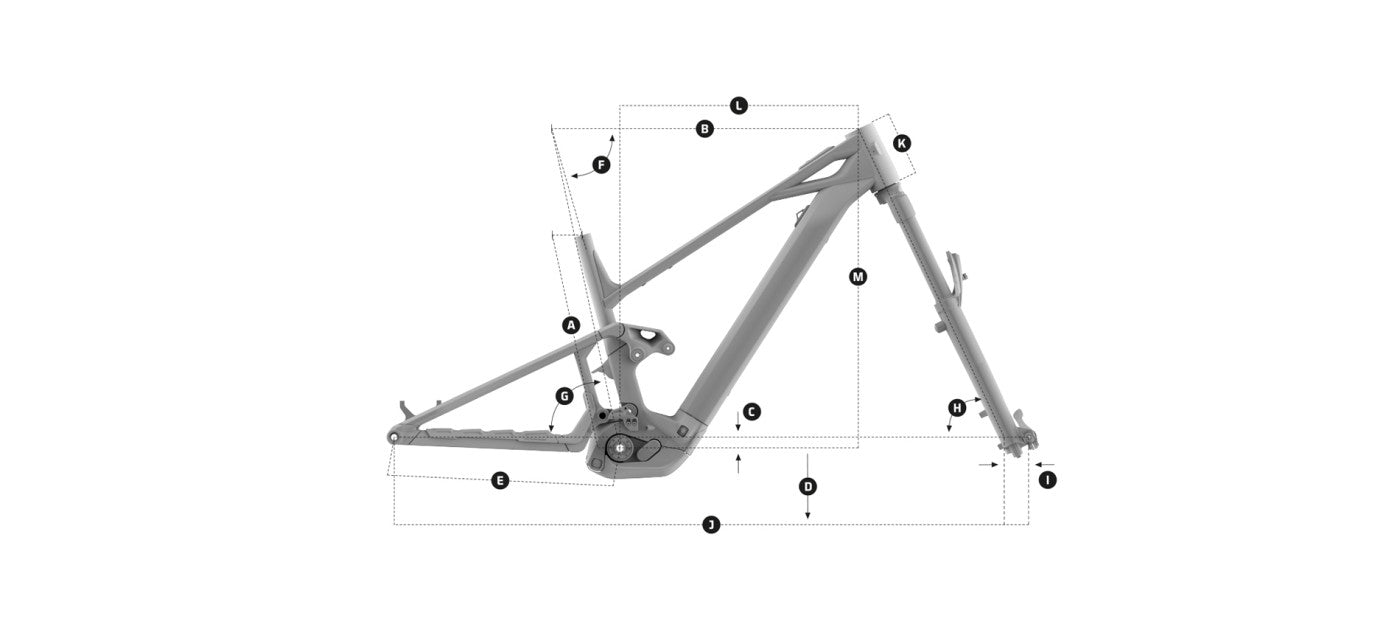

Geometry

	Frame size	S	M	M/L	L	XL
A	Seattube length	380 mm 14.96"	410 mm 16.14"	435 mm 17.13"	460 mm 18.11"	490 mm 19.29"
B	Toptube length	595 mm 23.43"	615 mm 24.21"	635 mm 25.00"	660 mm 25.98"	685 mm 26.97"
C	Bottom bracket drop	-22 mm -0.87"	-22 mm -0.87"	-22 mm -0.87"	-22 mm -0.87"	-22 mm -0.87"
D	Bottom bracket height	350 mm 13.78"	350 mm 13.78"	350 mm 13.78"	350 mm 13.78"	350 mm 13.78"
E	Chainstay length	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"
F	Seat tube angle	74º	74º	74º	74º	74º
G	Effective seattube angle	77º	77º	77º	77º	77º
H	Headtube angle	64,5º	64,5º	64.5º	64,5º	64,5º
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1225 mm 48.23"	1250 mm 49.21"	1265 mm 49.80"	1290 mm 50.79"	1315 mm 51.77"
K	Headtube length	120 mm 4.72"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	440 mm 17.32"	460 mm 18.11"	480 mm 18.90"	500 mm 19.69"	520 mm 20.47"
M	Stack	633 mm 24.92"	633 mm 24.92"	642 mm 25.28"	651 mm 25.63"	660 mm 25.98"

Material

Aluminium

Front (mm)

160mm

Rear (mm)

150mm

Motor

Bosch

Battery

400Wh

Weight

20.9 kg

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.
