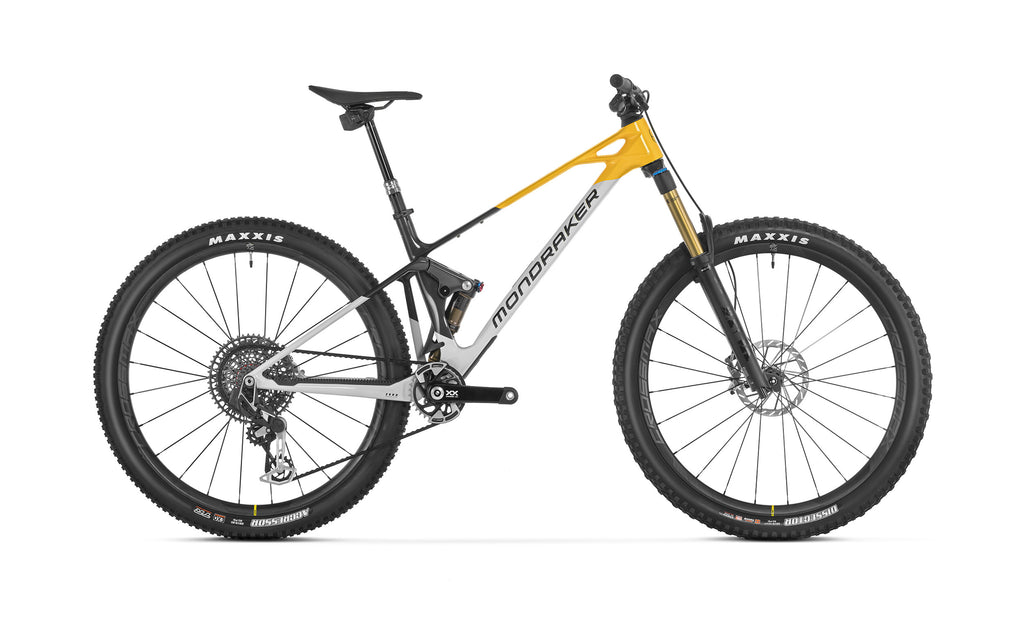

Mondraker - RAZE CARBON RR SL

€9,299.00 EUR

Frame: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Rear shock: Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Weight: 13,3 kg

See All Specs

Geometry & Size Guide

Size guide

ColorDense Yellow

Frame Size S M L XL

Mondraker - RAZE CARBON RR SL

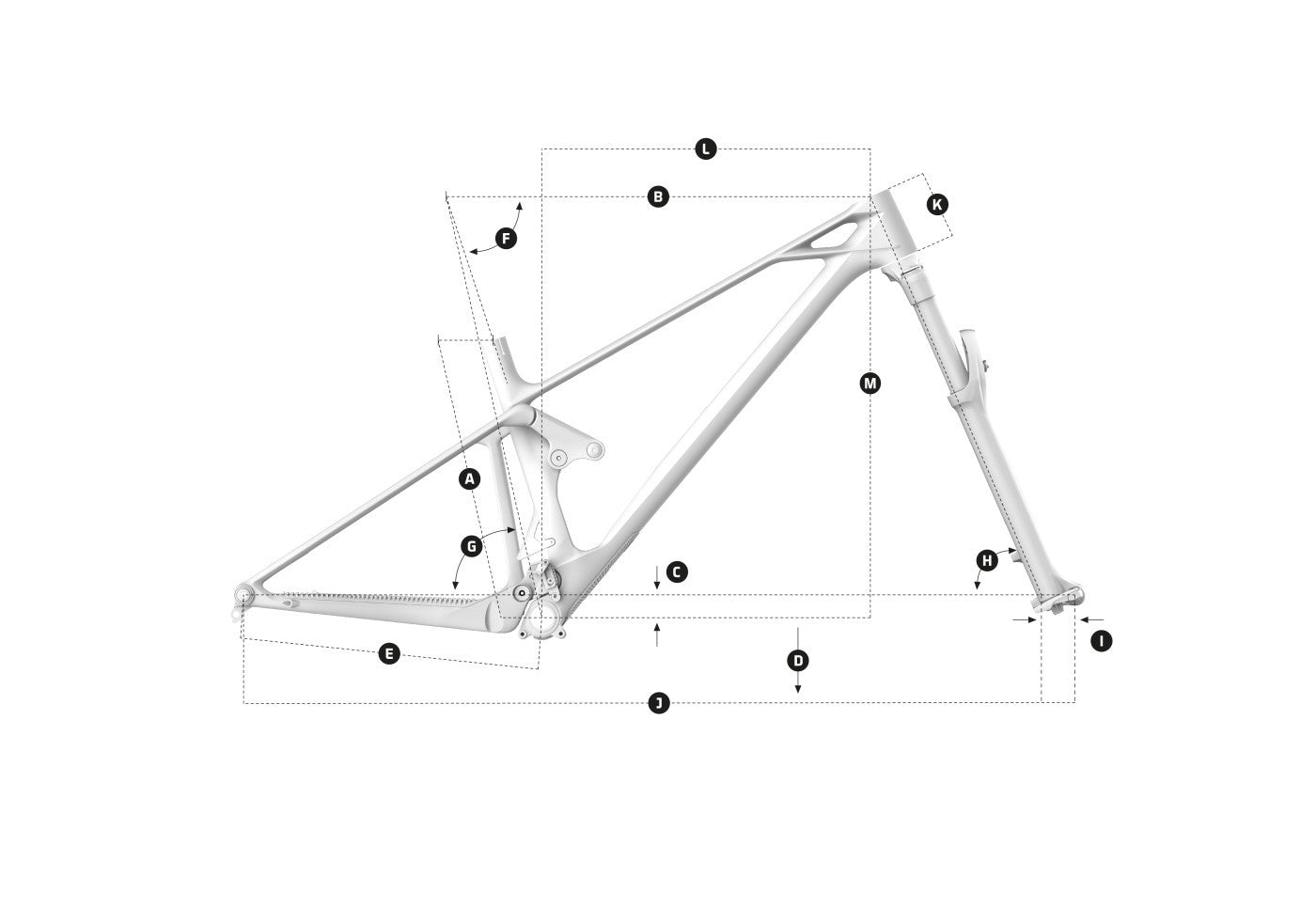

Geometry

	Frame size	S	M	L	XL
A	Seattube length	375 mm 14.76"	415 mm 16.34"	445 mm 17.52"	500 mm 19.69"
B	Toptube length	595 mm 23.43"	620 mm 24.41"	645 mm 25.39"	670 mm 26.38"
C	Bottom bracket drop	-30 mm -1.18"	-30 mm -1.18"	-30	-30 mm -1.18"
D	Bottom bracket height	343 mm 13.50"	343 mm 13.50"	343 mm 13.50"	343 mm 13.50"
E	Chainstay length	435 mm 17.13"	435 mm 17.13"	435 mm 17.13"	435 mm 17.13"
F	Seat tube angle	71°	71°	71°	71°
G	Effective seattube angle	76.5°	76.5°	76.5°	76.5°
H	Headtube angle	65.5°	65.5°	65.5°	65.5°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1193 mm 46.97"	1217 mm 47.91"	1243 mm 48.94"	1269 mm 49.96"
K	Headtube length	90 mm 3.54"	100 mm 3.94"	115 mm 4.53"	130 mm 5.12"
L	Reach	455 mm 17.91"	475 mm 18.70"	495 mm 19.49"	515 mm 20.28"
M	Stack	608 mm 23.94"	617 mm 24.29"	631 mm 24.84"	645 mm 25.39"

Material

Carbon

Front (mm)

150mm

Rear (mm)

130mm

Weight

13.3 kg

THE TRAIL MASTER

Watch video

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.

02 — Forward Geometry

Longer front centre, shorter stem, greater wheelbase. Mondraker's pioneering geometry remains the benchmark for stability and control at speed.

03 — Stealth Carbon

Mondraker's most refined and lightest carbon engineering, with rigidity tuned exactly where the ride needs it.

Dig Deep

Specs, sizing and support for the Mondraker - RAZE CARBON RR SL.

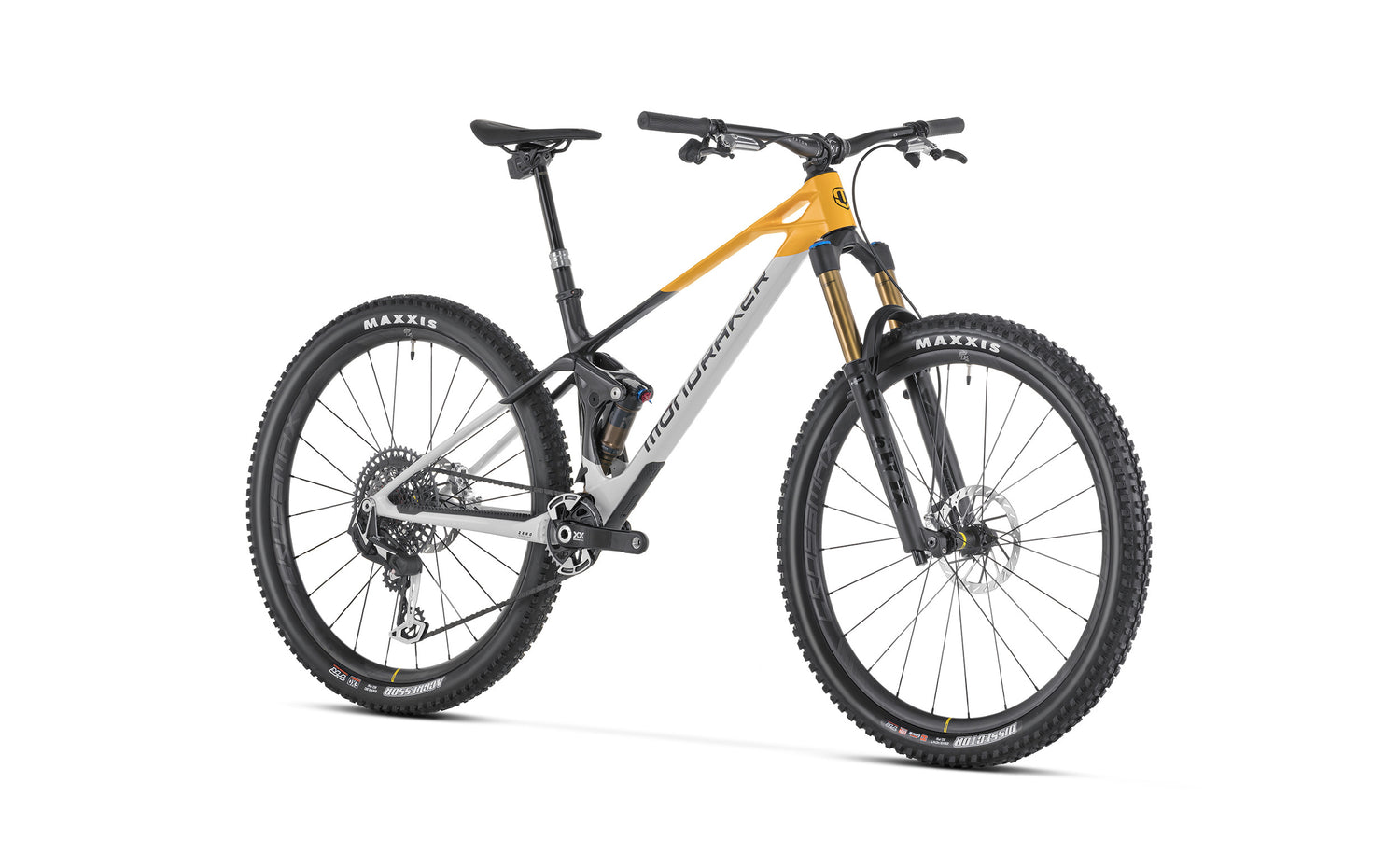

Build Kit & SpecsSee the details

Geometry & SizingCrunch the numbers

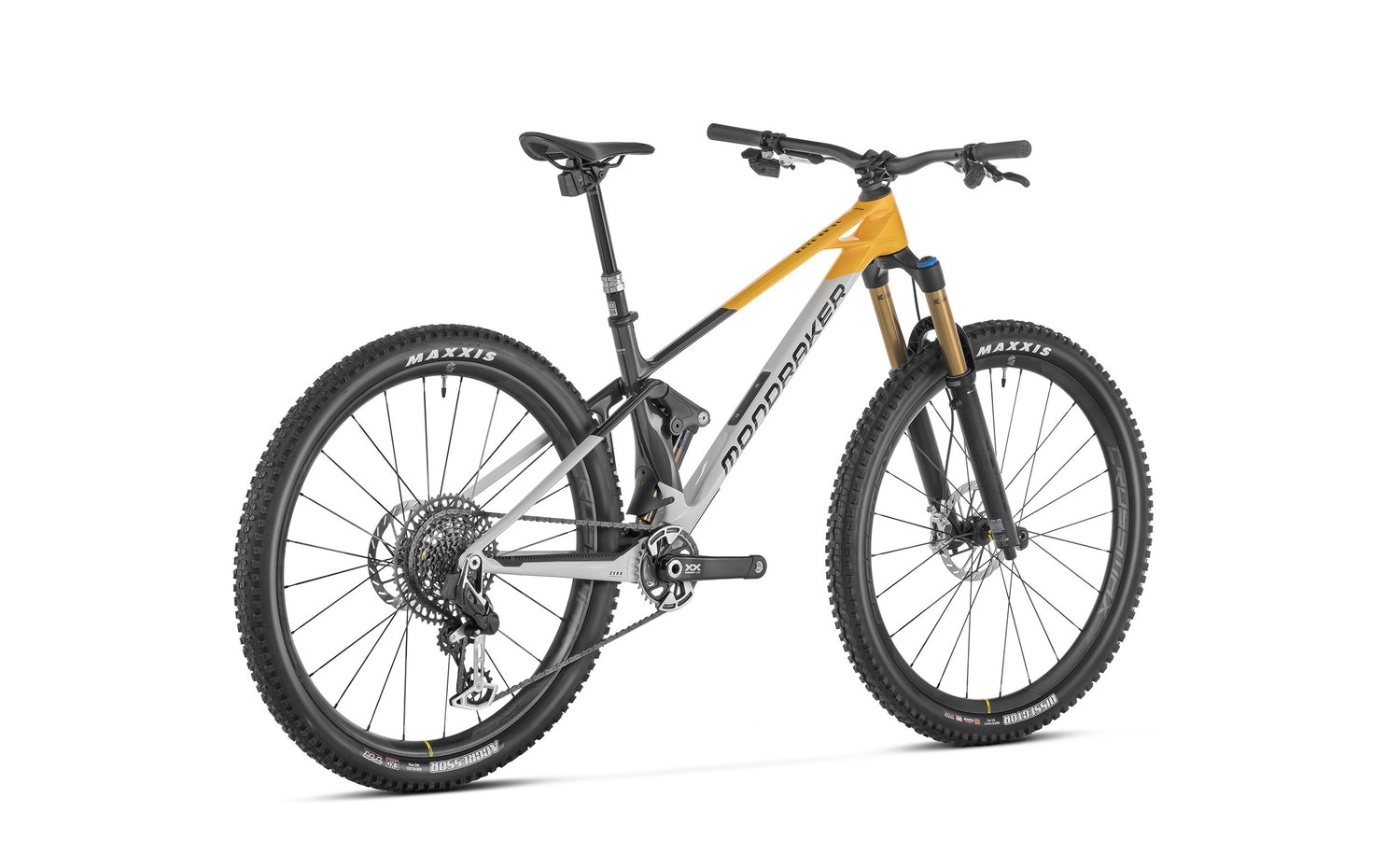

Setup & SupportDial in your bike
