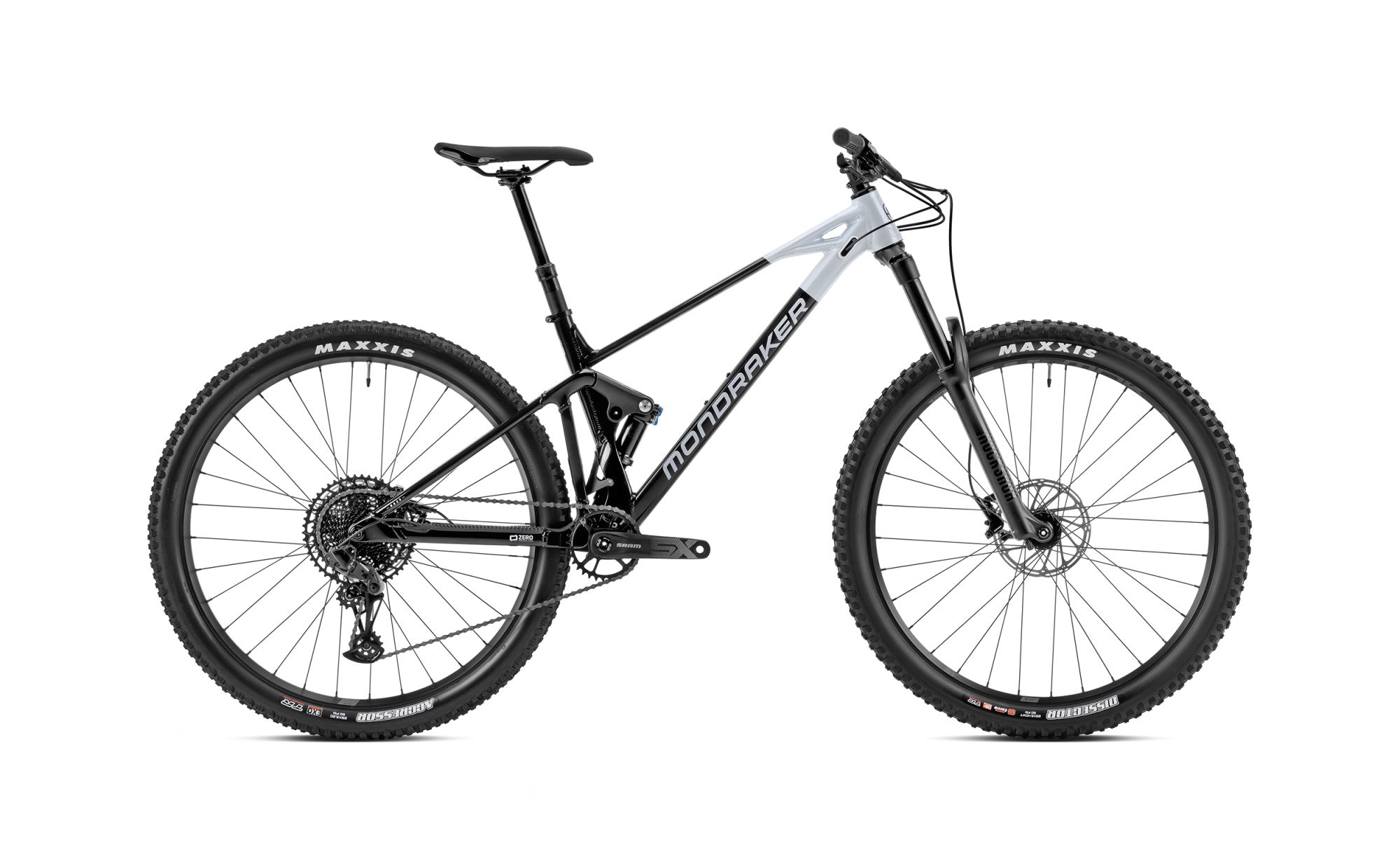

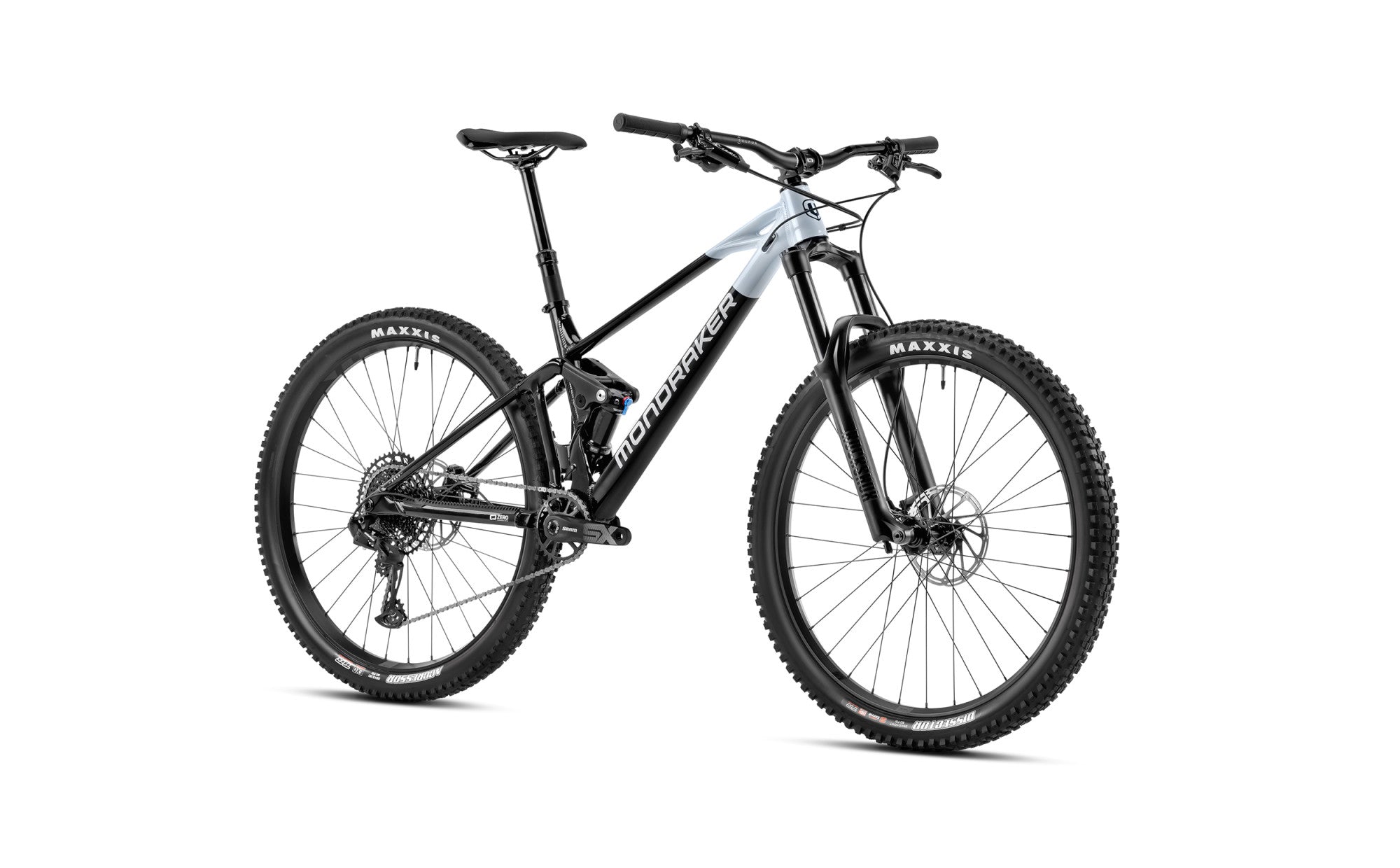

Mondraker - RAZE

€2,999.00 EUR

Frame: Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Fork: RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Rear shock: Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings

Weight: 15,9 kg

See All Specs

Geometry & Size Guide

Size guide

ColorBlack

Frame Size S M L XL

Mondraker - RAZE

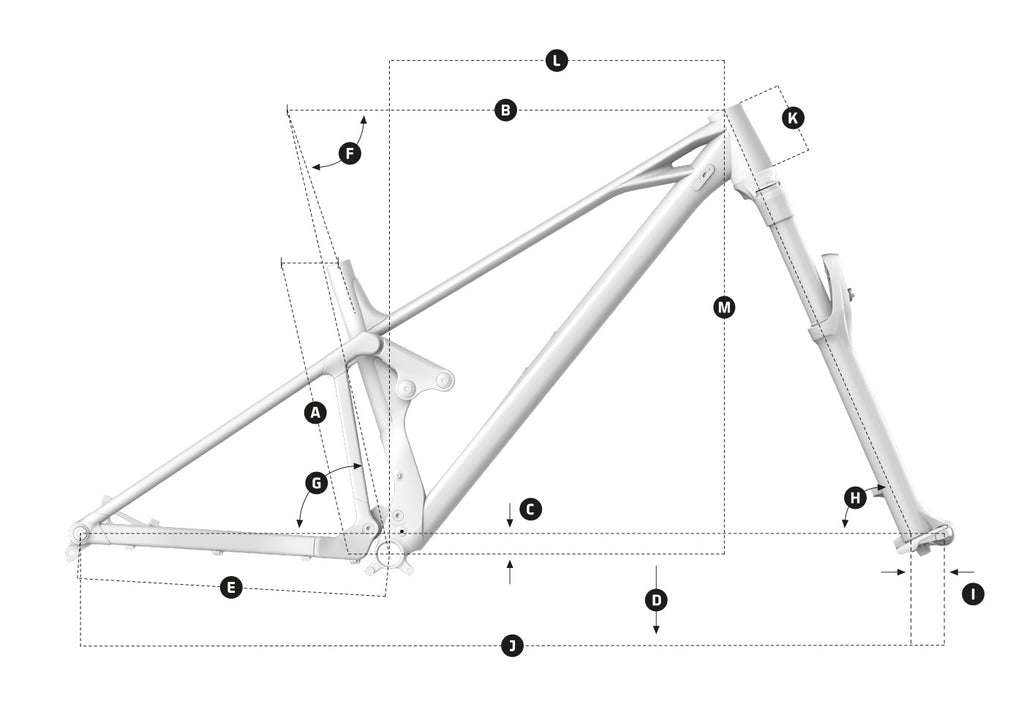

Geometry

	Frame size	S	M	L	XL
A	Seattube length	375 mm 14.76"	415 mm 16.34"	445 mm 17.52"	490 mm 19.29"
B	Toptube length	594 mm 23.39"	614 mm 24.17"	638 mm 25.12"	658 mm 25.91"
C	Bottom bracket drop	-29 mm -1.14"	-29 mm -1.14"	-29 mm -1.14"	-29 mm -1.14"
D	Bottom bracket height	340 mm 13.39"	340 mm 13.39"	340 mm 13.39"	340 mm 13.39"
E	Chainstay length	435 mm 17.13"	435 mm 17.13"	435 mm 17.13"	435 mm 17.13"
F	Seat tube angle	72º	72º	72º	72º
G	Effective seattube angle	76.5º	76.5º	76.5º	76.5º
H	Headtube angle	65.5º	65.5º	65.5º	65.5º
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1197 mm 47.13"	1216 mm 47.87"	1246 mm 49.06"	1266 mm 49.84"
K	Headtube length	100 mm 3.94"	100 mm 3.94"	120 mm 4.72"	120 mm 4.72"
L	Reach	450 mm 17.72"	470 mm 18.50"	490 mm 19.29"	510 mm 20.08"
M	Stack	623 mm 24.53"	623 mm 24.53"	641 mm 25.24"	641 mm 25.24"

Material

Aluminium

Front (mm)

150mm

Rear (mm)

130mm

Weight

15.9 kg

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.
