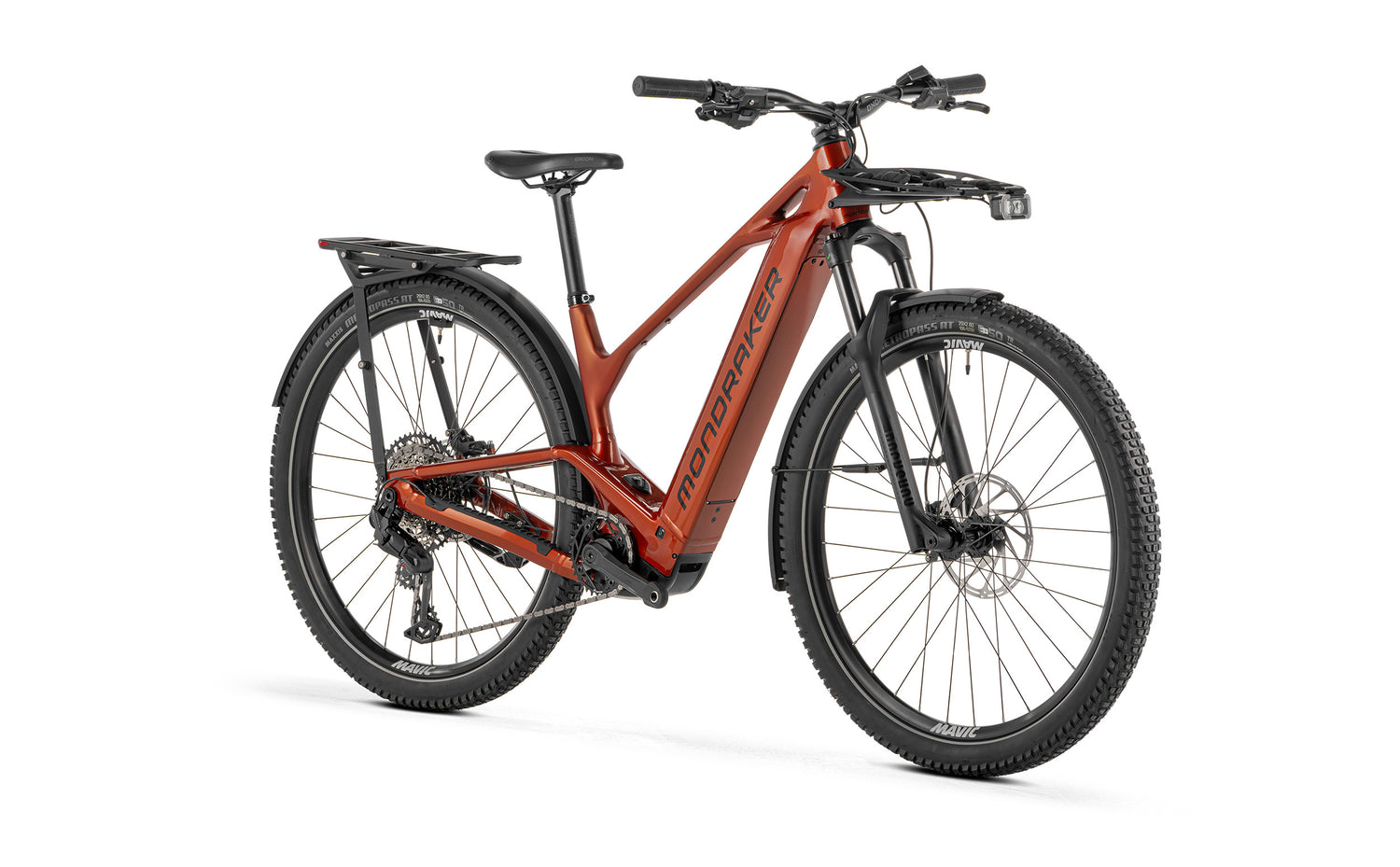

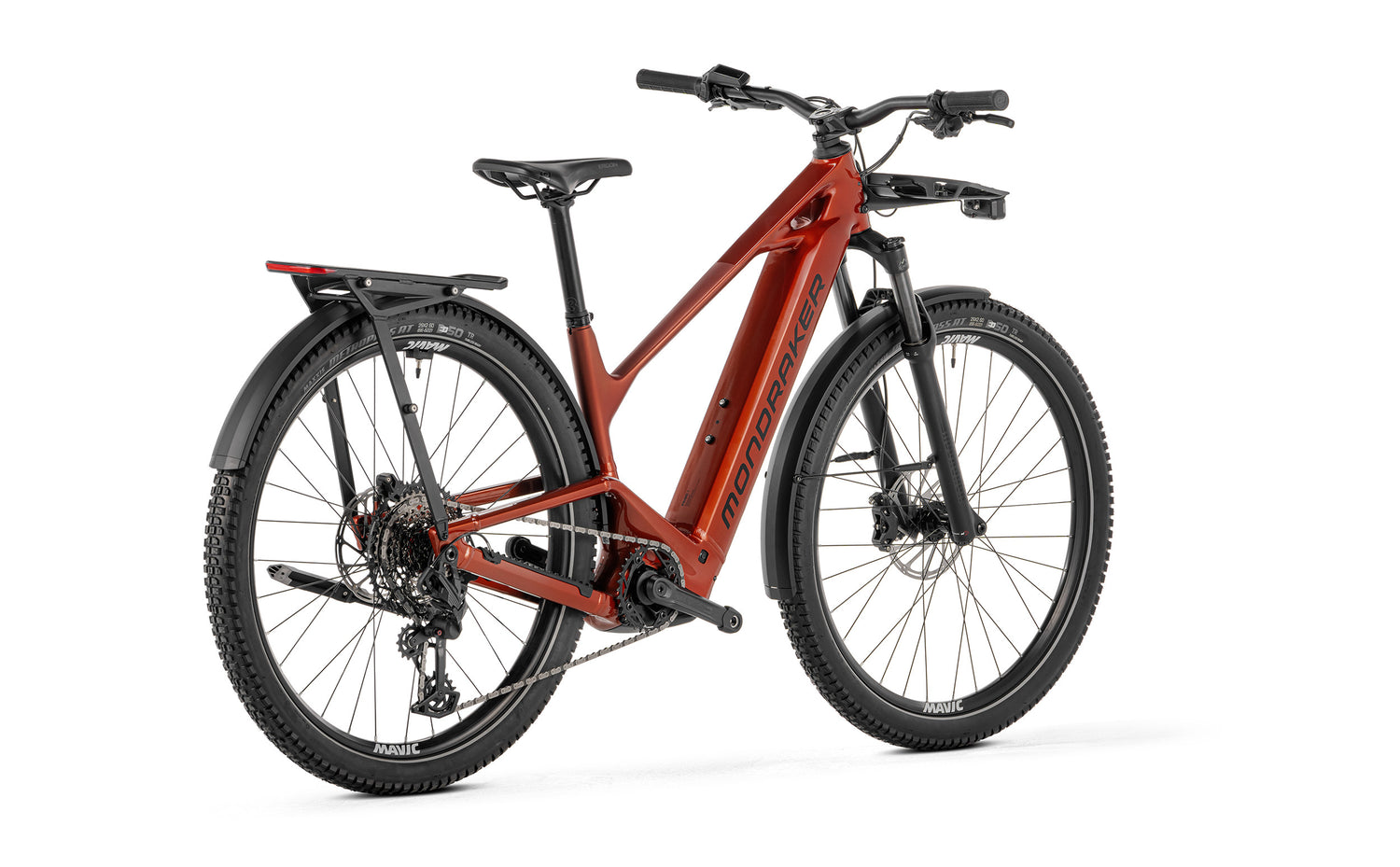

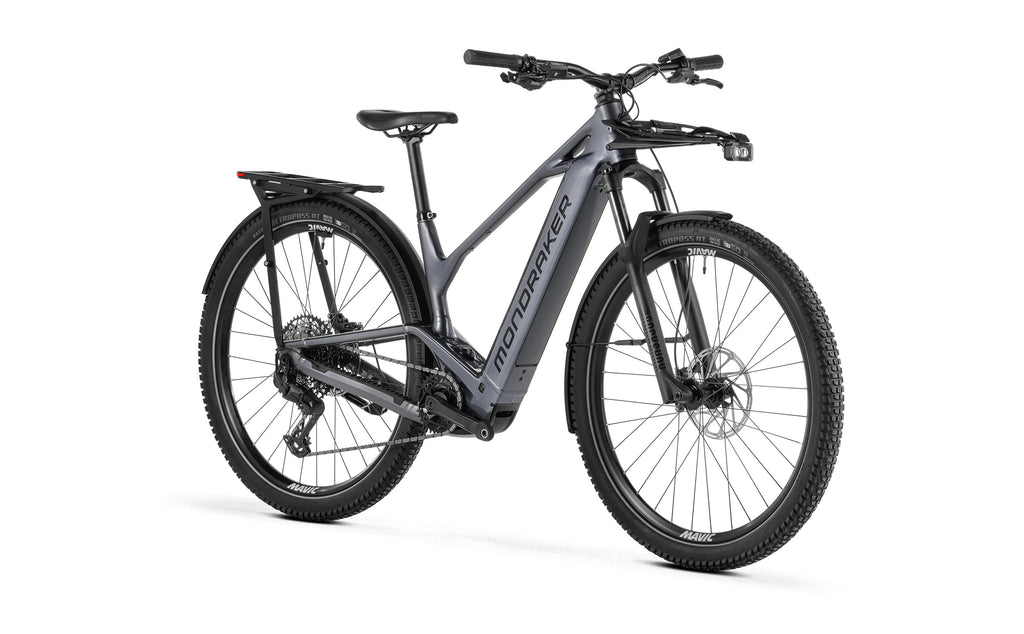

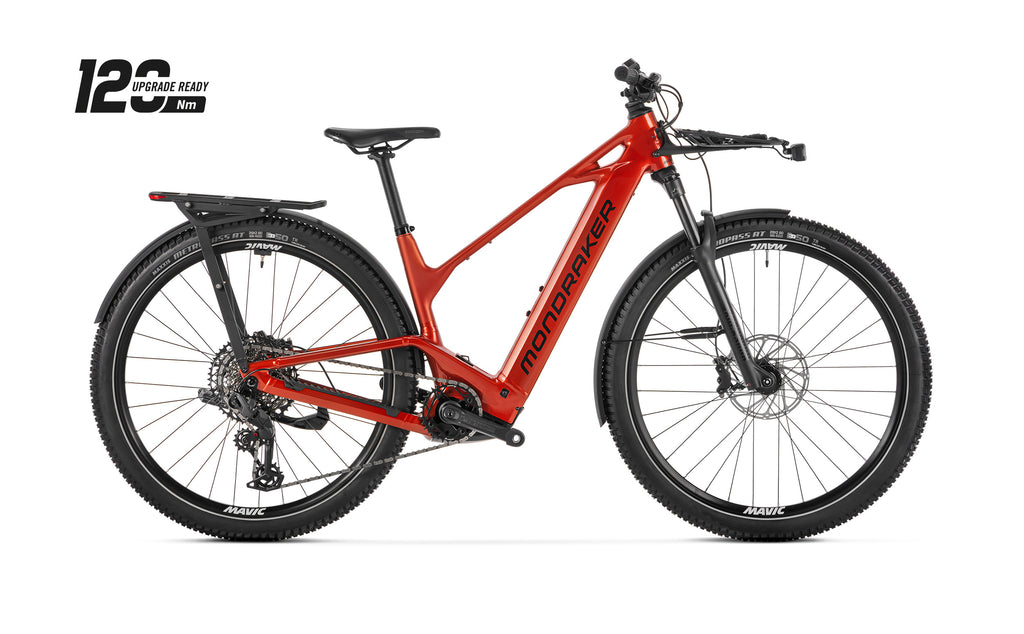

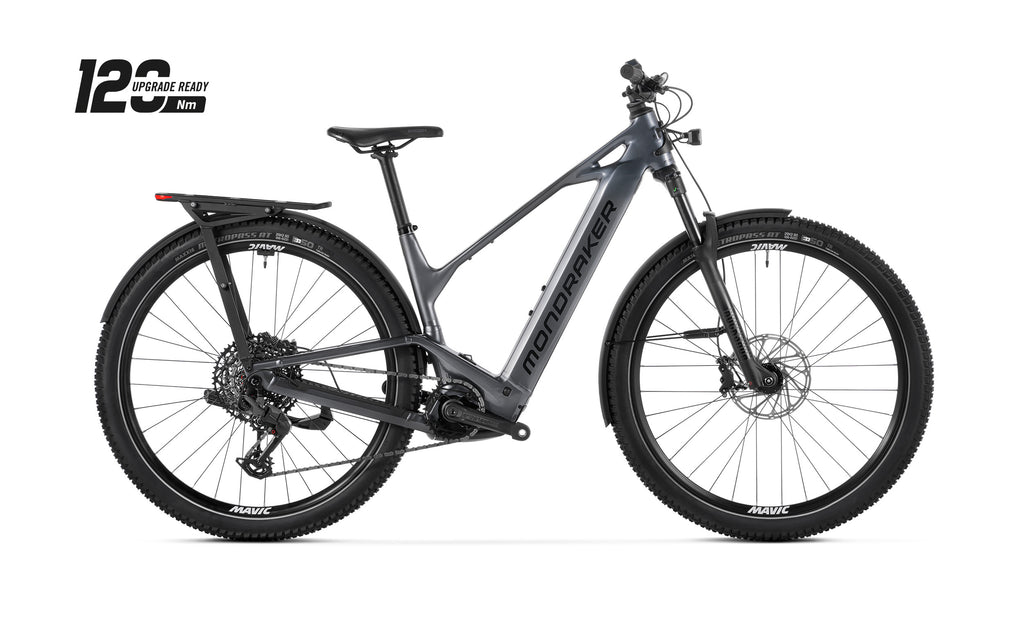

Mondraker - PRIME X

€4,499.00 EUR

Frame: Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, UDH,

Fork: RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh

Weight: 26,9 kg

See All Specs

Geometry & Size Guide

Size guide

Color Graphite Grey Earth Red

Frame Size S M ML L XL

Mondraker - PRIME X

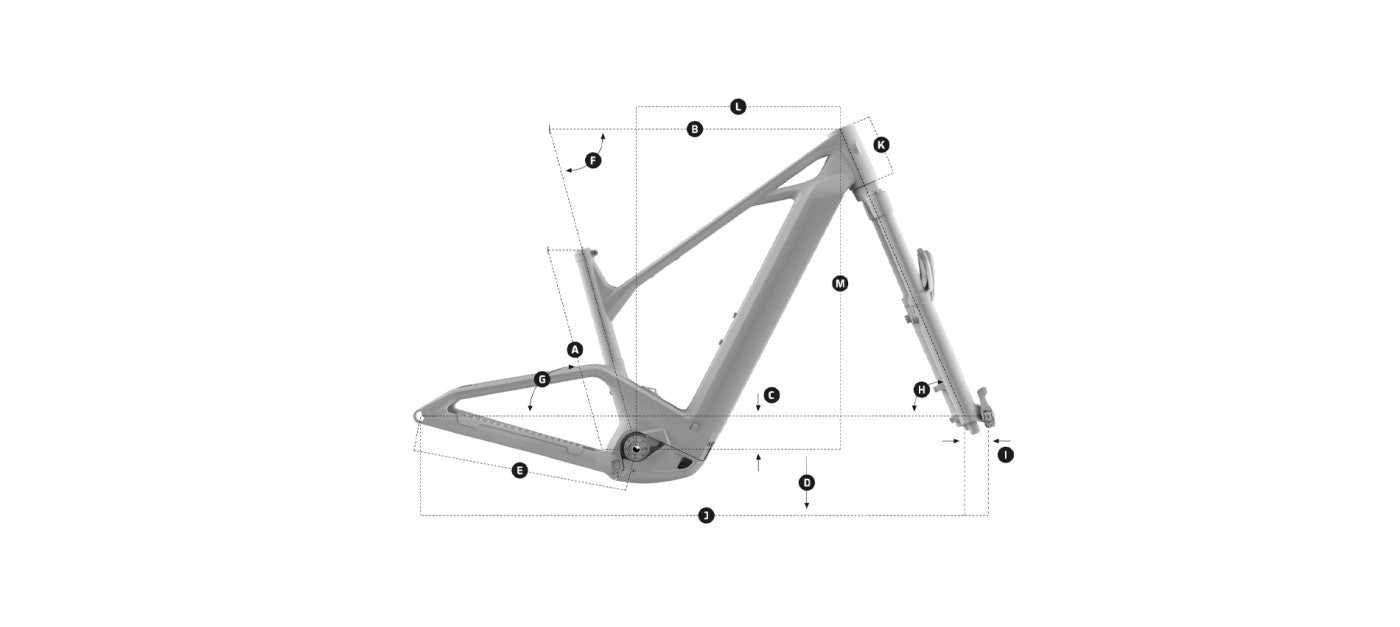

Geometry

	Frame size	S	M	M/L	L	XL
A	Seattube length	370 mm 14.57"	390 mm 15.35"	430 mm 16.93"	470 mm 18.50"	510 mm 20.08"
B	Toptube length	570.7 mm 22.47"	588.3 mm 23.16"	618.3 mm 24.34"	645.9 mm 25.43"	673.4 mm 26.51"
C	Bottom bracket drop	-70 mm -2.76"	-70 mm -2.76"	-70 mm -2.76"	-70 mm -2.76"	-70 mm -2.76"
D	Bottom bracket height	308 mm 12.13"	308 mm 12.13"	308 mm 12.13"	308 mm 12.13"	308 mm 12.13"
E	Chainstay length	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"
F	Seat tube angle	74.5º	74.5º	74.5º	74.5º	74.5º
G	Effective seattube angle	74.5º	74.5º	74.5º	74.5º	74.5º
H	Headtube angle	68º	68º	68º	68º	68º
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1124.3 mm 44.26"	1143 mm 45.00"	1173 mm 46.18"	1201.8 mm 47.31"	1230.4 mm 48.44"
K	Headtube length	120 mm 4.72"	130 mm 5.12"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	385 mm 15.16"	400 mm 15.75"	430 mm 16.93"	455 mm 17.91"	480 mm 18.90"
M	Stack	669.6 mm 26.36"	678.9 mm 26.73"	678.9 mm 26.73"	688.2 mm 27.09"	697.5 mm 27.46"

Material

Aluminium

Front (mm)

120mm

Motor

Bosch

Battery

800Wh

Weight

26.9 kg

WHEN THE BIG CITY DEMANDS BIGGER PERFORMANCE

Specifically designed for the urban environment

Prime X is built using the same high-performance Stealth Alloy technology as the off-road capable Prime but the frame has been modified with features to include aluminium racks, kickstand, front and rear, integrated lights and mudguards specifically for urban environments and the demands of city riding.
