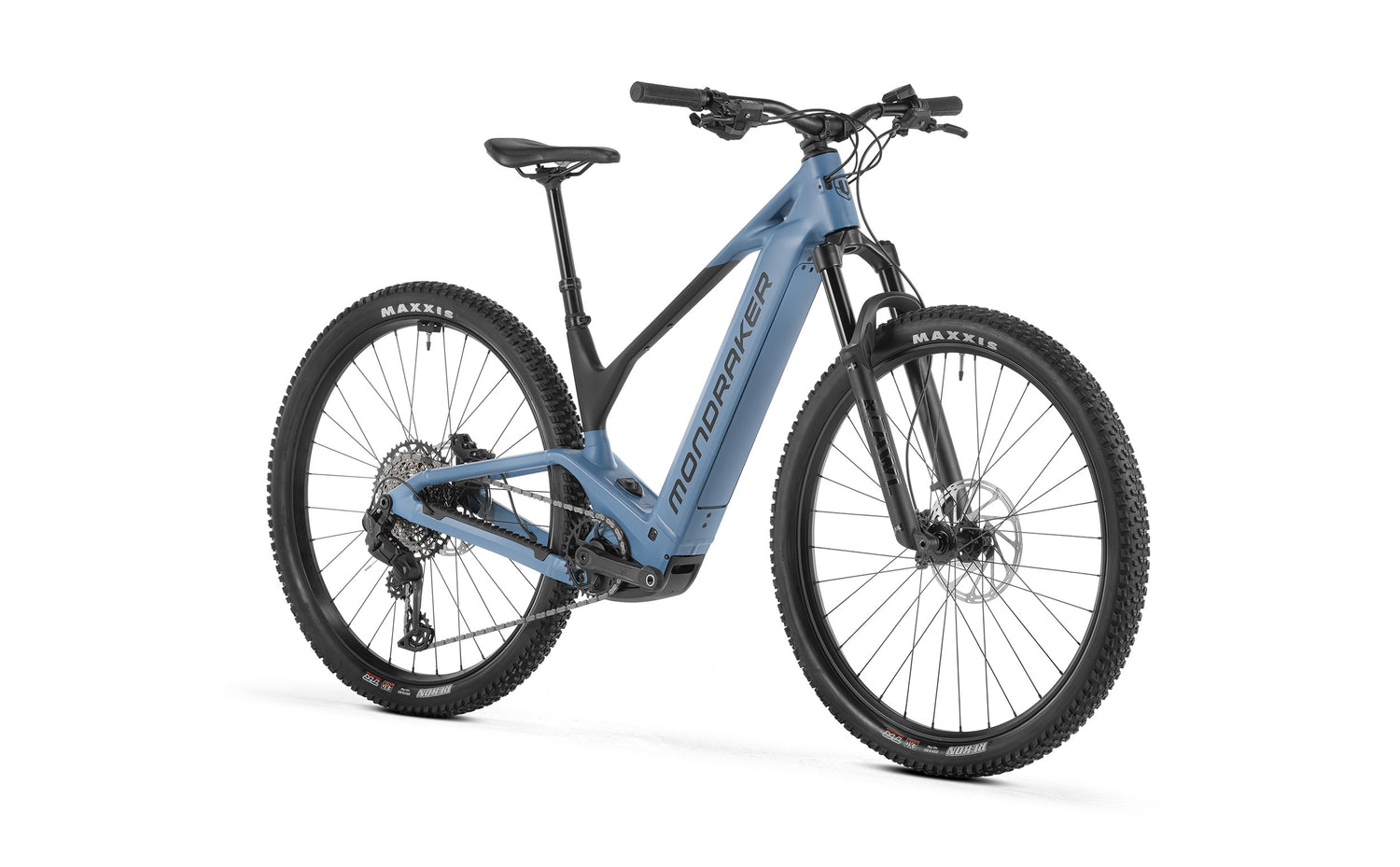

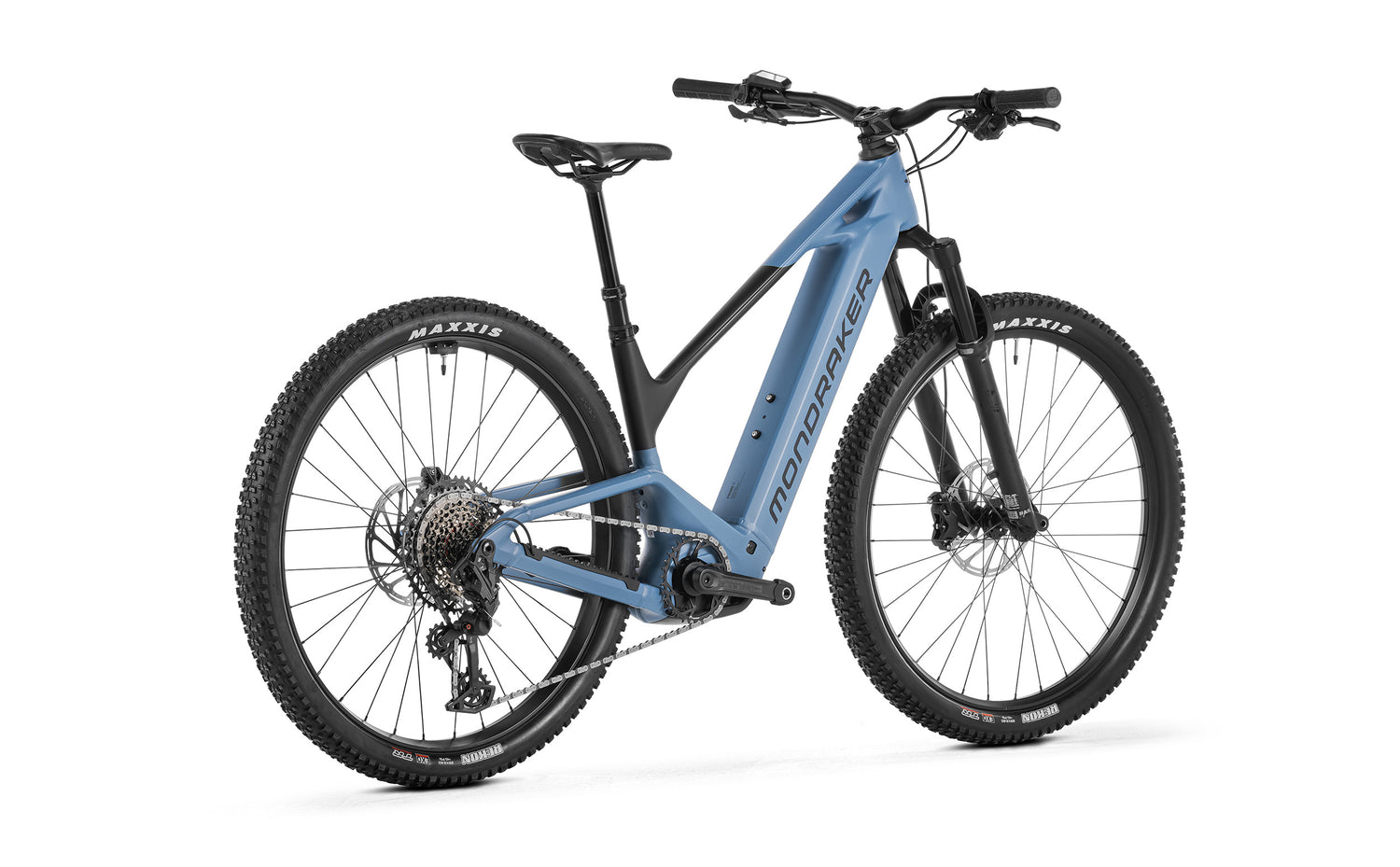

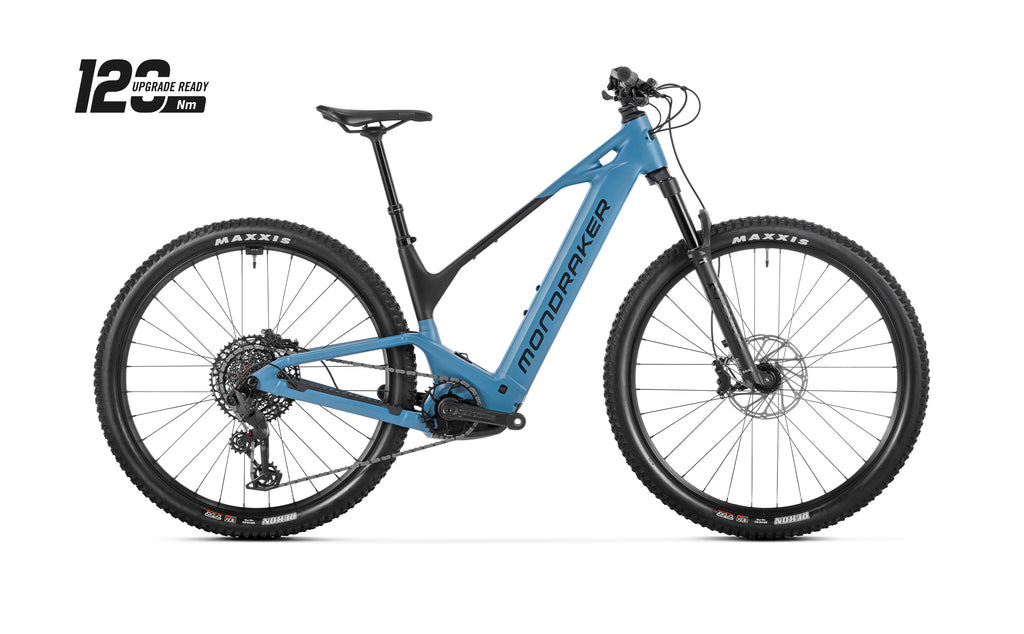

Mondraker - PRIME R

€4,599.00 EUR

Frame: Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, UDH,

Fork: Fox 29 AWL Sport, 120mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: Rail Damper with rebound adjust

Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh

Weight: 23,5 kg

ColorDenim Blue

Frame Size S M ML L XL

Mondraker - PRIME R

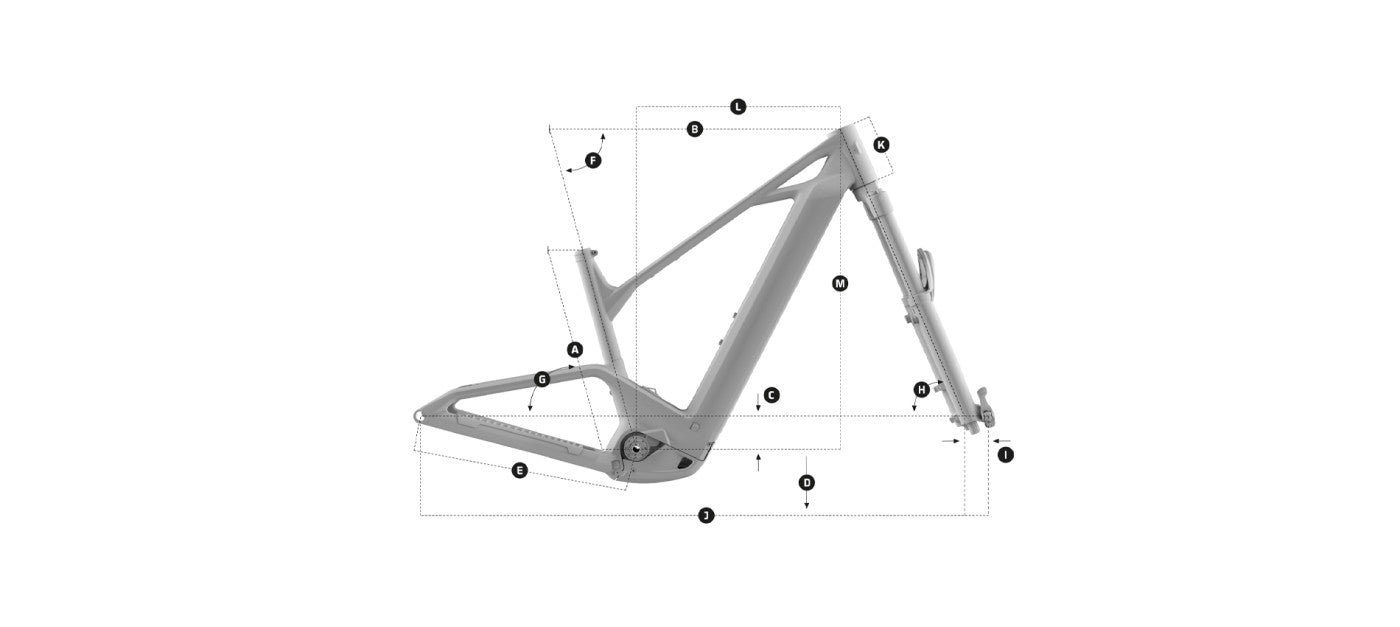

Geometry

	Frame size	S	M	M/L	L	XL
A	Seattube length	370 mm 14.57"	400 mm 15.75"	430 mm 16.93"	470 mm 18.50"	510 mm 20.08"
B	Toptube length	570.7 mm 22.47"	588.3 mm 23.16"	616.8 mm 24.28"	645.9 mm 25.43"	673.4 mm 26.51"
C	Bottom bracket drop	-70 mm -2.76"	-70 mm -2.76"	-70 mm -2.76"	-70 mm -2.76"	-70 mm -2.76"
D	Bottom bracket height	308 mm 12.13"	308 mm 12.13"	308 mm 12.13"	308 mm 12.13"	308 mm 12.13"
E	Chainstay length	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"	455 mm 17.91"
F	Seat tube angle	74.5º	74.5º	74.5º	74.5º	74.5º
G	Effective seattube angle	74.5º	74.5º	74.5º	74.5º	74.5º
H	Headtube angle	67º	67º	67º	67º	67º
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1156.7 mm 45.54"	1176.7 mm 46.33"	1183.6 mm 46.60"	1232.5 mm 48.52"	1261.5 mm 49.67"
K	Headtube length	120 mm 4.72"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	405 mm 15.94"	425 mm 16.73"	450 mm 17.72"	475 mm 18.70"	500 mm 19.69"
M	Stack	669.1 mm 26.34"	669.1 mm 26.34"	673.7 mm 26.52"	682.9 mm 26.89"	692.1 mm 27.25"
