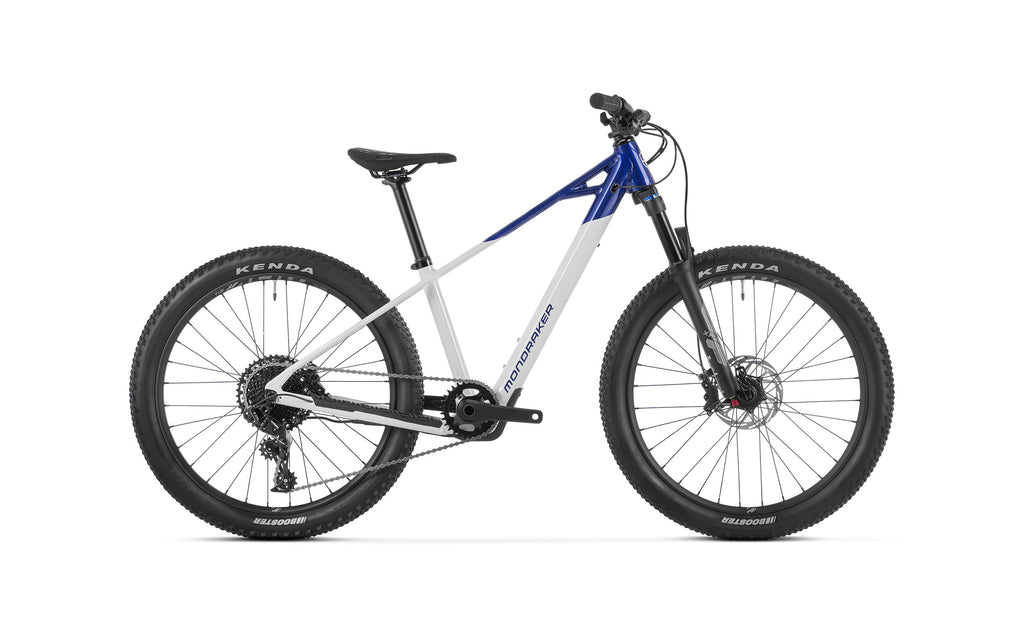

Mondraker PLAY 24

Mondraker - PLAY 24

Optic White / One Size
€2,899.00 EUR
€2,899.00 EUR
Skip to product information
Mondraker PLAY 24
  • Mondraker PLAY 24
  • Mondraker PLAY 24
Mondraker - PLAY 24

Home › Mondraker

Mondraker - PLAY 24

€2,899.00 EUR
€2,899.00 EUR

Frame: Play 24 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible

Fork: X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Motor: Mahle-Ebikemotion X-35

Battery: Mahle-Ebikemotion Internal 250Wh

Weight: 15,1 kg

See All Specs

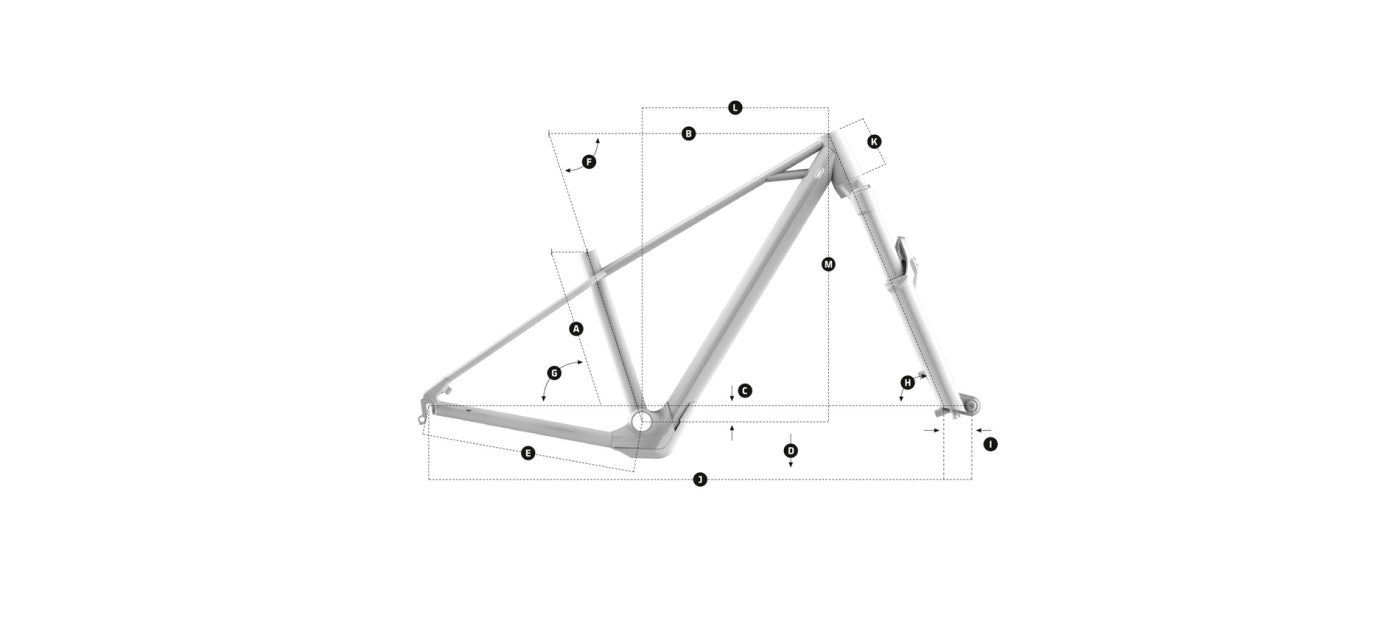

Geometry & Size Guide
Size guide
ColorOptic White
Frame SizeOne Size

Material

Aluminium

Front (mm)

100mm

Motor

Mahle-Ebikemotion

Battery

250Wh

Weight

15.1 kg

FUN WITH THE PLAY!

Just like the Trick, the Play has inherited the aesthetics and the performance of our adults’ bikes while throwing open the doors on a world of emotions and opportunities you only get on an ebike. We take our mountain biking very seriously, and any ebike worth its salt, regardless of whether it’s for kids or adults, needs power and range and perhaps most of all it must instil confidence. That’s what we kept in mind while designing the Play.

The new Play range comes with either 20”, 24” or 26” wheels and is the next step up in our ebike range from the 12” and 16” versions of the Grommy. The Play 20” is perfect for kids from 6 to 8 years old (120cm-135cm), the Play 24” from 8 to 11 (135cm-155cm) and the Play 26” for kids between 10 and 14 years old (145cm-165cm).

All the new Plays come with a totally new frame, and as with the Trick and F-Trick they’ve inherited the aesthetics and design language of our new adult NEAT and F-PODIUM ranges.

The new frame design, incorporating straight lines, minimalistic tube profiles, and the characteristic Mondraker headtube-toptube-downtube interface, lends itself to having the battery very low down in the downtube thus lowering the centre of gravity and increasing stability and agility. That in turn has allowed us to tweak our Forward Geometry, improving the position of the rider and providing greater control when faced with tricky terrain, and increasing rider confidence overall. All three models use frames built with our Alloy Stealth Evo.

POWER AND CONTROL WITH THE MAHLE X35

At Mondraker we’re firm believers in the Mahle X35 motor and battery system. It comes with a 250Wh removable internal battery, 40Nm of torque and a 25km/h maximum assisted speed, and all three modes of assistance can be tuned via Mahle’s MySmartbike app.

SPECCED OUT TO BE A TRAIL KILLER

The new Play range comes with all-new frames, new geometry, and new specs that give the bikes a very definite identity. All three models come with 2.4” tyres (the same as the adult ranges) to improve grip, comfort and confidence, and to allow you to run lower tyre pressures with all the advantages that brings. The redesigned Forward Geometry allows for 30mm stems which give snappy but stable handling, and the frames come with HHG internal cable guiding and are prepared to run dropper posts if you feel the need.

Mondraker Technology

The engineering behind every Mondraker.
Forward Geometry

01 — Forward Geometry

Longer front centre, shorter stem, greater wheelbase. Mondraker's pioneering geometry remains the benchmark for stability and control at speed.

Stealth Alloy

02 — Stealth Alloy

The most advanced industrial design and structural optimisation in the alloy range — Stealth design language with aluminium toughness.

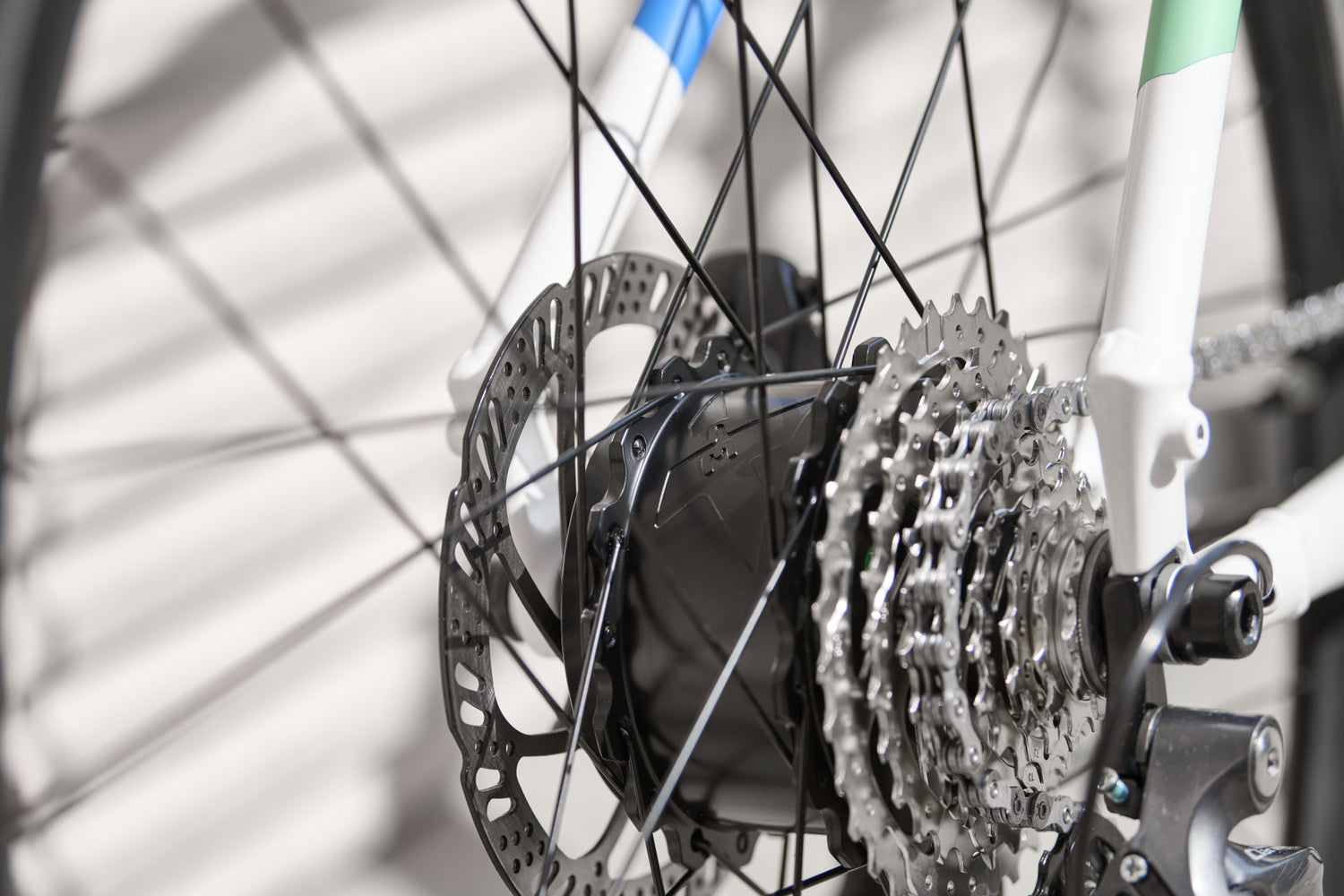

MAHLE Drive System

03 — MAHLE Drive System

Lightweight MAHLE drive with natural, intuitive assistance — e-bike power kept simple and manageable for young riders.

Dig Deep

Specs, sizing and support for the Mondraker - PLAY 24.
Build Kit & Specs
Build Kit & SpecsSee the detailsGeometry & Sizing
Geometry & SizingCrunch the numbersSetup & Support
Setup & SupportDial in your bike

Other Builds
