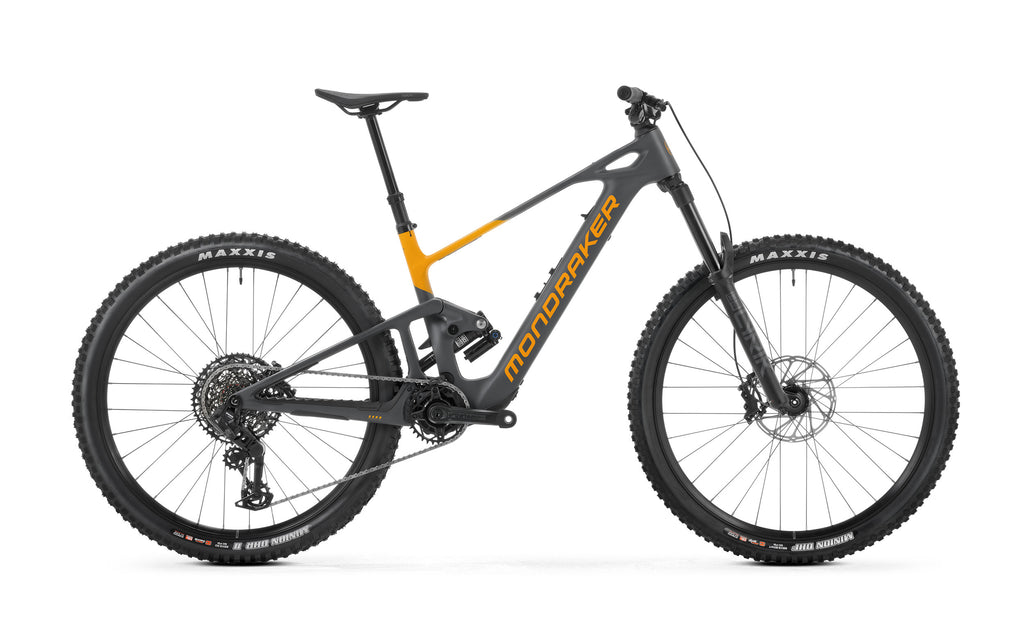

Mondraker - NEAT R

€8,499.00 EUR

Frame: Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Fork: RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload

Rear shock: Rock Shox Super Deluxe Select, 185x55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

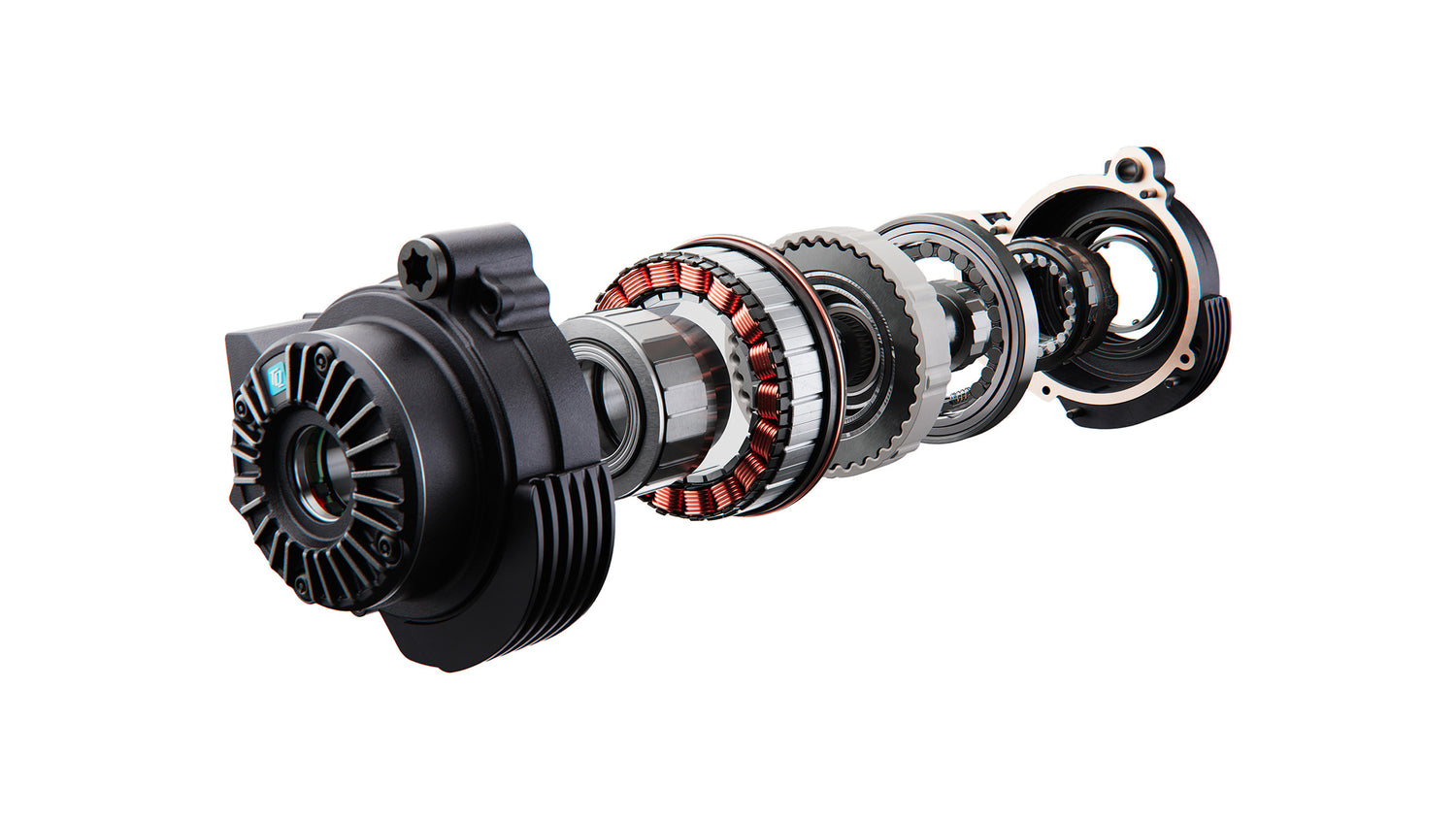

Motor: TQ HPR-50

Battery: TQ HPR-50 360Wh integrated and removable

Weight: 18,9 kg

See All Specs

Geometry & Size Guide

Size guide

ColorObsidian Grey

Frame Size S M L XL

Mondraker - NEAT R

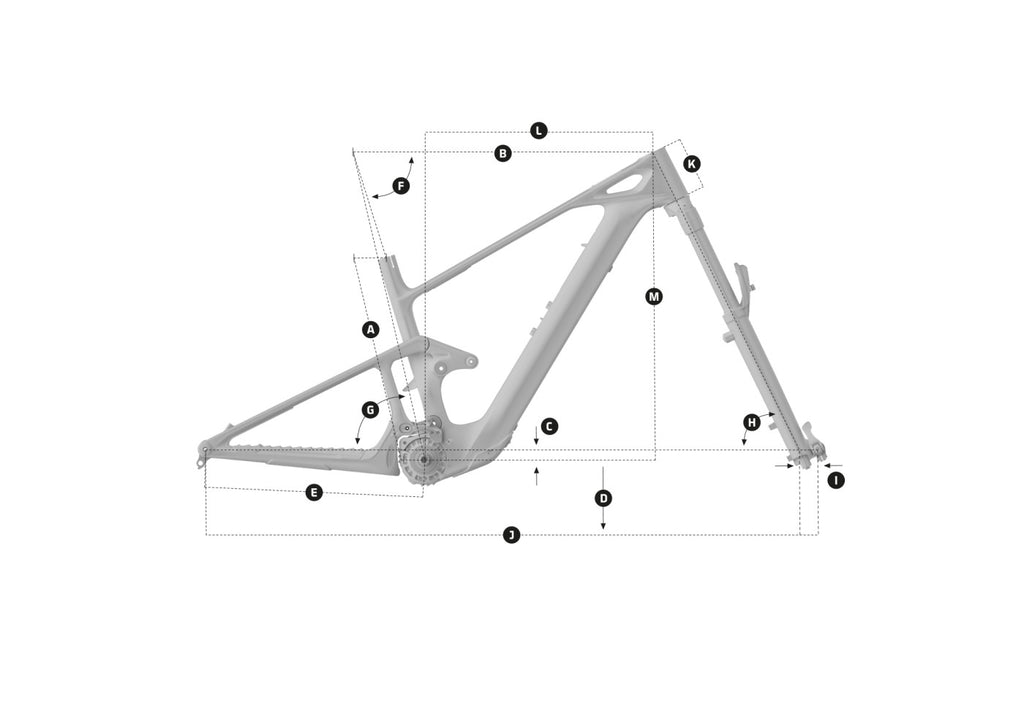

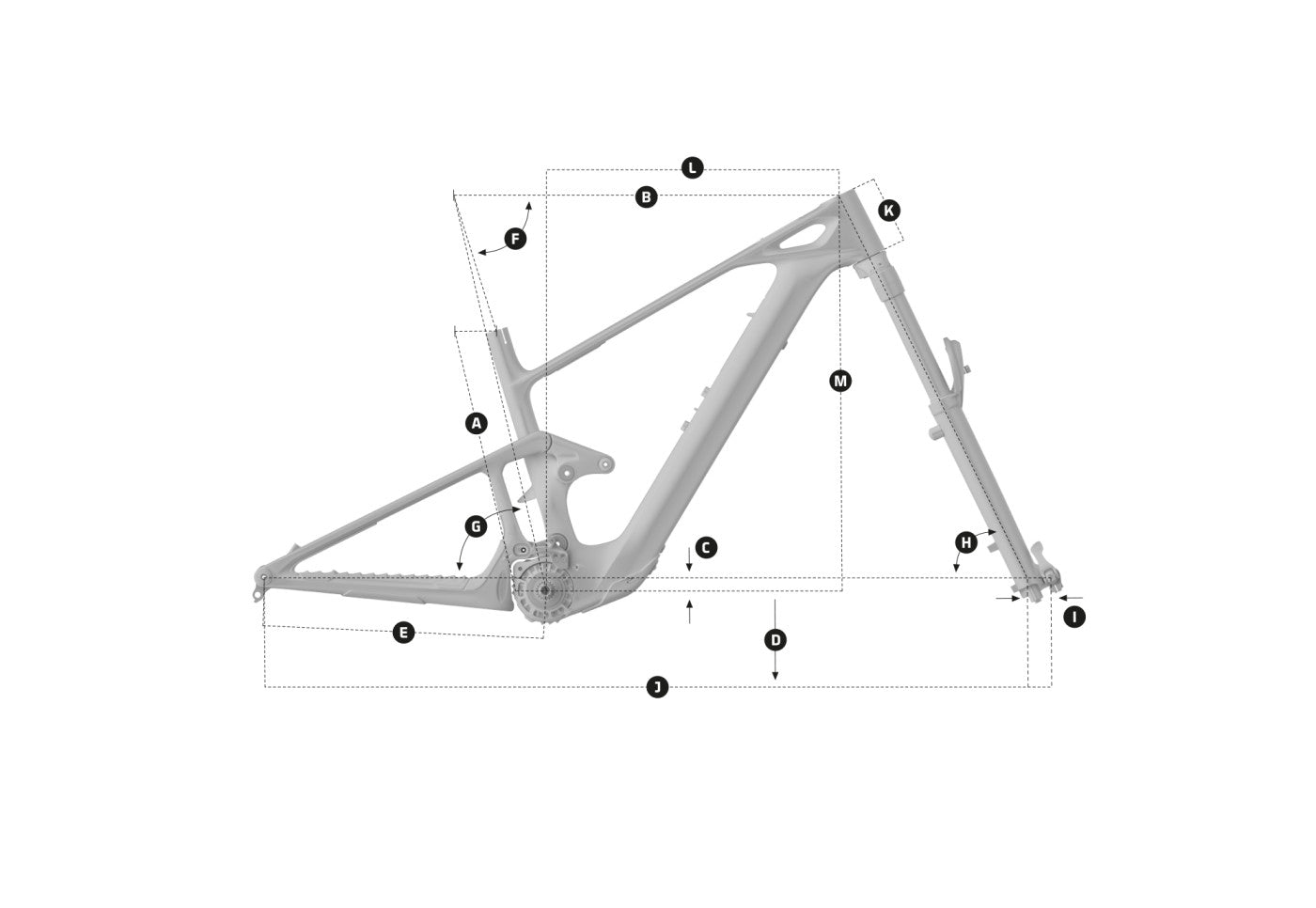

Geometry

	Frame size	S	M	L	XL
A	Seattube length	380mm 14.96"	420mm 16.54"	450mm 17.72"	490mm 19.29"
B	Toptube length	595mm 23.43"	615mm 24.21"	640mm 25.20"	660mm 25.98"
C	Bottom bracket drop	-25mm -0.98"	-25mm -0.98"	-25mm -0.98"	-25mm -0.98"
D	Bottom bracket height	348mm 13.70"	348mm 13.70"	348mm 13.70"	348mm 13.70"
E	Chainstay length	450mm 17.72"	450mm 17.72"	450mm 17.72"	450mm 17.72"
F	Seat tube angle	72,6º	72,6º	72,6º	72,6º
G	Effective seattube angle	76.5°	76.5°	76.5°	76.5°
H	Headtube angle	64.5º	64.5º	64.5º	64.5º
I	Fork Offset	44mm 1.73"	44mm 1.73"	44mm 1.73"	44mm 1.73"
J	Wheelbase	1235mm 48.62"	1255mm 49.41"	1275mm 50.20"	1295mm 50.98"
K	Headtube length	110mm 4.33"	110mm 4.33"	130mm 5.12"	140mm 5.51"
L	Reach	450mm 17.72"	470mm 18.50"	495mm 19.49"	515mm 20.28"
M	Stack	626mm 24.65"	626mm 24.65"	642mm 25.28"	650 mm 25.59"

Material

Carbon

Front (mm)

160mm

Rear (mm)

150mm

Motor

TQ

Battery

360Wh

Weight

18.9 kg

TWO RIDERS – TWO BIKES – ONE SPIRIT

Some stories don’t start with a map. They start with a glance, a nod, and a firm handshake. That’s simply what we Austrians are like. We are both, two seasoned riders from different worlds— Daniel shaped by race tape and podiums – Lukas by alpine trails and bike parks. We came together not for a destination, but for a journey. Not for victory, but for the quiet glory of the ride itself. Little did we know, these memories will last for a lifetime.

Watch video

NEAT RR

The intermediate model in the range is the NEAT RR, with a Fox 36 29 Float GRIP2 Factory Kashima fork, SRAM GX Eagle AXS transmission, SRAM Level Bronze Stealth brakes, Fox Transfer Factory Kashima seatpost and Mavic E-DeeMax SL 29 wheels.

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.
