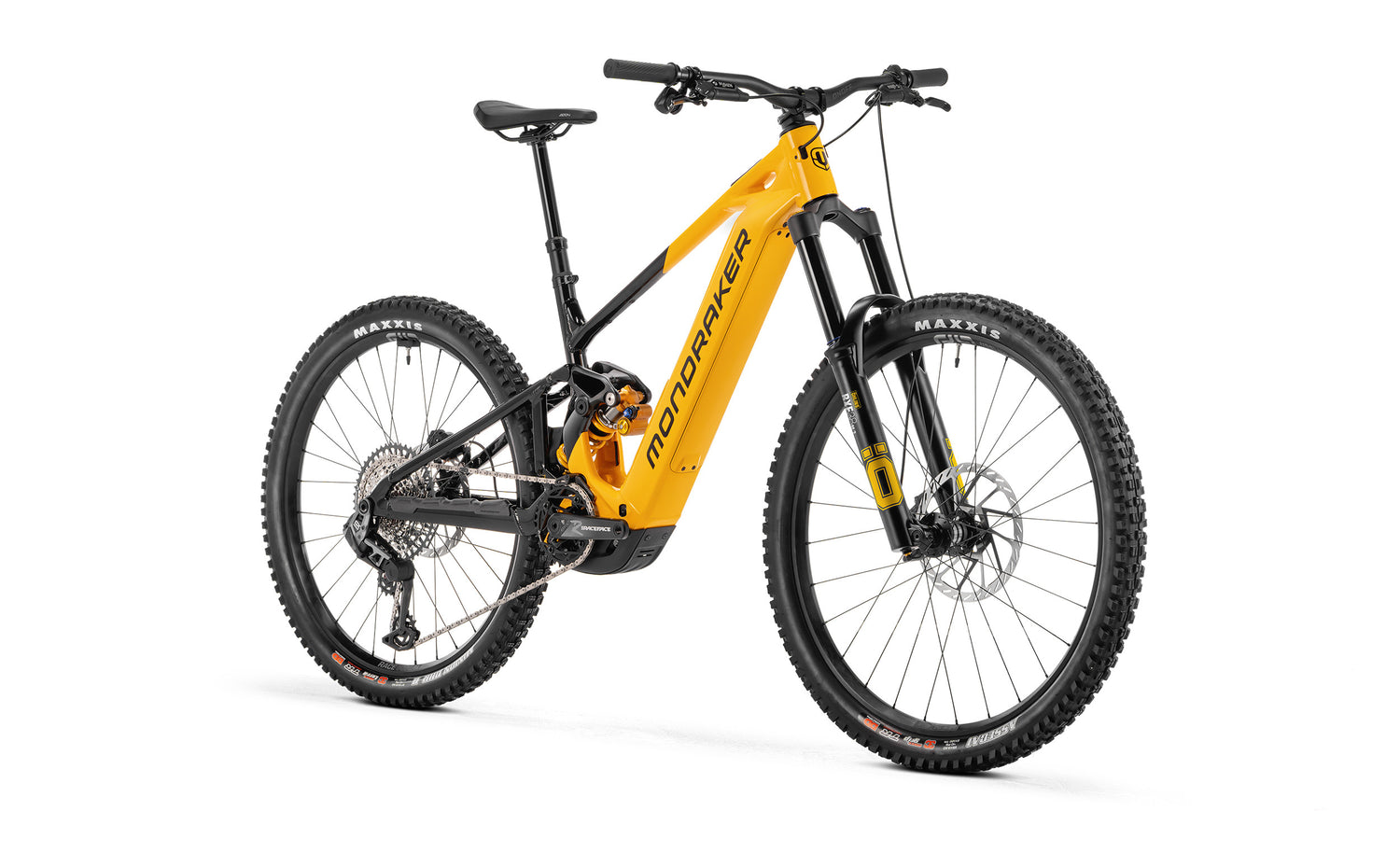

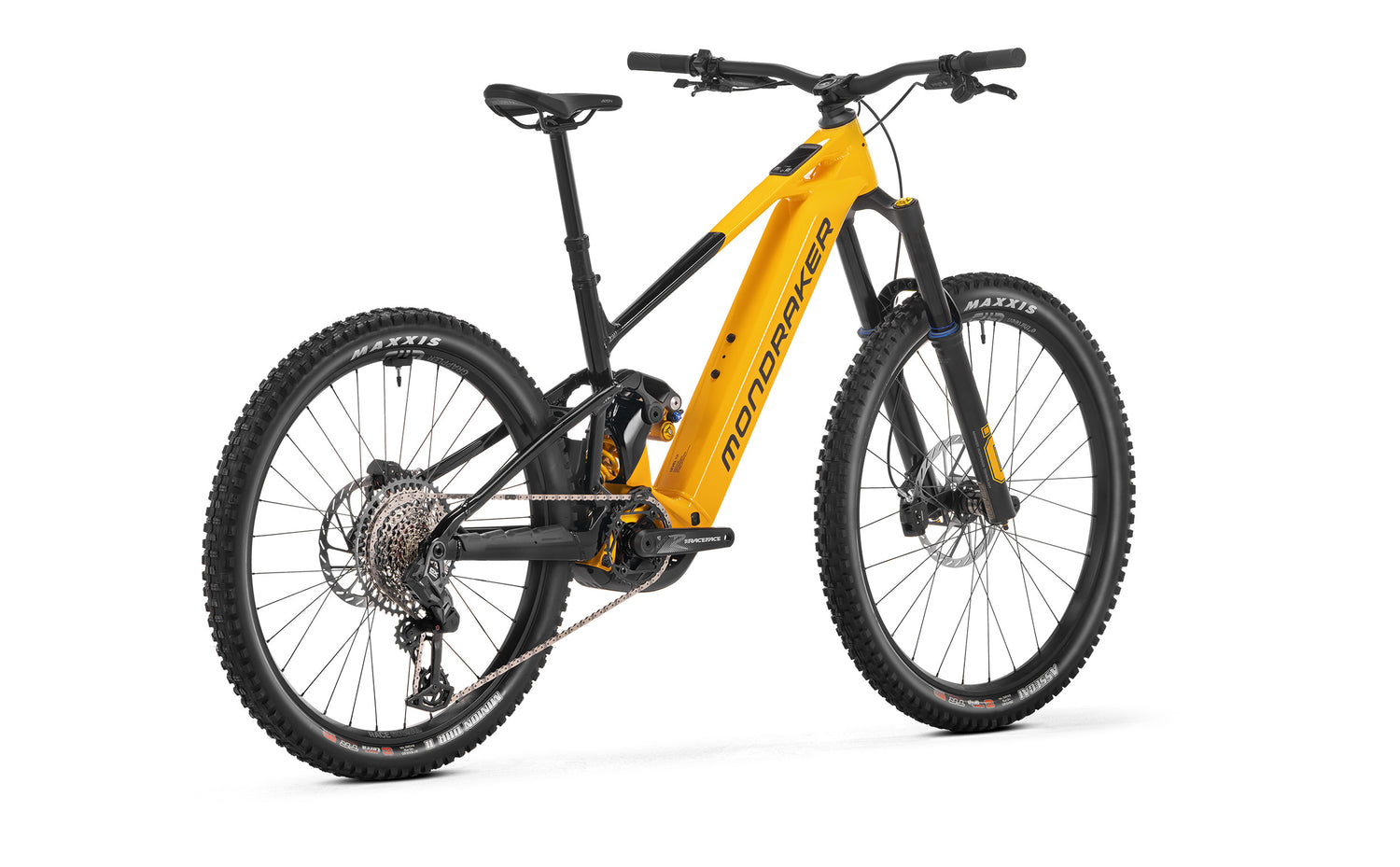

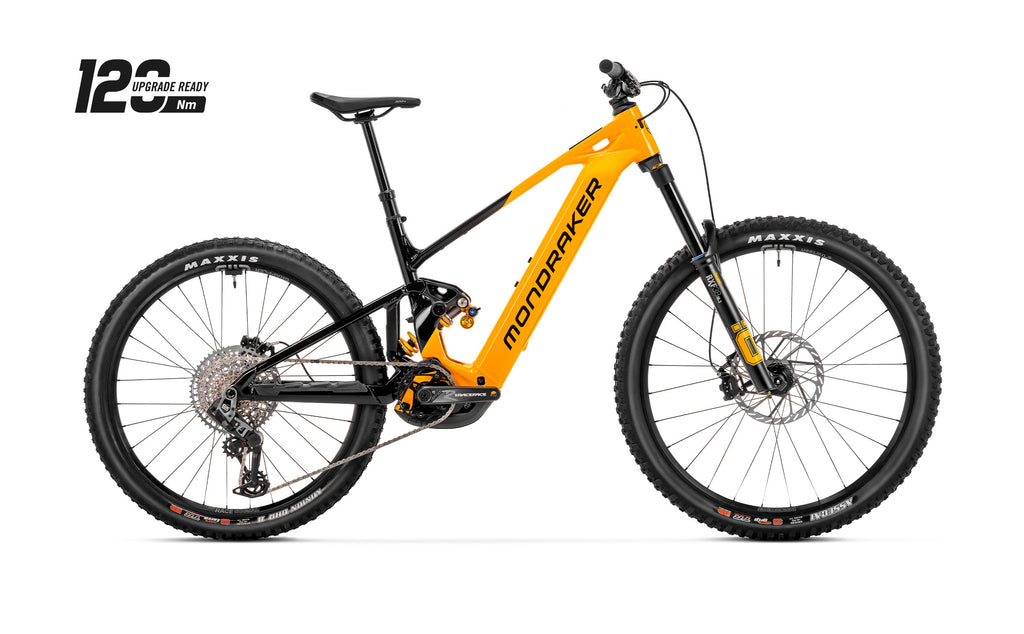

Mondraker - LEVEL XR

€9,999.00 EUR

Frame: Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

Fork: Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Rear shock: Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh

Weight: 25,9 kg

See All Specs

Geometry & Size Guide

Size guide

ColorDense Yellow

Frame Size S M ML L XL

Mondraker - LEVEL XR

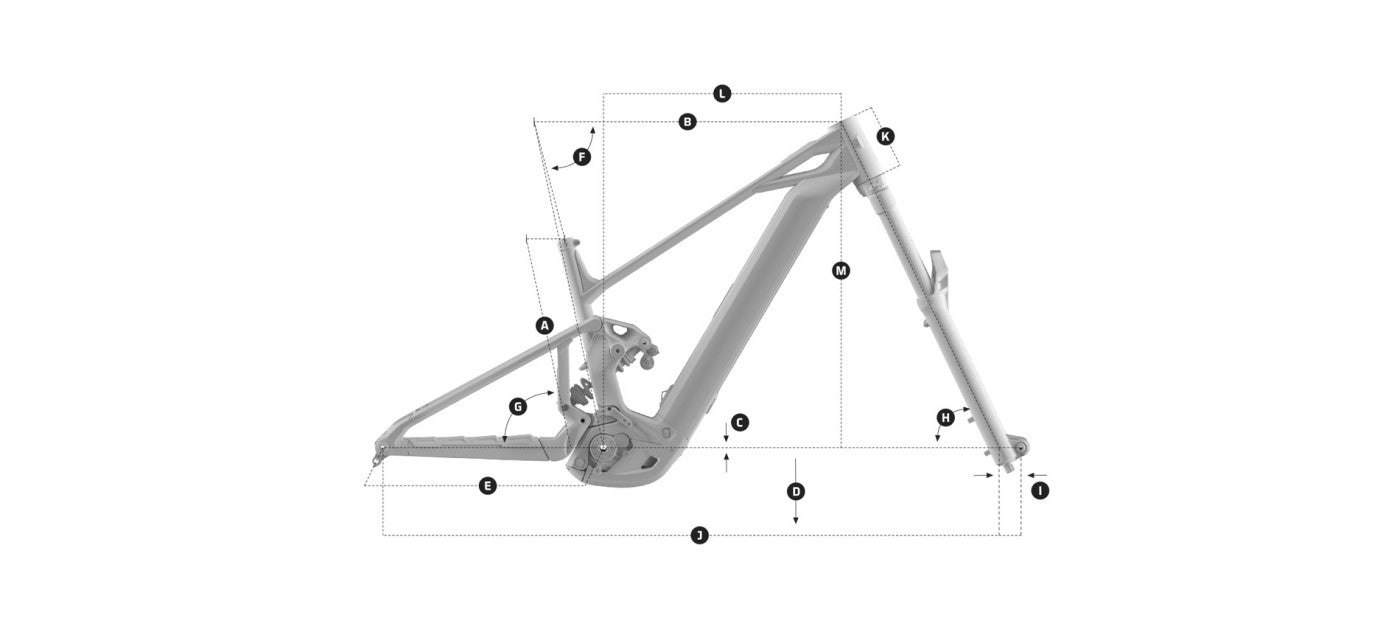

Geometry

	Frame size	S	M	M/L	L	XL
A	Seattube length	380 mm 14.96"	410 mm 16.14"	435 mm 17.13"	460 mm 18.11"	490 mm 19.29"
B	Toptube length	576 mm / 577 mm 22.68"	598 mm / 599 mm 23.54"	620 mm / 621 mm 24.41"	642 mm 25.28"	664 mm / 665 mm 26.14"
C	Bottom bracket drop	-2 mm / -7 mm -0.08"	-2 mm / -7 mm -0.08"	-2 mm / -7 mm -0.08"	-2 mm / -7 mm -0.08"	-2 mm / -7 mm -0.08"
D	Bottom bracket height	353 mm / 348 mm 13.90"	353 mm / 348 mm 13.90"	353 mm / 348 mm 13.90"	353 mm / 348 mm 13.90"	353 mm / 348 mm 13.90"
E	Chainstay length	445 mm / 446 mm 17.52"	445 mm / 446 mm 17.52"	445 mm / 446 mm 17.52"	455 mm / 456 mm 17.91"	455 mm / 456 mm 17.91"
F	Seat tube angle	75.3° / 74.95°	75.3° / 74.95°	75.3° / 74.95°	75.3° / 74.95°	75.3° / 74.95°
G	Effective seattube angle	78° / 77.65°	78° / 77.65°	78° / 77.65°	78° / 77.65°	78° / 77.65°
H	Headtube angle	64.0° / 63.65°	64.0° / 63.65°	64.0° / 63.65°	64.0° / 63.65°	64.0° / 63.65°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1236 mm / 1237 mm 48.66"	1260 mm / 1261 mm 49.61"	1284 mm / 1285 mm 50.55"	1319 mm / 1320 mm 51.93"	1343 mm / 1344 mm 52.87"
K	Headtube length	110 mm 4.33"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	440 mm / 436 mm 17.32"	460 mm / 456 mm 18.11"	480 mm / 476 mm 18.90"	500 mm / 496 mm 19.69"	520 mm / 516 mm 20.47"
M	Stack	640 mm / 643 mm 25.20"	649 mm / 652 mm 25.55"	658 mm / 661 mm 25.91"	667 mm / 670 mm 26.26"	676 mm / 679 mm 26.61"

Material

Aluminium

Front (mm)

180mm

Rear (mm)

170mm

Motor

Bosch

Battery

800Wh

Weight

25.9 kg

LEVEL XR: THE ÖHLINS COLLABORATION

The flagship of the lineup, the Level XR partners with Swedish suspension gurus Öhlins to give you unprecedented tuning and performance. This flagship model boasts the same updated Bosch CX motor (100Nm torque) + 800Wh removable battery as the other builds but with:

• Öhlins RXF 38 fork and TTX22 M.2 shock

• SRAM Maven Silver brakes

• SRAM GX Eagle AXS T-Type drivetrain (10-52T, 34T chainring)

• Maxxis Assegai 29"x2.6" WT (front) / Minion DHR II 27.5"x2.6" WT (rear)

• 800mm-wide ONOFF S9 carbon handlebar

THE BOSCH MOTOR YOU’VE BEEN WAITING FOR

It’s not just the fifth and latest generation of the Bosch CX; it’s also the one that comes with a game-changing update. All three models in the Level range now gets OTA (over-the-air) updates, with no need to visit a shop or an authorized Bosch service. The new firmware unlocks even more power: from the current 600W and 85Nm to a massive 750W and 100Nm, plus a boost in pedal assistance up to 400%. The wildest 100Nm upgrade for our wildest enduro machine. Bosch + us = an unbeatable combo (who would’ve guessed)!

UP TO 1050Wh FOR UNRIVALLED RANGE

You’ve got a removable 800Wh battery which is 350 grams lighter than the previous 750Wh model. Want more? Add a 250Wh range extender to push past the 1000Wh mark for absolutely unbelievable total range.

You want even more options? The internal frame design allows you to fit a 600Wh battery in the same slot (if you already have one or want to purchase that option). All this is neatly tucked in and protected with a sleek, lightweight, easy-to-remove carbon cover. Where you go with all that power is up to you. Just don’t hold back.

FULLY ADJUSTABLE GEOMETRY TO SUIT YOUR RIDING STYLE AND TERRAIN

Level comes in 5 sizes, because it makes sense. The range now includes an “ML” option so you can dial in the perfect fit, plus two rear triangle lengths to ensure the same signature Level feel across all sizes.

And if you’re the kind of rider who likes to fine-tune geometry to the trails you’re shredding on your Level (you way you’re meant to), you’ll love the lower shock mount flip chip! It lets you slacken the head and seat angles even more, and lower the bottom bracket height too, to better suit those steeper, gnarlier lines you’ve been dreaming of this last year or so.

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.
