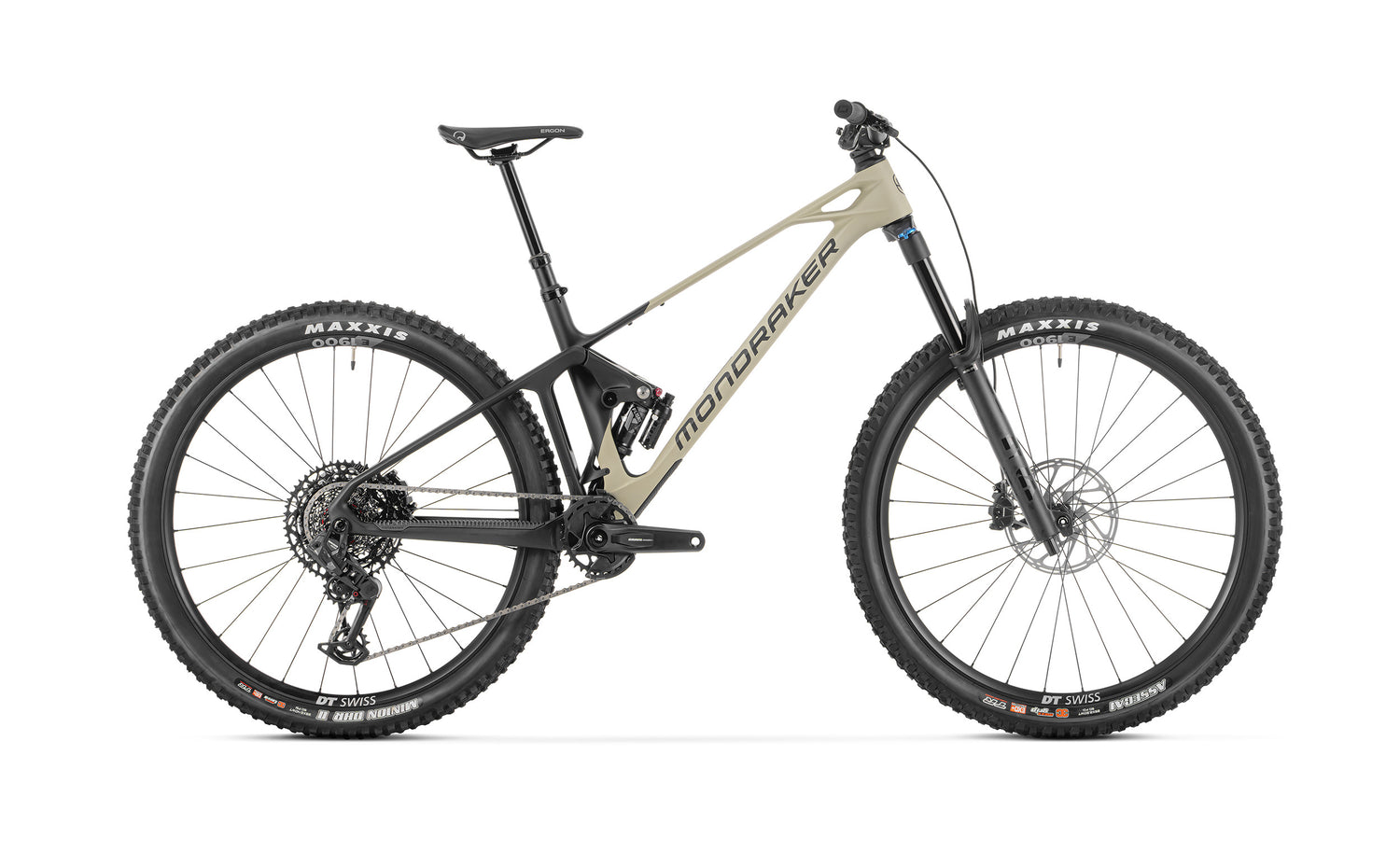

Mondraker - FOXY CARBON R

€6,399.00 EUR

Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

Fork: Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

Rear shock: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Weight: 14,8 kg

See All Specs

Geometry & Size Guide

Size guide

ColorDesert Grey

Frame Size S M L XL

Mondraker - FOXY CARBON R

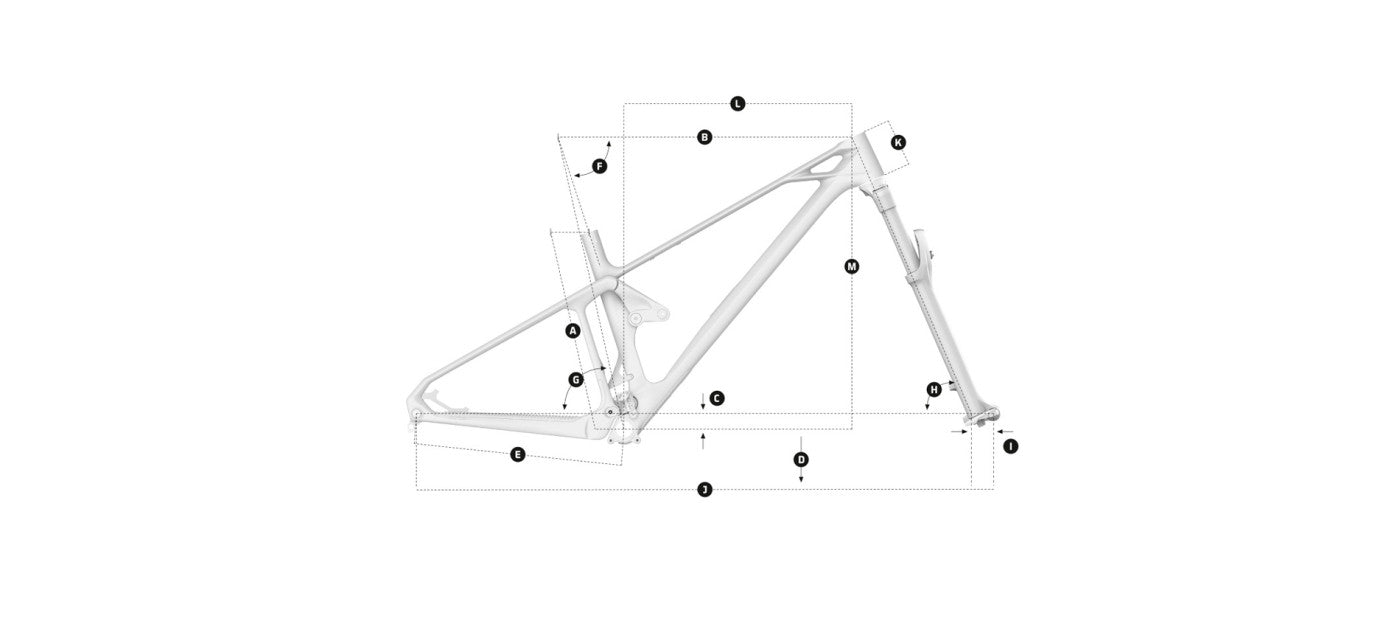

Geometry

	Frame size	S [Std/Low]	M [Std/Low]	L [Std/Low]	XL [Std/Low]
A	Seattube length	375 mm 14.76"	415 mm 16.34"	445 mm 17.52"	500 mm 19.69"
B	Toptube length	600 mm 23.62"	620 mm 24.41"	650 mm 25.59"	670 mm 26.38"
C	Bottom bracket drop	-23mm / -28 mm -0.91"	-23/-28 mm -0.91"	-23mm / -28 mm -0.91"	-23mm / -28 mm -0.91"
D	Bottom bracket height	350 mm / 345 mm 13.78"	350 mm/345 mm 13.78"	350 mm / 345 mm 13.78"	350 mm / 345 mm 13.78"
E	Chainstay length	435 mm / 445 mm 17.13"	435 mm/445 mm 17.13"	435 mm / 445 mm 17.13"	435 mm / 445 mm 17.13"
F	Seat tube angle	70.5° / 70°	70.5°/70°	70.5° / 70°	70.5° / 70°
G	Effective seattube angle	76° / 75.5°	76°/75.5°	76° / 75.5°	76° / 75.5°
H	Headtube angle	65° / 64.5°	65°/64.5°	64.5°	65° / 64.5°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1203 mm / 1210 mm 47.36"	1227 mm/1233 mm 48.31"	1253 mm / 1260 mm 49.33"	1279 mm / 1286 mm 50.35"
K	Headtube length	90 mm 3.54"	100 mm 3.94"	115 mm 4.53"	130 mm 5.12"
L	Reach	445 mm / 440 mm 17.52"	465 mm/460 mm 18.31"	485 mm / 480 mm 19.09"	505 mm / 500 mm 19.88"
M	Stack	615 mm / 617 mm 24.21"	623 mm/627 mm 24.53"	637 mm / 641 mm 25.08"	651 mm / 656 mm 25.63"

Material

Carbon

Front (mm)

160mm

Rear (mm)

150mm

Weight

14.8 kg

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.

02 — Forward Geometry

Longer front centre, shorter stem, greater wheelbase. Mondraker's pioneering geometry remains the benchmark for stability and control at speed.

03 — Stealth Carbon

Mondraker's most refined and lightest carbon engineering, with rigidity tuned exactly where the ride needs it.

Dig Deep

Specs, sizing and support for the Mondraker - FOXY CARBON R.

Build Kit & SpecsSee the details

Geometry & SizingCrunch the numbers

Setup & SupportDial in your bike

Mondraker - FOXY CARBON R

Carbon

160mm

150mm

14.8 kg

Mondraker Technology

01 — Zero Suspension System

02 — Forward Geometry

03 — Stealth Carbon
