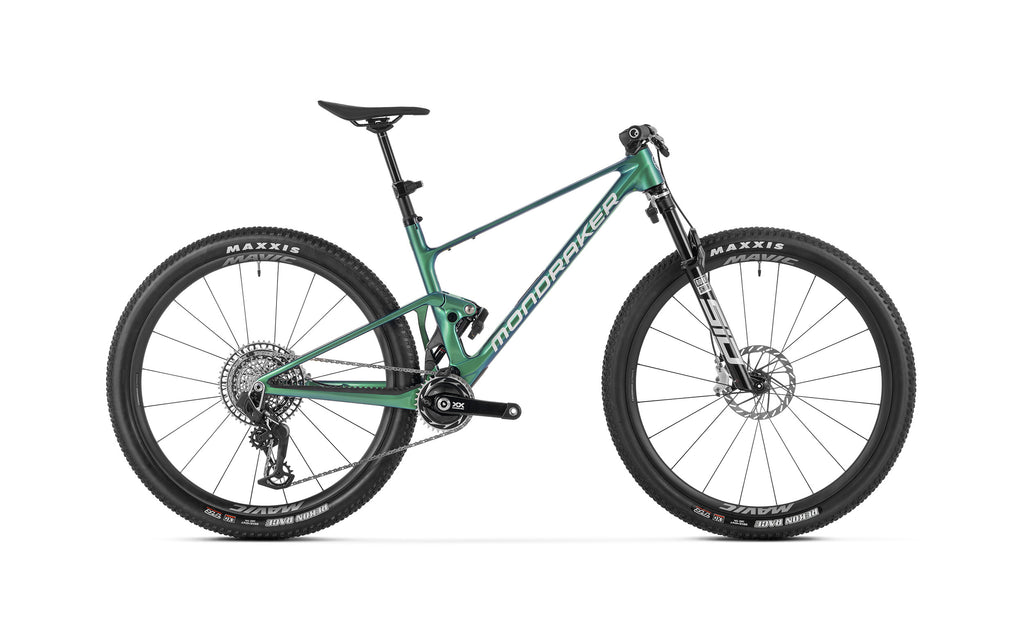

Mondraker - F-PODIUM RR SL

€12,999.00 EUR

Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard, postmount rear brake mount.

Fork: RockShox SID Ultimate Flight Attendant, 120mm, Debon Air+, Charger Race Day 2, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock)

Rear shock: RockShox SID Luxe Ultimate Flight Attendant, 165x45mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock). Trunnion top mount, 30x8mm bottom bushings

See All Specs

Geometry & Size Guide

Size guide

Color Team Issue Atmos

Frame Size S M L XL

Mondraker - F-PODIUM RR SL

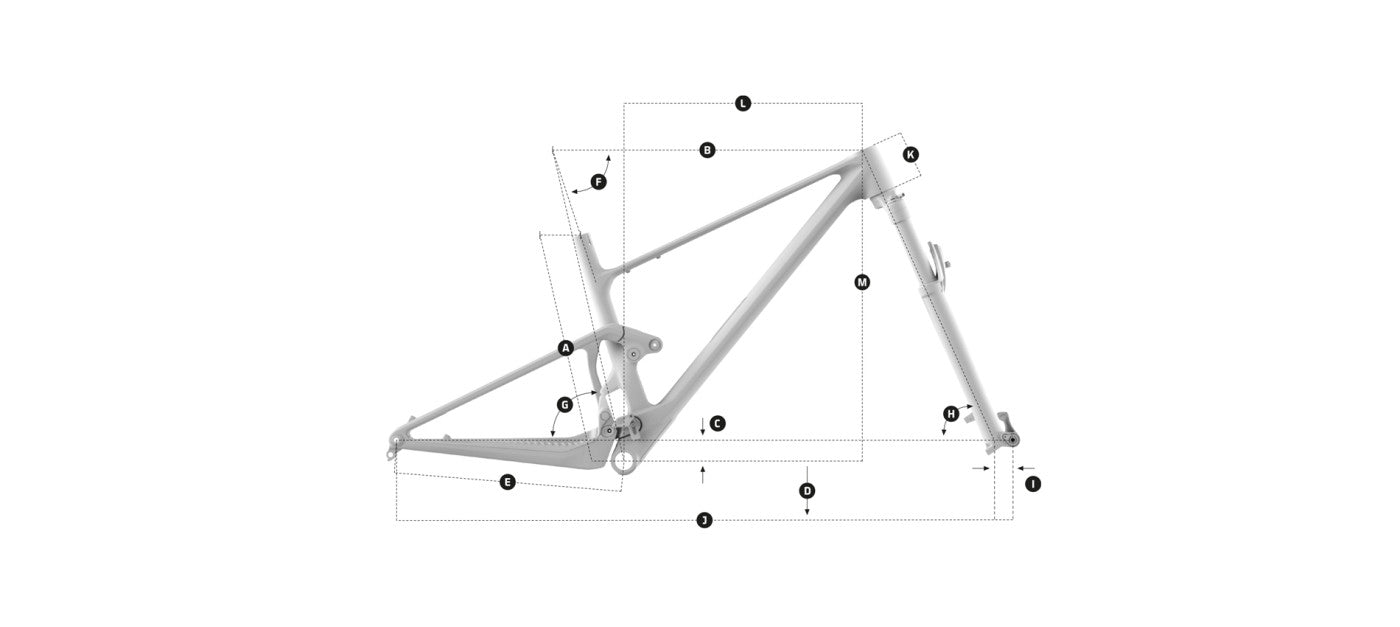

Geometry

	Frame size	S	M	L	XL
A	Seattube length	410 mm 16.14"	440 mm 17.32"	470 mm 18.50"	500 mm 19.69"
B	Toptube length	576 mm 22.68"	601 mm 23.66"	629,4 mm 24.78"	657,8 mm 25.90"
C	Bottom bracket drop	-40 mm -1.57"	-40 mm -1.57"	-40 mm -1.57"	-40 mm -1.57"
D	Bottom bracket height	335 mm 13.19"	335 mm 13.19"	335 mm 13.19"	335 mm 13.19"
E	Chainstay length	435 mm 17.13"	435 mm 17.13"	435 mm 17.13"	435 mm 17.13"
F	Seat tube angle	72,5°	72,9°	73,2°	73,5°
G	Effective seattube angle	76,2°	76,2°	76,2°	76,2°
H	Headtube angle	66,5°	66,5°	66,5°	66,5°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1152 mm 45.35"	1177 mm 46.34"	1208 mm 47.56"	1239 mm 48.78"
K	Headtube length	90 mm 3.54"	90 mm 3.54"	105 mm 4.13"	120 mm 4.72"
L	Reach	430 mm 16.93"	455 mm 17.91"	480 mm 18.90"	505 mm 19.88"
M	Stack	594,6 mm 23.41"	594,6 mm 23.41"	608,3 mm 23.95"	622,1 mm 24.49"

Material

Carbon

Front (mm)

120mm

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.

02 — Forward Geometry

Longer front centre, shorter stem, greater wheelbase. Mondraker's pioneering geometry remains the benchmark for stability and control at speed.

03 — Stealth Carbon

Mondraker's most refined and lightest carbon engineering, with rigidity tuned exactly where the ride needs it.

Dig Deep

Specs, sizing and support for the Mondraker - F-PODIUM RR SL.

Build Kit & SpecsSee the details

Geometry & SizingCrunch the numbers

Setup & SupportDial in your bike

Mondraker - F-PODIUM RR SL

Carbon

120mm

Mondraker Technology

01 — Zero Suspension System

02 — Forward Geometry

03 — Stealth Carbon
