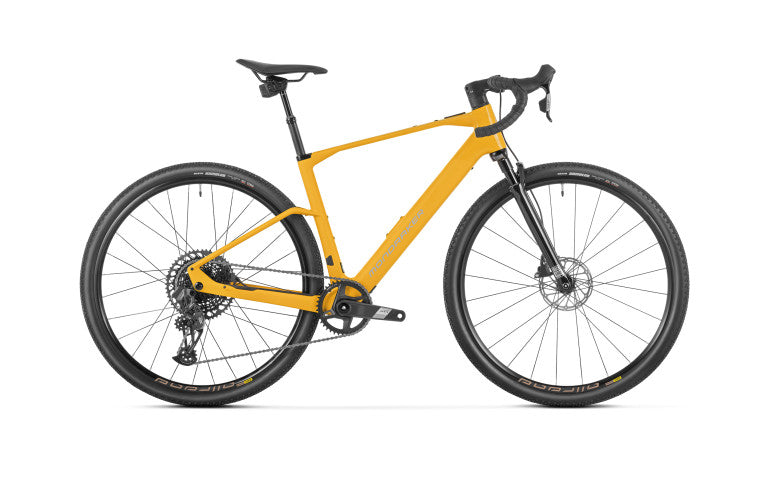

Mondraker - DUSTY RR

€7,299.00 EUR

Frame: e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

Fork: RockShox Rudy Ultimate, 40mm travel, 12x100mm maxle stealth, 45mm offset

Motor: Mahle X20 Drive Unit

Battery: Mahle X20 IX350Wh

Weight: 14,8 kg

See All Specs

Geometry & Size Guide

ColorDense Yellow

Frame Size S M L XL

Mondraker - DUSTY RR

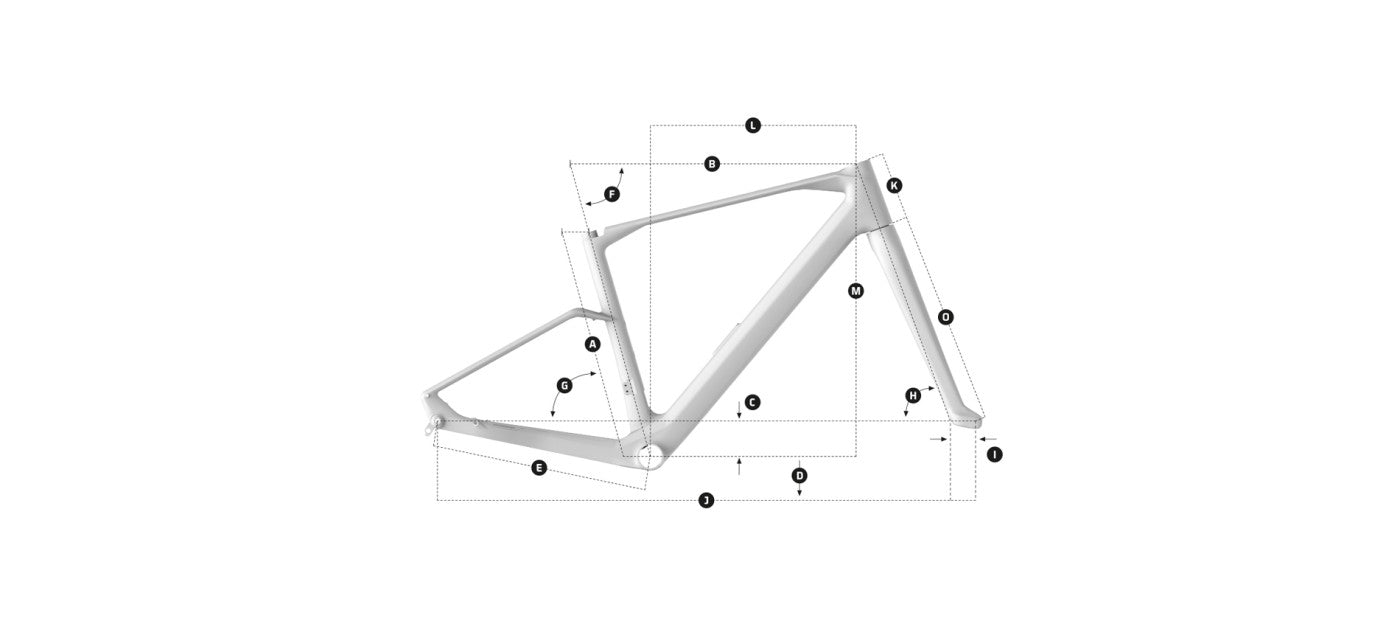

Geometry

	Frame size	S	M	L	XL
A	Seattube length	440 mm 17.32"	460 mm 18.11"	500 mm 19.69"	530 mm 20.87"
B	Toptube length	550 mm 21.65"	570 mm 22.44"	595 mm 23.43"	620 mm 24.41"
C	Bottom bracket drop	70 mm 2.76"	70 mm 2.76"	70 mm 2.76"	70 mm 2.76"
D	Bottom bracket height	286 mm 11.26"	286 mm 11.26"	286 mm 11.26"	286 mm 11.26"
E	Chainstay length	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"
F	Seat tube angle	74º	74º	74º	74º
G	Effective seattube angle	74º	74º	74º	74º
H	Headtube angle	70º	70º	70º	70º
I	Fork Offset	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"
J	Wheelbase	1034 mm 40.71"	1056 mm 41.57"	1082 mm 42.60"	1110 mm 43.70"
K	Headtube length	125 mm 4.92"	150 mm 5.91"	175 mm 6.89"	210 mm 8.27"
L	Reach	393 m	405 mm 15.94"	424 mm 16.69"	440mm 17.32"
M	Stack	548 mm 21.57"	576 mm 22.68"	595 mm 23.43"	628 mm 24.72"
N	Stem Length	60 mm 2.36"	70 mm 2.76"	80 mm 3.15"	90 mm 3.54"
O	Fork Height	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"
