Mondraker - CRAFTY CARBON UNLIMITED ICON

€12,999.00 EUR

Frame: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Fork: Öhlins RXF 38 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

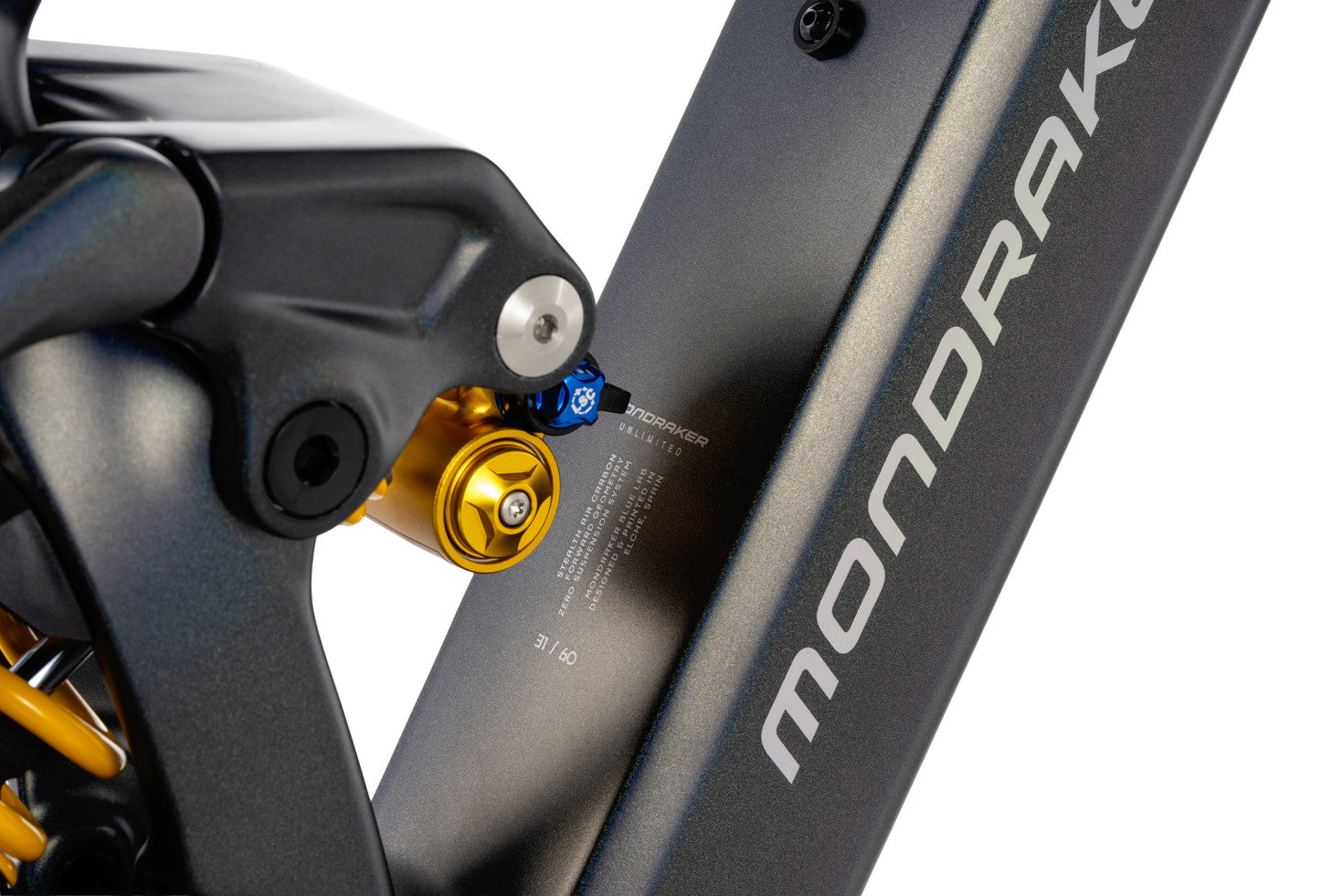

Rear shock: Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Motor: Bosch Performance Line CX-R(25Km/h) SMART SYSTEM (BDU386Y)

Battery: Bosch Powertube 800Wh

See All Specs

Geometry & Size Guide

Size guide

Frame Size S M M/L L XL

Mondraker - CRAFTY CARBON UNLIMITED ICON

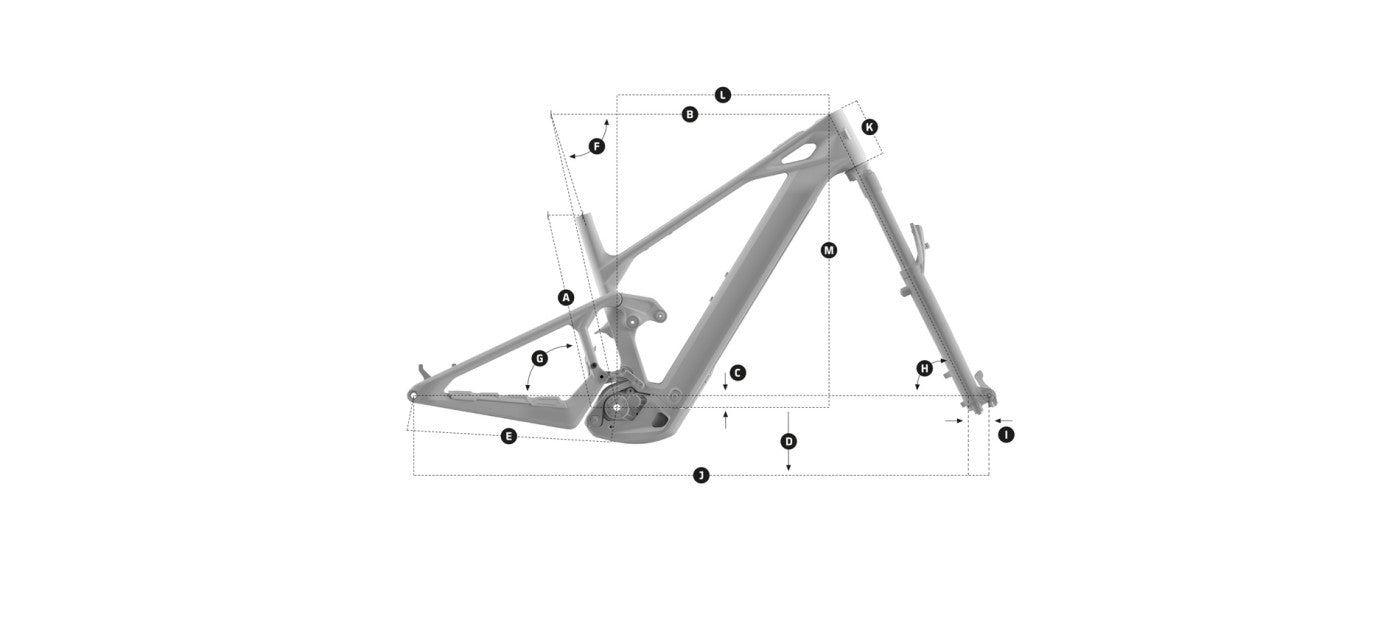

Geometry

	Frame size	S [Std/Low]	M [Std/Low]	M/L [Std/Low]	L [Std/Low]	XL [Std/Low]
A	Seattube length	380 mm 14.96"	410 mm 16.14"	435 mm 17.13"	460 mm 18.11"	490 mm 19.29"
B	Toptube length	581 mm/582 mm 22.87"	596 mm/597 mm 23.46"	618 mm/619 mm 24.33"	640 mm/641 mm 25.20"	662 mm/663 mm 26.06"
C	Bottom bracket drop	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"
D	Bottom bracket height	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"
E	Chainstay length	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	465 mm/466 mm 18.31"	465 mm/466 mm 18.31"
F	Seat tube angle	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°
G	Effective seattube angle	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°
H	Headtube angle	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"
J	Wheelbase	1240 mm/1241 mm 48.82"	1255 mm/1256 mm 49.41"	1280 mm/1281 mm 50.39"	1314 mm/1315 mm 51.73"	1338 mm/1339 mm 52.68"
K	Headtube length	120 mm 4.72"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	445 mm/441 mm 17.52"	460 mm/456 mm 18.11"	480 mm/476 mm 18.90"	500 mm/496 mm 19.69"	520 mm/516 mm 20.47"
M	Stack	638 mm/641 mm 25.12"	638 mm/641 mm 25.12"	647 mm/650 mm 25.47"	656 mm/659 mm 25.83"	665 mm/668 mm 26.18"

Material

Carbon

Front (mm)

160mm

Rear (mm)

150mm

Motor

Bosch

Battery

800Wh

A limited and exclusive edition to celebrate the 10th anniversary of our most iconic bike.

It is rare for a bike to transcend its role as simply a bike and become something much greater. A symbol. A way of understanding e-mtb. An icon.

Crafty was born ten years ago, coinciding with the arrival of the first generation of the Bosch Performance Line CX: the first motor created specifically for e-mtb. It was then that we saw the opportunity to develop an electric bike designed from its core for mountain biking, our specialty.

CRAFTY UNLIMITED ICON 10TH ANNIVERSARY

AN E-BIKE IN THE CENTER OF EVERYTHING

The Crafty has always held a unique place within Mondraker.

It sits right in the middle between our agile, shorter-travel bikes and our most extreme downhill machines. Crafty sits between these two worlds, with 150mm of travel and a platform designed to offer the best possible balance.

That’s why it has become our most popular e-bike and one of the leading names in the e-mtb category. A capable, balanced bike to enjoy whatever trails you like to ride.

UNLIMITED

Unlimited means going one step further.

It is the name we reserve for the most exclusive bikes we have ever created. Models produced in very limited numbers and designed to be one-of-a-kind. Crafty Unlimited ICON is the most exclusive expression of our most iconic bike.

Each unit has been created to mark the Crafty’s anniversary and celebrate the model most of our customers have chosen over the last decade. A limited edition accompanied by exclusive features that reinforce this bike’s unique character.

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.

02 — Forward Geometry

Longer front centre, shorter stem, greater wheelbase. Mondraker's pioneering geometry remains the benchmark for stability and control at speed.

03 — Stealth Carbon

Mondraker's most refined and lightest carbon engineering, with rigidity tuned exactly where the ride needs it.

04 — Bosch eBike System

Bosch Performance Line power with smart connectivity: more torque for the toughest climbs and controlled push through technical terrain.
