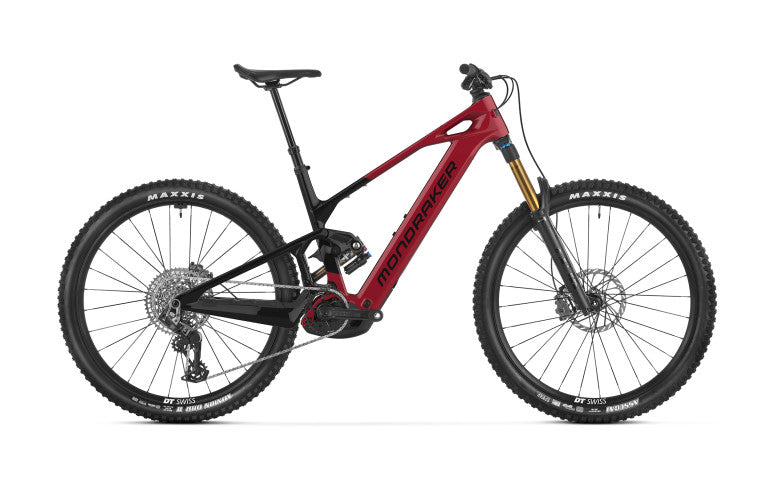

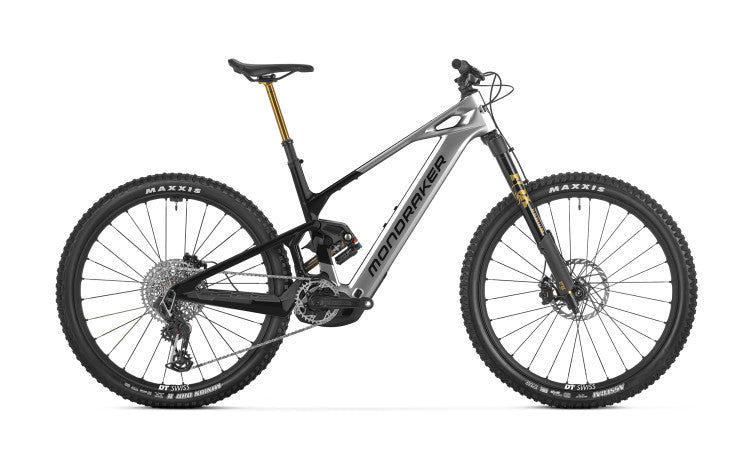

Mondraker - CRAFTY CARBON RR

€8,499.00 EUR

Frame: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Rear shock: Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh

See All Specs

Geometry & Size Guide

ColorRubycore

Frame Size S M ML L XL

Mondraker - CRAFTY CARBON RR

Geometry

	Frame size	S [Std/Low]	M [Std/Low]	M/L [Std/Low]	L [Std/Low]	XL [Std/Low]
A	Seattube length	380 mm 14.96"	410 mm 16.14"	435 mm 17.13"	460 mm 18.11"	490 mm 19.29"
B	Toptube length	581 mm/582 mm 22.87"	596 mm/597 mm 23.46"	618 mm/619 mm 24.33"	640 mm/641 mm 25.20"	662 mm/663 mm 26.06"
C	Bottom bracket drop	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"
D	Bottom bracket height	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"
E	Chainstay length	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	465 mm/466 mm 18.31"	465 mm/466 mm 18.31"
F	Seat tube angle	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°
G	Effective seattube angle	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°
H	Headtube angle	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"
J	Wheelbase	1240 mm/1241 mm 48.82"	1255 mm/1256 mm 49.41"	1280 mm/1281 mm 50.39"	1314 mm/1315 mm 51.73"	1338 mm/1339 mm 52.68"
K	Headtube length	120 mm 4.72"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	445 mm/441 mm 17.52"	460 mm/456 mm 18.11"	480 mm/476 mm 18.90"	500 mm/496 mm 19.69"	520 mm/516 mm 20.47"
M	Stack	638 mm/641 mm 25.12"	638 mm/641 mm 25.12"	647 mm/650 mm 25.47"	656 mm/659 mm 25.83"	665 mm/668 mm 26.18"
