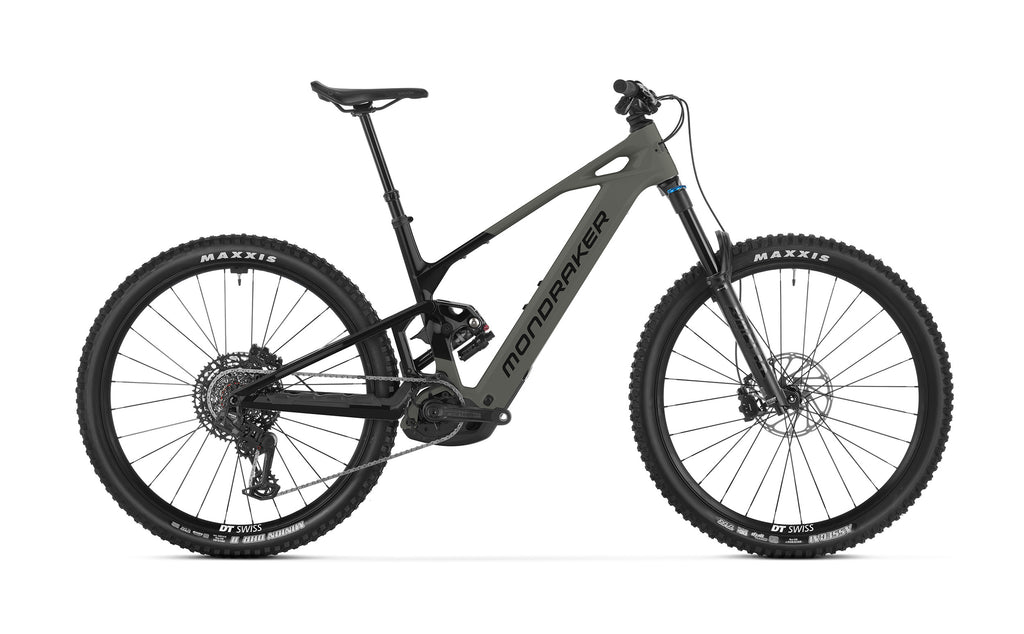

Mondraker - CRAFTY CARBON R

€7,499.00 EUR

Frame: Crafty Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Fork: Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Rear shock: Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh

See All Specs

Geometry & Size Guide

Size guide

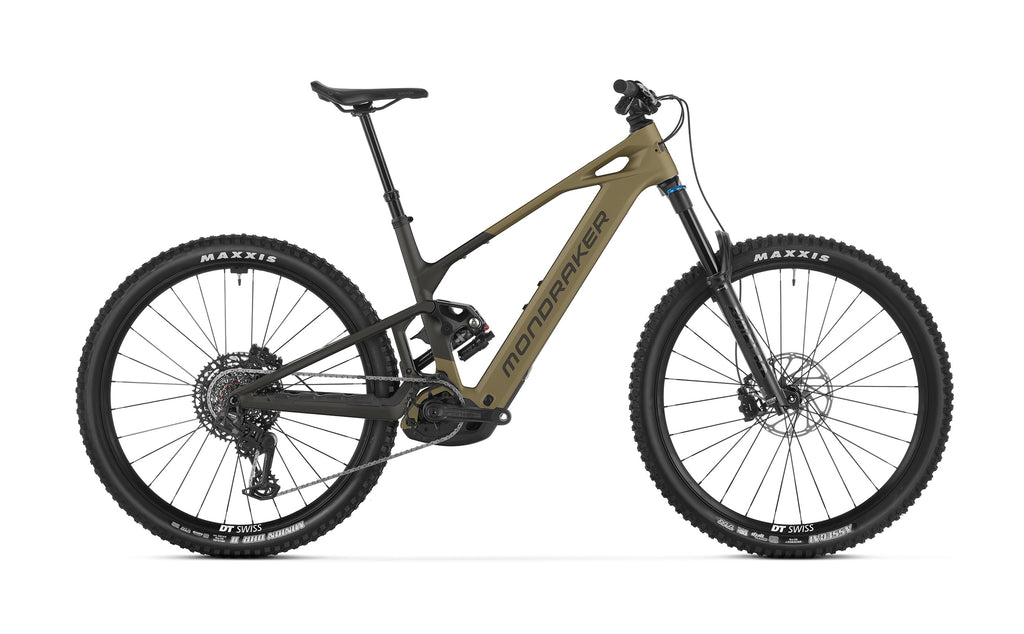

Color Greyhound Grey Relic Metallic

Frame Size S M ML L XL

Mondraker - CRAFTY CARBON R

Geometry

	Frame size	S [Std/Low]	M [Std/Low]	M/L [Std/Low]	L [Std/Low]	XL [Std/Low]
A	Seattube length	380 mm 14.96"	410 mm 16.14"	435 mm 17.13"	460 mm 18.11"	490 mm 19.29"
B	Toptube length	581 mm/582 mm 22.87"	596 mm/597 mm 23.46"	618 mm/619 mm 24.33"	640 mm/641 mm 25.20"	662 mm/663 mm 26.06"
C	Bottom bracket drop	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"	-25 mm/-30 mm -0.98"
D	Bottom bracket height	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"	350 mm/345 mm 13.78"
E	Chainstay length	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	455 mm/456 mm 17.91"	465 mm/466 mm 18.31"	465 mm/466 mm 18.31"
F	Seat tube angle	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°	73°/72.65°
G	Effective seattube angle	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°	77.95°/77.6°
H	Headtube angle	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°	64.5°/64.15°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"	44 mm 1.73"	44 mm/44 mm 1.73"
J	Wheelbase	1240 mm/1241 mm 48.82"	1255 mm/1256 mm 49.41"	1280 mm/1281 mm 50.39"	1314 mm/1315 mm 51.73"	1338 mm/1339 mm 52.68"
K	Headtube length	120 mm 4.72"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"	150 mm 5.91"
L	Reach	445 mm/441 mm 17.52"	460 mm/456 mm 18.11"	480 mm/476 mm 18.90"	500 mm/496 mm 19.69"	520 mm/516 mm 20.47"
M	Stack	638 mm/641 mm 25.12"	638 mm/641 mm 25.12"	647 mm/650 mm 25.47"	656 mm/659 mm 25.83"	665 mm/668 mm 26.18"

Material

Carbon / Alloy

Front (mm)

160mm

Rear (mm)

150mm

Motor

Bosch

Battery

800Wh

CARBON FIBRE: THROUGHOUT

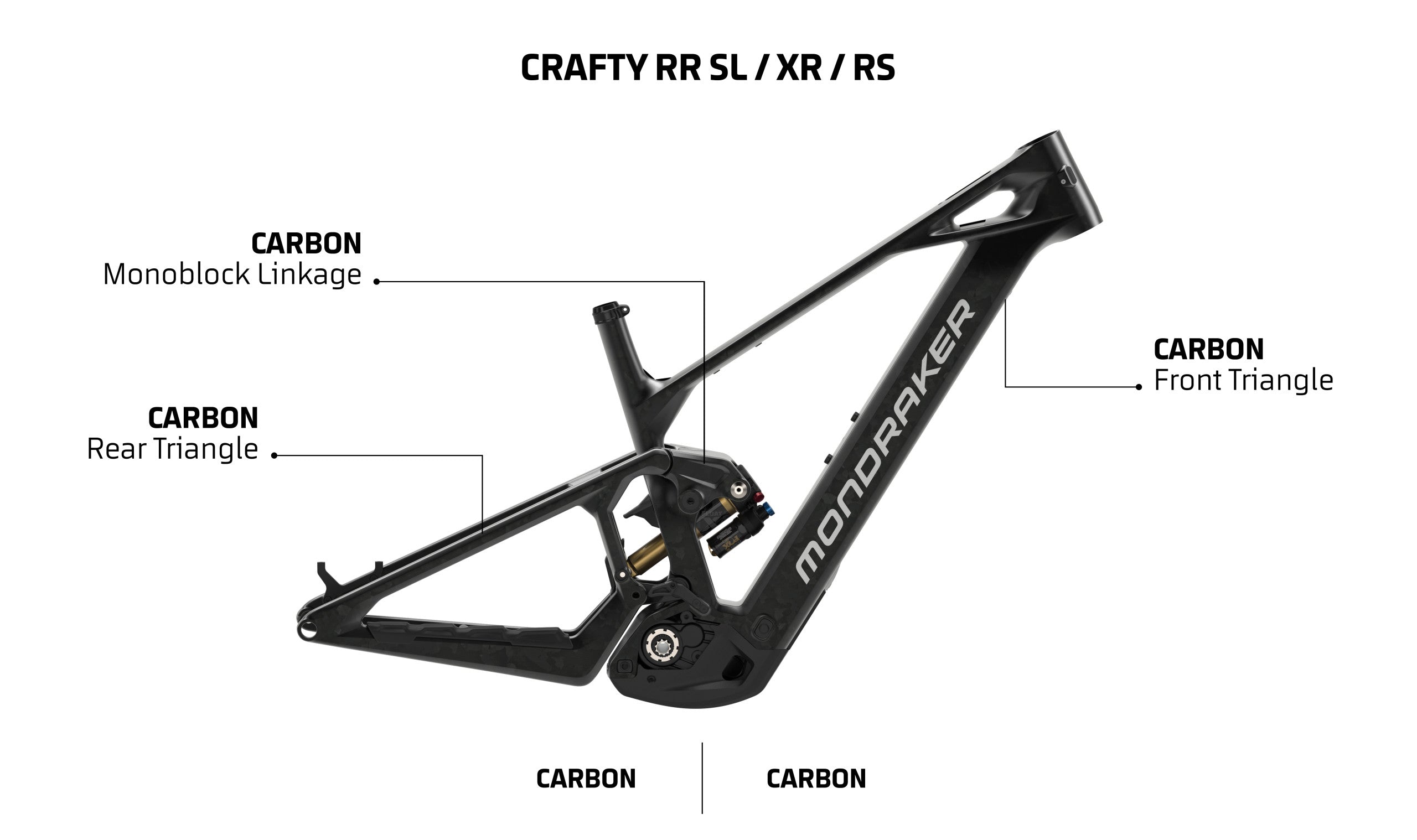

Crafty Carbon counts on an all-new carbon fibre frame manufactured from Stealth Air Carbon. There are 5 builds available in 5 different sizes with two different chainstay lengths depending on size. The R and RR builds are built on a carbon fibre frame with an aluminium rear triangle. The other 3 builds, the RR S, XR and RR SL are carbon fibre throughout.

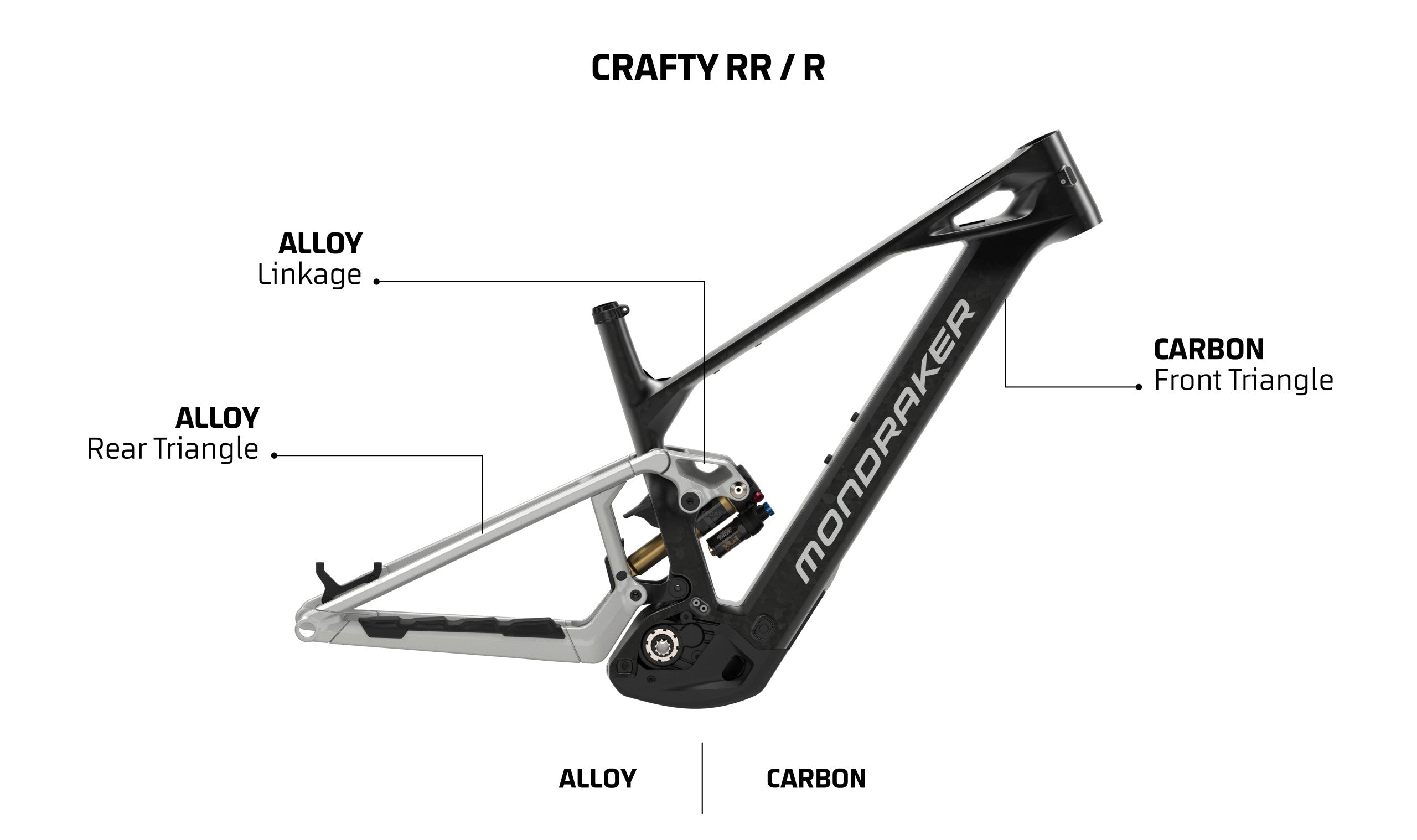

Crafty Carbon — carbon frame with aluminium rear triangle

NEW FORWARD GEOMETRY

The kinematics have been optimised too, with the new Crafty Carbon range taking advantage of our updated Zero Suspension System to offer better small bump compliance, better shock absorption and better top-out characteristics. Grip when climbing also receives a significant boost, regardless of terrain.

FLIP CHIP

The new design is also one degree slacker than the previous generation of Crafty Carbon, making the 2025 model more stable at speed. As well as the new 64.5° head angle, the new frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.

AIM: OPTIMIZATION

As with the recently released SLY, Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.

A standout feature is the incorporation of two different chainstay lengths dependant on frame size. Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size. The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm, ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.

BOSCH CX PERFORMANCE: LATEST VERSION

A significant update to the new Crafty Carbon range, is the addition of the highly anticipated, totally revamped 2025 Bosch Performance CX. The market leader among full power motors, the CX has been an intrinsic part of every Crafty Carbon since its launch in 2020. Bosch’s new motor incorporates an updated design architecture with two mounting points instead of three, a 100g reduction in weight and a reduction in its overall size.

This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous model but offers far better power delivery and control. Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.

The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, mean the Crafty Carbon offers improved performance in all conditions and on all terrain types. The new motor also boasts reduced drag when pedalling above 25km/h

REMOVABLE BATTERIES: 800Wh AND 600Wh

Crafty Carbon range has a possibility to fit both the 800Wh or 600Wh batteries. R and RR models feature the new 800Wh Bosch batteries as original equipment and the more sophisticated RR S, XR and RR SL models are fitted with the lighter 600Wh version. Both batteries have been completely upgraded and optimised with the new generation of 21700 cells with higher energy density which, in combination with the new hardware and software improvements of the new Performance CX Bosch motor with renewed electronics, provide improved efficiency with longer battery range and a much lower weight compared to the previous generation. More kilometres, more fun.

EXTRA RANGE: WITH THE 250Wh POWERMORE

All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube. Weighing in at around 1.5Kg it’s light and easy to carry either on the frame or in a backpack.

Mondraker Technology

The engineering behind every Mondraker.

01 — Zero Suspension System

A virtual-pivot dual-link design where the shock floats between the links and is compressed from both ends: more traction, better small-bump response and less pedal kickback.

02 — Forward Geometry

Longer front centre, shorter stem, greater wheelbase. Mondraker's pioneering geometry remains the benchmark for stability and control at speed.

03 — Stealth Carbon

Mondraker's most refined and lightest carbon engineering, with rigidity tuned exactly where the ride needs it.

04 — Bosch eBike System

Bosch Performance Line power with smart connectivity: more torque for the toughest climbs and controlled push through technical terrain.
