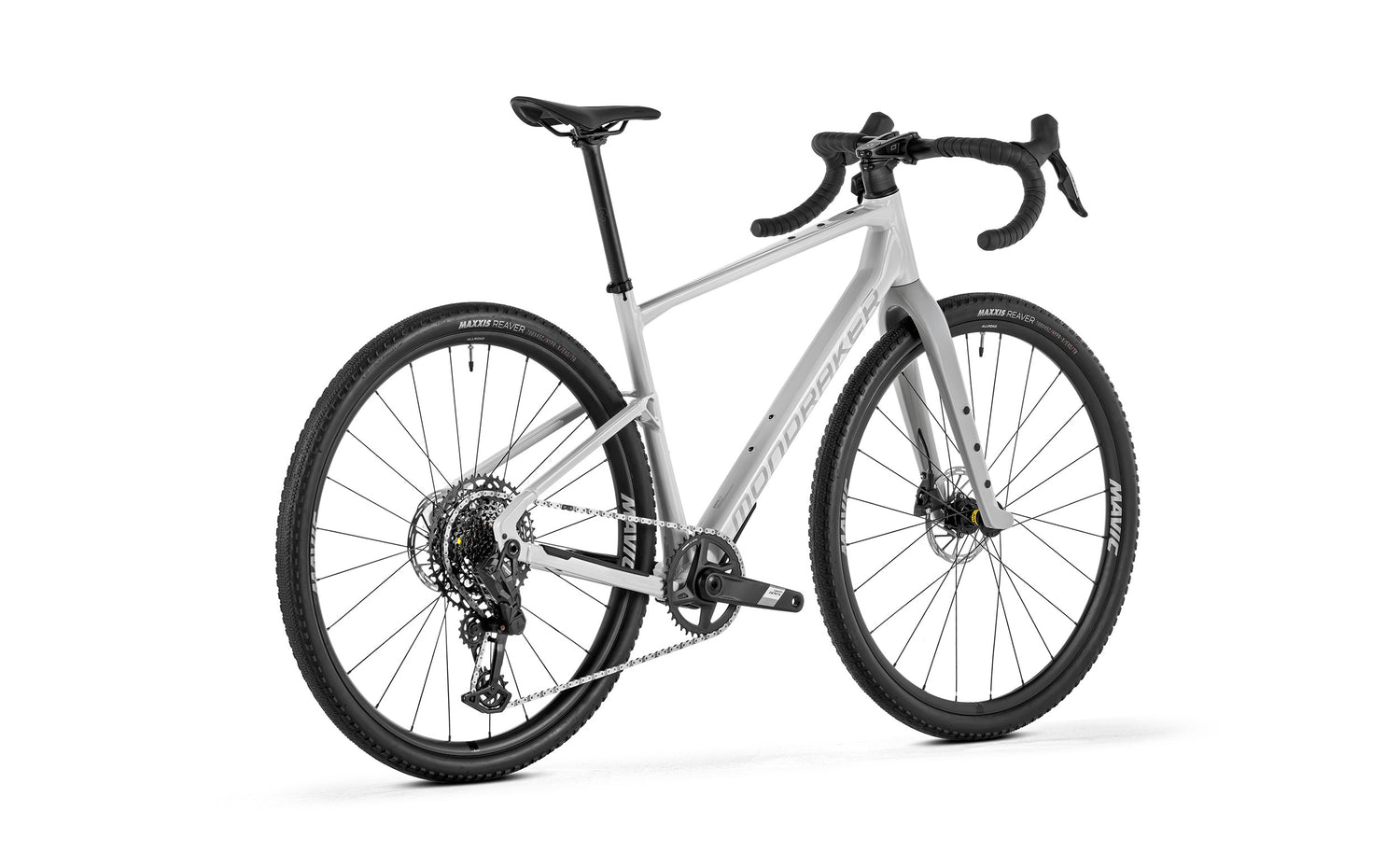

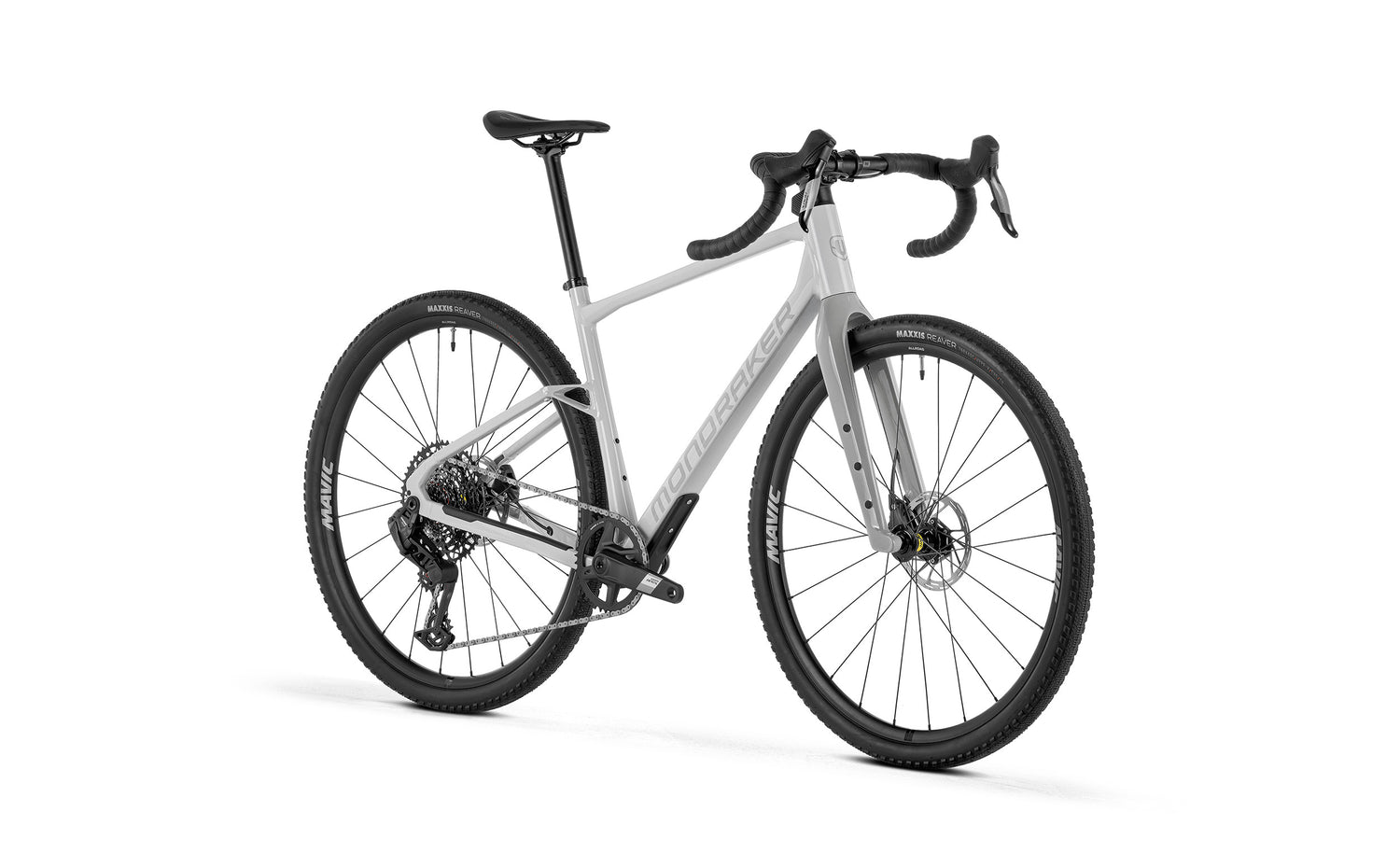

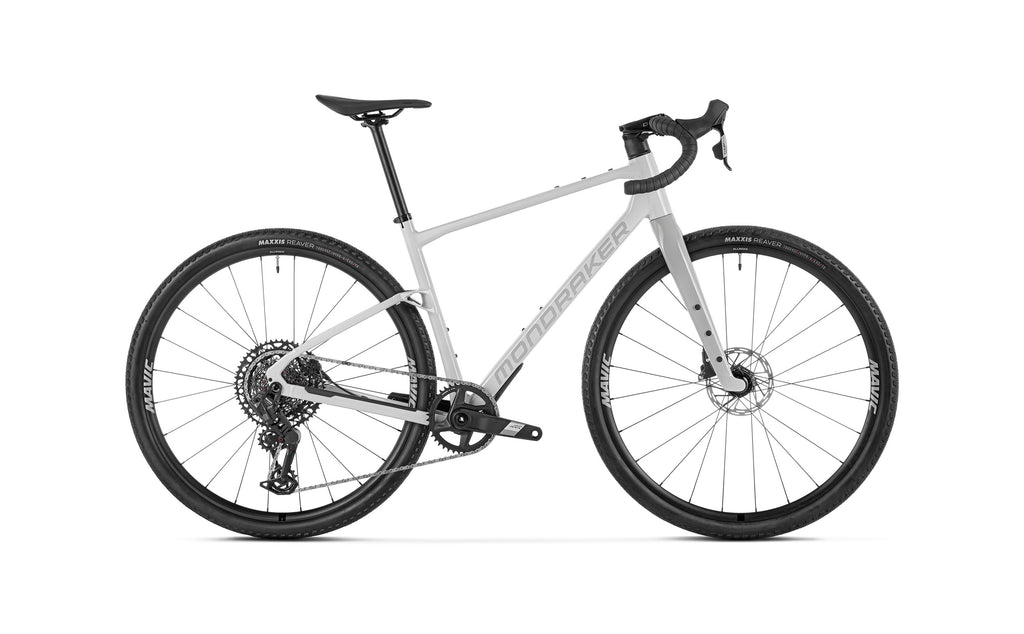

Mondraker - ARID R

€2,699.00 EUR

Frame: Arid 6061 Alloy Stealth Evo, hydroformed tubing, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

See All Specs

Geometry & Size Guide

Size guide

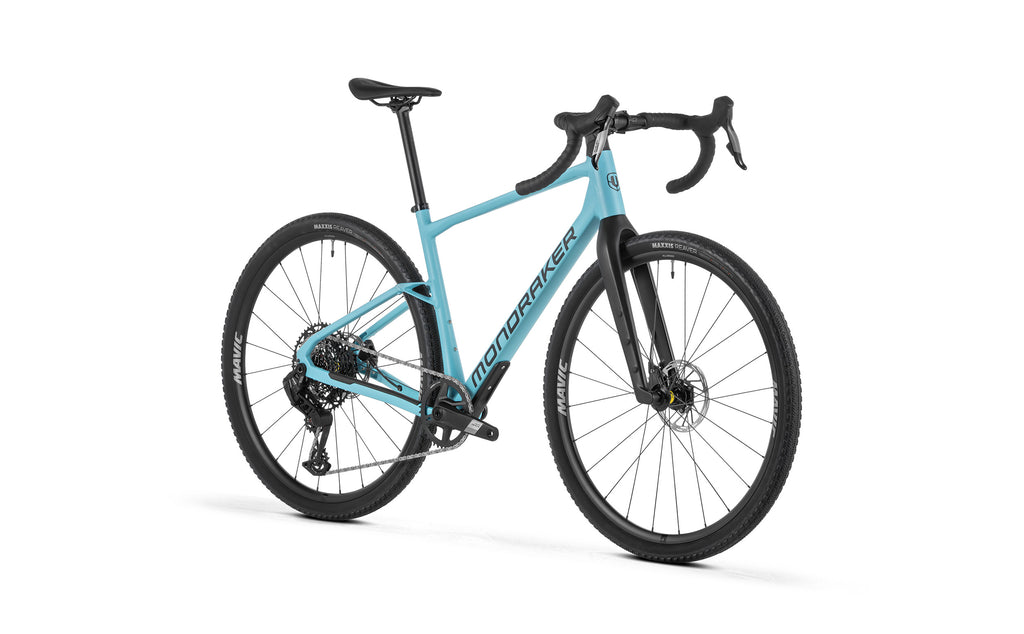

Color Bunker Grey Tokyo Blue

Frame Size S M ML L XL

Mondraker - ARID R

Geometry

	Frame size	S	M	M/L	L	XL
A	Seattube length	410 mm 16.14"	450 mm 17.72"	480 mm 18.90"	510 mm 20.08"	540 mm 21.26"
B	Toptube length	520 mm 20.47"	550 mm 21.65"	580 mm 22.83"	600 mm 23.62"	630 mm 24.80"
C	Bottom bracket drop	-75	-75	-75	-75	-75
D	Bottom bracket height	269 mm 10.59"	269 mm 10.59"	269 mm 10.59"	269 mm 10.59"	269 mm 10.59"
E	Chainstay length	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"	425 mm 16.73"
F	Seat tube angle	73°	73°	73°	73°	73°
G	Effective seattube angle	74°	74°	74°	74°	74°
H	Headtube angle	70°	70°	70°	70°	70°
I	Fork Offset	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"	45 mm 1.77"
J	Wheelbase	1003 mm 39.49"	1035 mm 40.75"	1067 mm 42.01"	1089 mm 42.87"	1121 mm 44.13"
K	Headtube length	100 mm 3.94"	125 mm 4.92"	145 mm 5.71"	175 mm 6.89"	200 mm 7.87"
L	Reach	363 mm 14.29"	386 mm 15.20"	411 mm 16.18"	423 mm 16.65"	446 mm 17.56"
M	Stack	548 mm 21.57"	572 mm 22.52"	591 mm 23.27"	619 mm 24.37"	642 mm 25.28"
N	Stem Length	60 mm 2.36"	70 mm 2.76"	70 mm 2.76"	80 mm 3.15"	90 mm 3.54"
O	Fork Height	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"	420 mm 16.54"
