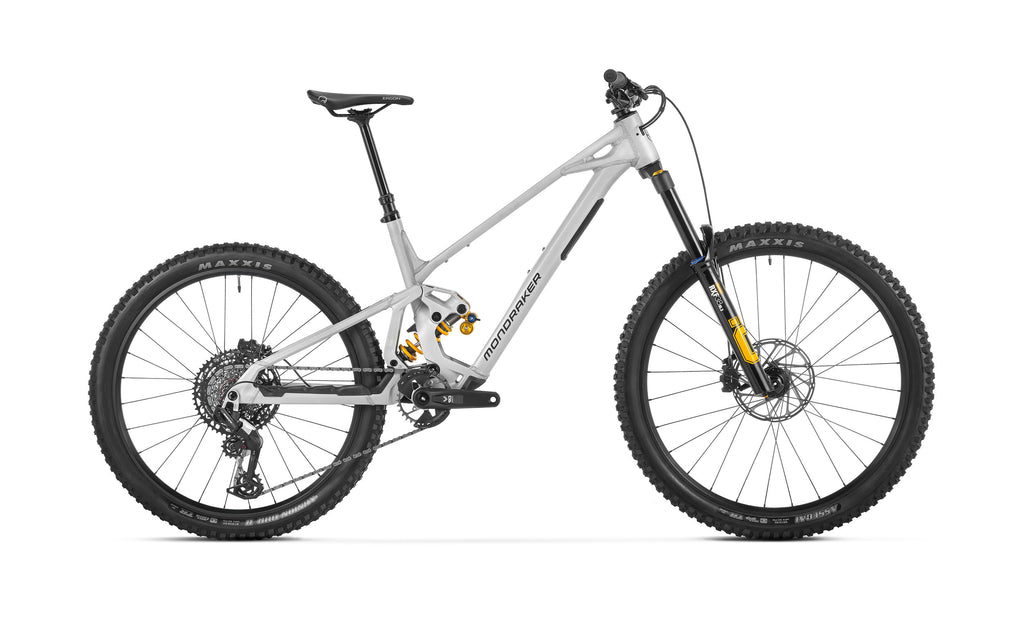

Mondraker - ANARK XR

€4,999.00 EUR

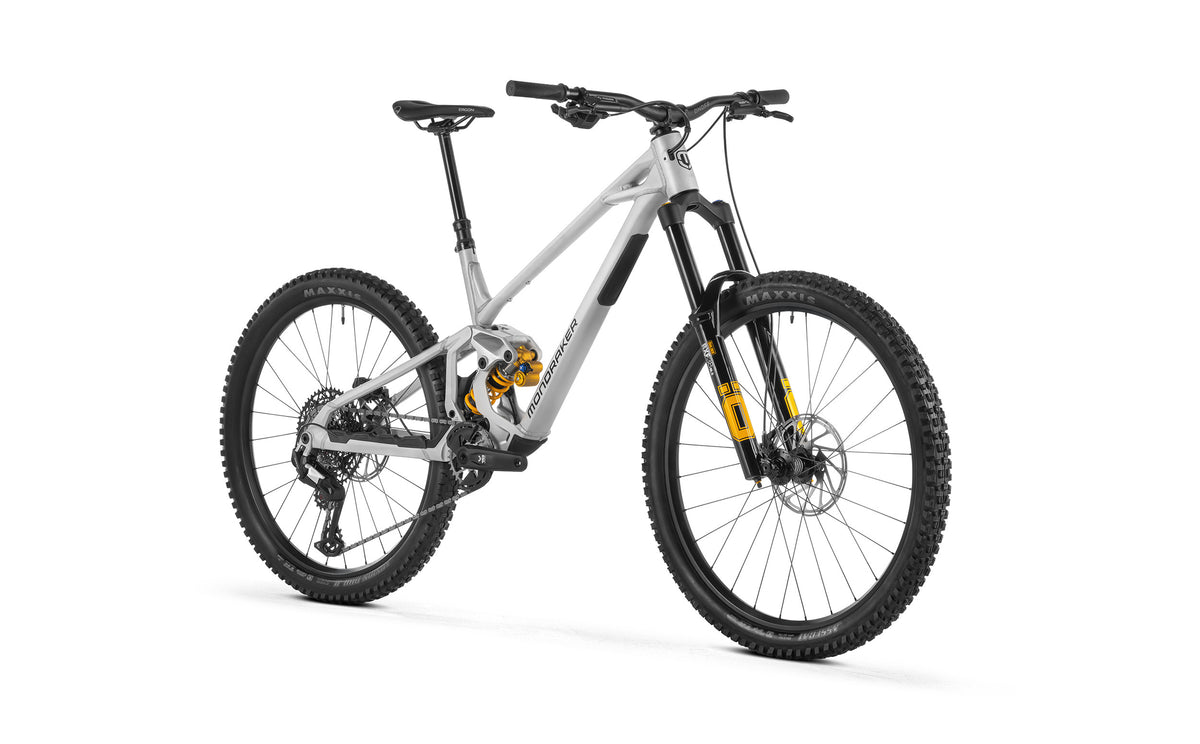

Frame: Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

Fork: Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

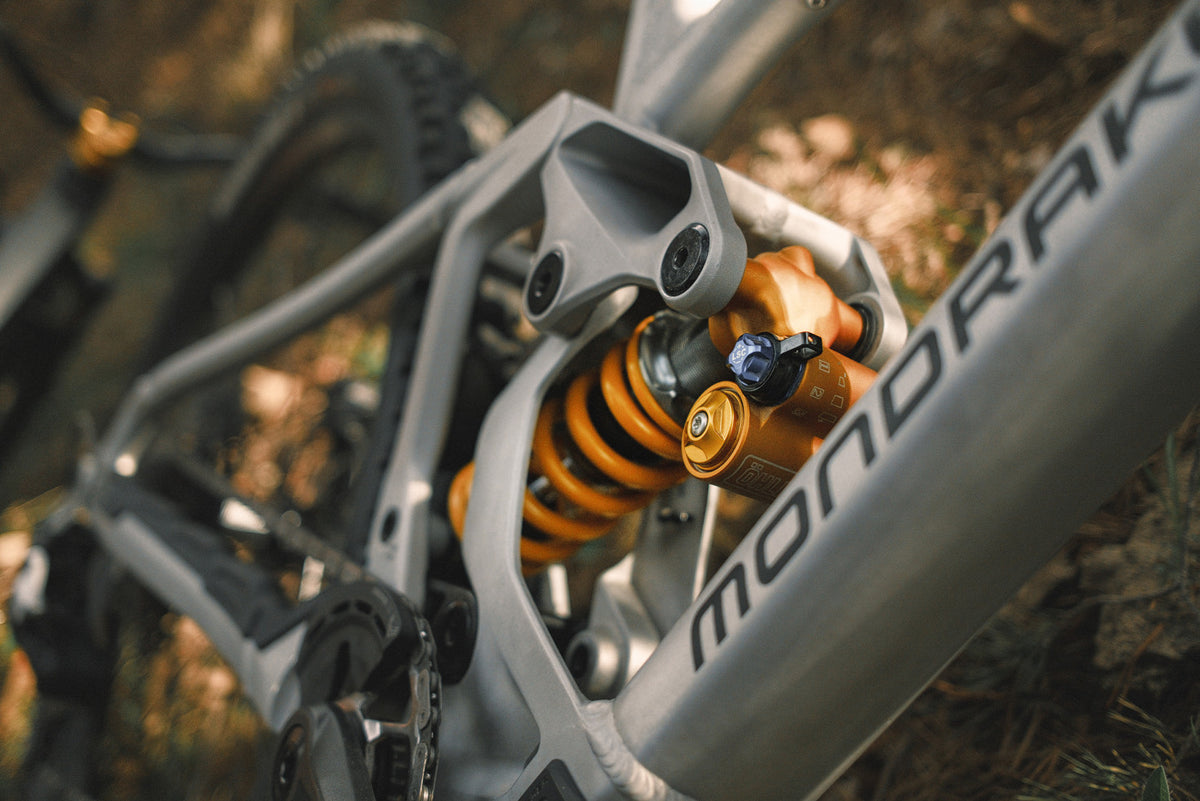

Rear shock: Öhlins TTX 22M.2 Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound. Trunnion top mount, 30x8mm bottom bushings

Weight: 17,9 kg

See All Specs

Geometry & Size Guide

ColorRaw Aluminium

Frame Size S M ML L XL

Mondraker - ANARK XR

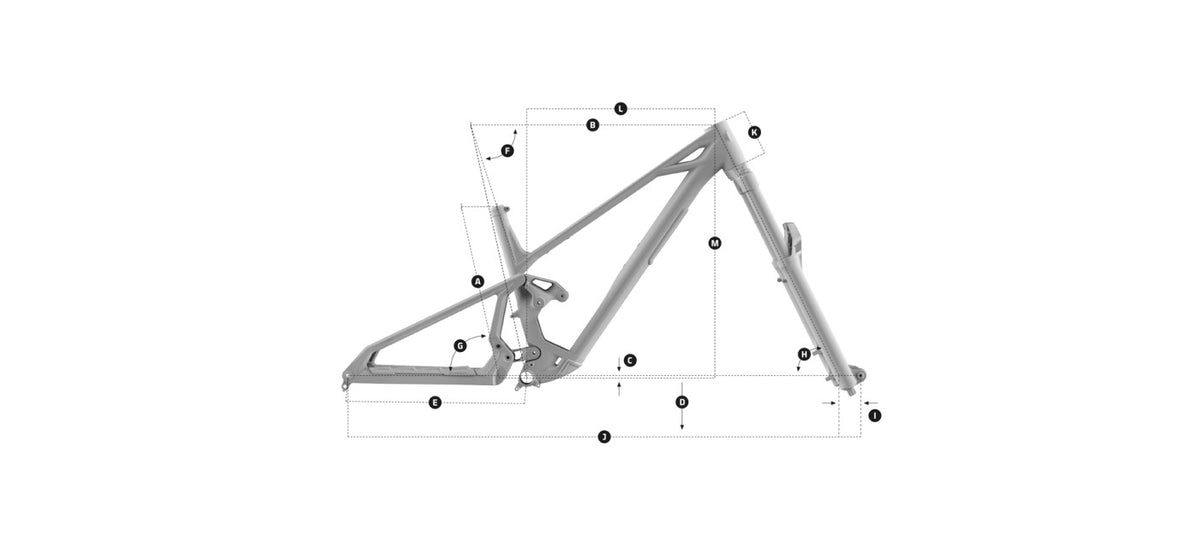

Geometry

	Frame size	S	M	ML	L	XL
A	Seattube length	380 mm 14.96"	410 mm 16.14"	435 mm 17.13"	460 mm 18.11"	490 mm 19.29"
B	Toptube length	583 mm 22.95"	603 mm 23.74"	625 mm 24.61"	647 mm 25.47"	669 mm 26.34"
C	Bottom bracket drop	-10 mm -0.39"	-10 mm -0.39"	-10 mm -0.39"	-10 mm -0.39"	-10 mm -0.39"
D	Bottom bracket height	346 mm 13.62"	346 mm 13.62"	346 mm 13.62"	346 mm 13.62"	346 mm 13.62"
E	Chainstay length	445 mm 17.52"	445 mm 17.52"	445 mm 17.52"	445 mm 17.52"	445 mm 17.52"
F	Seat tube angle	74°	74°	74°	74°	74°
G	Effective seattube angle	77.5°	77.5°	77.5°	77.5°	77.5°
H	Headtube angle	63.5°	63.5°	63.5°	63.5°	63.5°
I	Fork Offset	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"	44 mm 1.73"
J	Wheelbase	1241 mm 48.86"	1261 mm 49.65"	1285 mm 50.59"	1310 mm 51.57"	1334 mm 52.52"
K	Headtube length	110 mm 4.33"	110 mm 4.33"	120 mm 4.72"	130 mm 5.12"	140 mm 5.51"
L	Reach	440 mm 17.32"	460 mm 18.11"	480 mm 18.90"	500 mm 19.69"	520 mm 20.47"
M	Stack	644 mm 25.35"	644 mm 25.35"	653 mm 25.71"	662 mm 26.06"	671 mm 26.42"
