Infinity Disc

Home › Components

Road

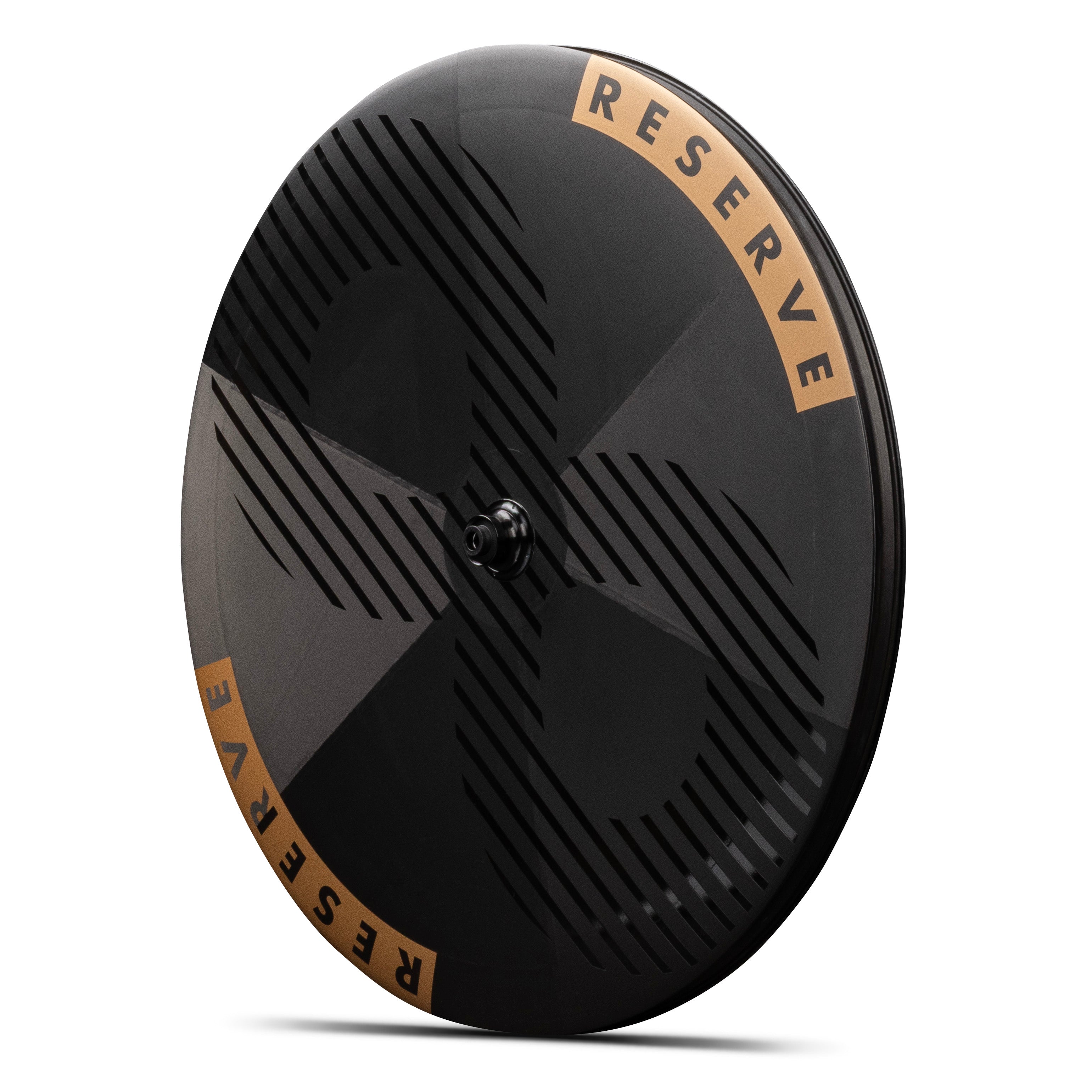

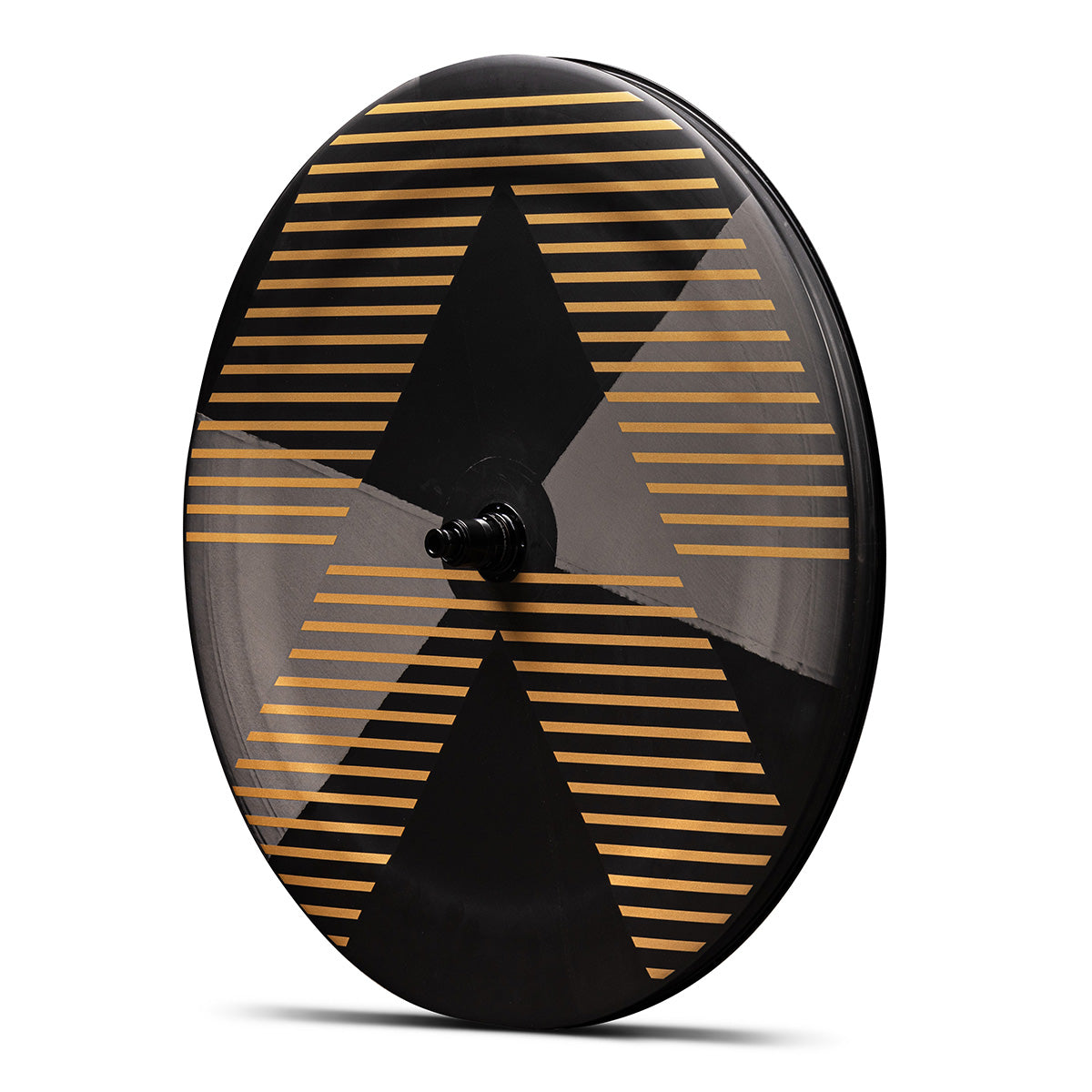

Infinity Disc

€2,199.00 EUR

Size 700c

Hub Front Rear

Freehub - Rotor NA / Centerlock XDr & HG-EV / Centerlock

Now available individually in front- and rear-only options, Reserve Infinity Disc wheels are your weapon of choice against the clock and the wind. Blending uncompromising aerodynamics with speed and stability, the Infinity Disc was raced by Team Visma's Wout van Aert to Olympic Silver at the '24 Paris Games.

With an updated internal profile optimized for wider tires and improved airflow, the outer shape of the carbon surface creates a powerful "sail effect" at key yaw angles, turning crosswinds into forward momentum. When every watt counts and every millisecond matters, trust the proven speed and absolute confidence of the Infinity Disc.

See Full Specs

Engineered to take you further, faster, for longer.

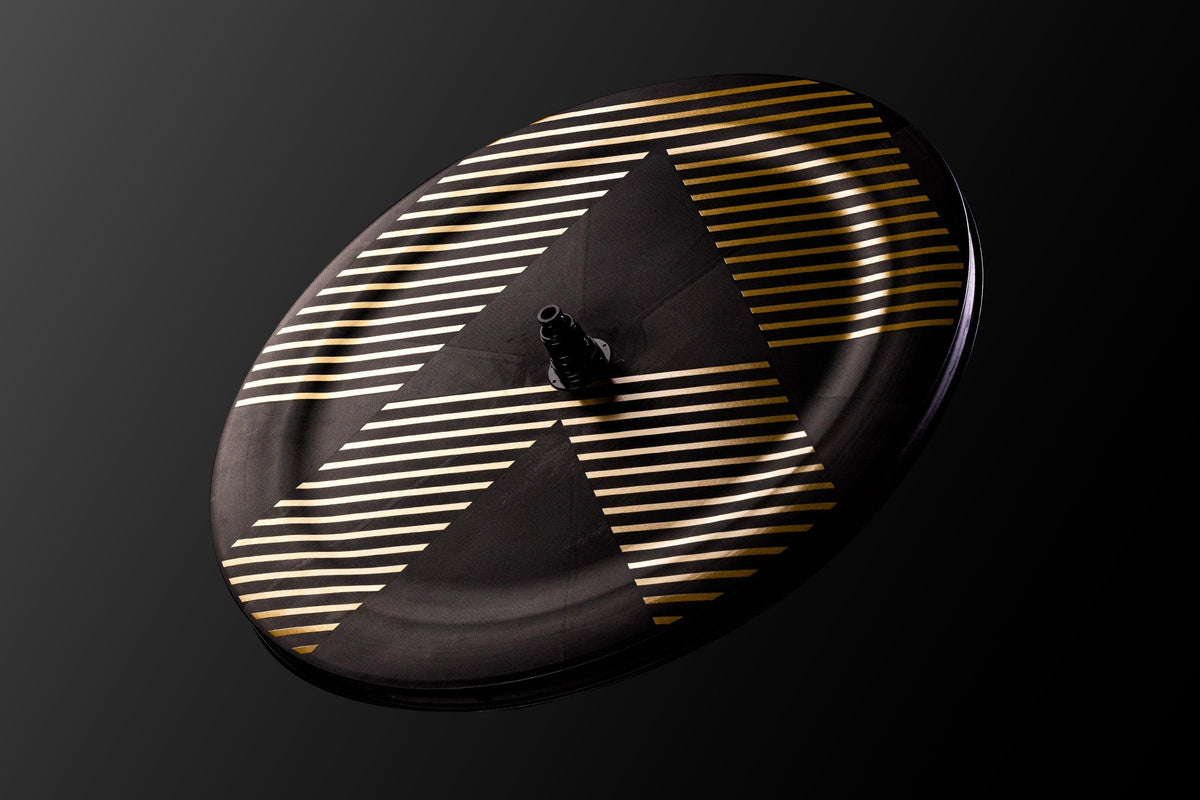

Disc Design

The Infinity Disc is designed with Turbulent Aero technology, which provide the perfect balance between stability and aerodynamics, reducing reaction to cross winds, while also minimizing drag.

Team Visma Race Tested

Designed to be tested at the highest levels of competition, the Reserve Infinity Disc wheels are pivotal in delivering the best athletes in the world the advantage they need.

Bonded Rear Hub

Both our front and rear Infinity Disc have bonded-in hubs to ensure maximum strength and stiffness. Our rear option includes both the XDr and HG-EV driver bodies, so you can run the groupset of your choice.

Details

Designed For TT, triathlons, track racing

Wheelset Weight 2180g

Rim Weight Front 1055g, Rear 1112g

Inner Width Front 25.2mm, Rear 24.5mm

External Width Front 33mm, Rear 32mm

Depth Disc Front and Rear

ETRTO Front 25-622, Rear 25-622

Recommended Tire Dimensions 28mm - 35mm

Tire Compatibility Tubeless, Clincher

Spoke Count N/A

Hub Spacing F 100mmX12mm, R 142mmX12mm

Freehub Options XDR + HG-EV

Disc Style Option Centerlock

ERD Disc

FAQ

What is the maximum pressure for your rims?

Road rims: 100 psi (6.9 bar). Gravel rims: 80 psi (5.5 bar).

Always defer to the tyre manufacturer's stated maximum if it is lower than the rim's — the lower of the two figures is the one to run.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

Yes. We offer a full wheelbuilding service at Legend Bikes — send us your hubs, or choose hubs with us, and our workshop will build them to your Reserve rims. We also sell rim-only options if you'd prefer to have the wheels built elsewhere. Get in touch and we'll talk through spoke count, lacing and hub compatibility for your bike.

Where can I find more tech spec information?

The full technical specification for this wheel — ERD, rim widths, spoke count, hub spacing, freehub and rotor options — is listed in the Details section further down this page. If you need a figure that isn't there, contact us and we'll get it for you.

What's included in the box?

Complete wheelset:

• Fillmore valves

• Rim tape (fitted)

• User manual

Rim only:

• Fillmore valves

• Rim tape (not fitted)

• User manual

Who is the manufacturer on record?

Manufacturer:

Santa Cruz Bicycles, LLC
