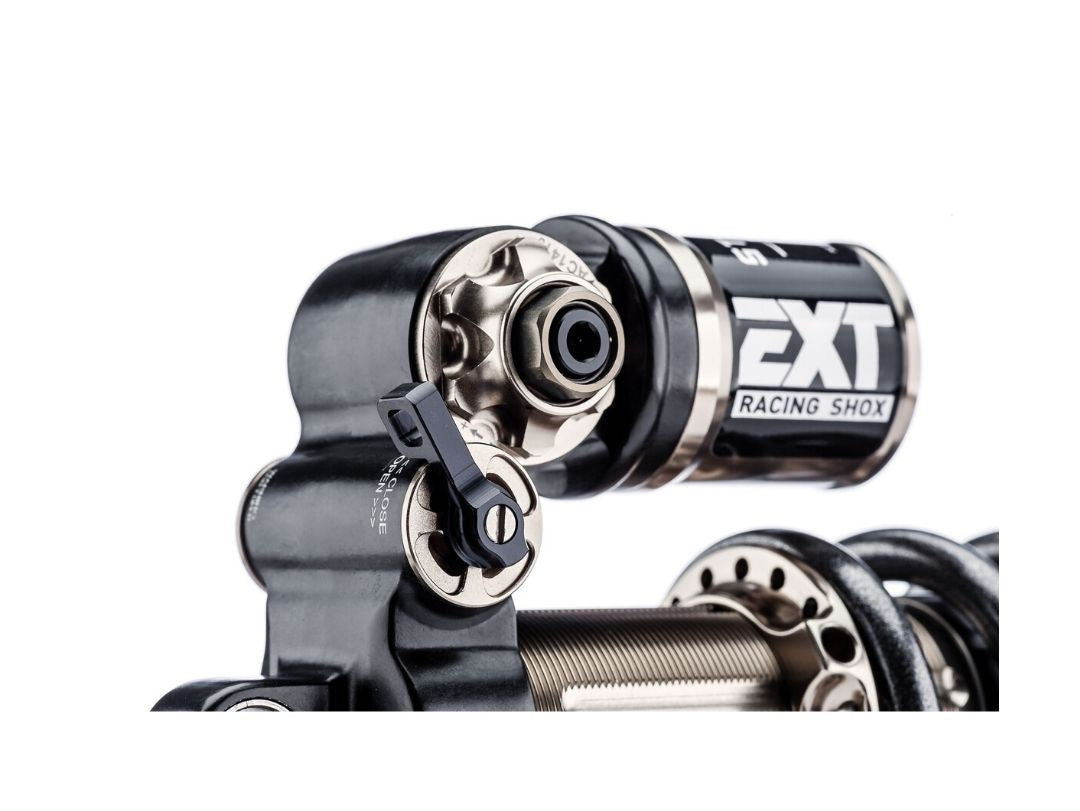

EXT STORIA LOK V3 SHOCK
EXT STORIA LOK V3 SHOCK
Product Details
DESCRIPTION:
As the previous STORIA model, V3 offers the revolutionary LOK Technology that allows a complete compression separate lock-out system, now totally renewed with a new design, a more progressive opening, and a totally silent working.
In order to allow every rider to use a softer spring rate and increase bike traction and handling, EXT engineers have imported from ARMA the hydralic bottom out system named HBC (Hydraulic Bottom-out Control), capable to develop more than 50% of hydraulic force only on the last part of the stroke, allowing riders to avoid any kind of bottom-out issues.
This technology allows the use of thinner bottom-out bumpers, increasing the amount of useful travel.
STORIA V3 is designed to serve those customers who want maximum performance of a pedal-platform equipped shock, with a great support on the last millimeters of bike rear travel, with the great performance of a coilover shock.
FEATURES:
– Metric and Imperial sizing – Standard or Trunnion mount
– 4 way adjustable (LSC-HSC-LSR-Lok proprietary system)
– High flow Ø29 mm main piston
– Ø24 mm valve piston
– Ø14 mm shaft
– New Lok Technology – Progressive opening – Silent working
– Engineered rebound circuit to separate bump and rebound oil flow
– Ultra low-friction coating
– Factory tuned HBC technology
– Very low reservoir pressure for maximum sensitivity (55 PSI)
– Full custom hydraulic setup available
– No cavitation
– Very low hysteresis for high dynamic response
– High turbulent flow for very low temperature depending
– Low friction Energize seal
– Thinner bottom-out bumper

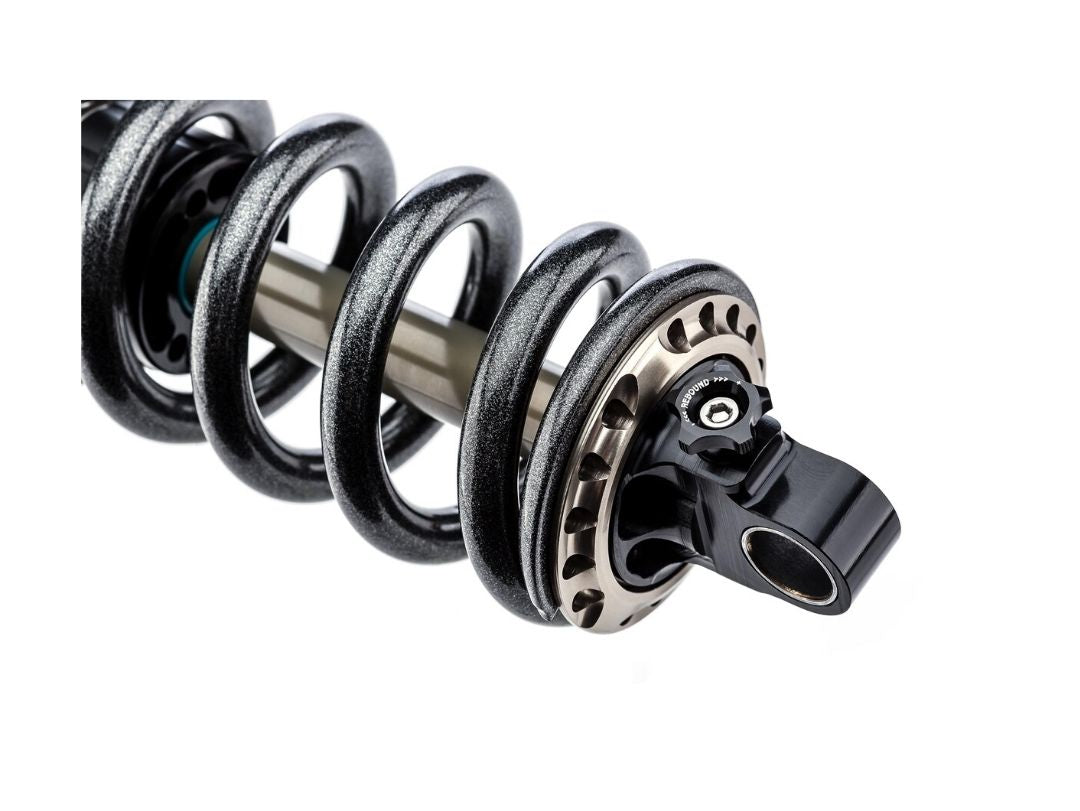

– New rebound knob for easy spring swap
Weight: 636 gr.
(200×57 mm. Standard mount – 375 lbs. spring)
AVAILABLE LENGHTS / STROKE
IMPERIAL
190 / 51 mm
200 / 57 mm
216 / 63.5 mm
222 / 67 mm
METRIC STANDARD
210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 67.5 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm
METRIC TRUNNION
185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 67.5 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm
Important: IT WILL TAKE UP TO 2 WEEKS FOR DELIVERY. We will be reaching you directly as some more information is needed for the shock be perfectly tuned.
