E-Bike Specific

€1,999.00 EUR

Wheel Size 29"

Hub I9 1|1

Freehub - Rotor Microspline / Centerlock

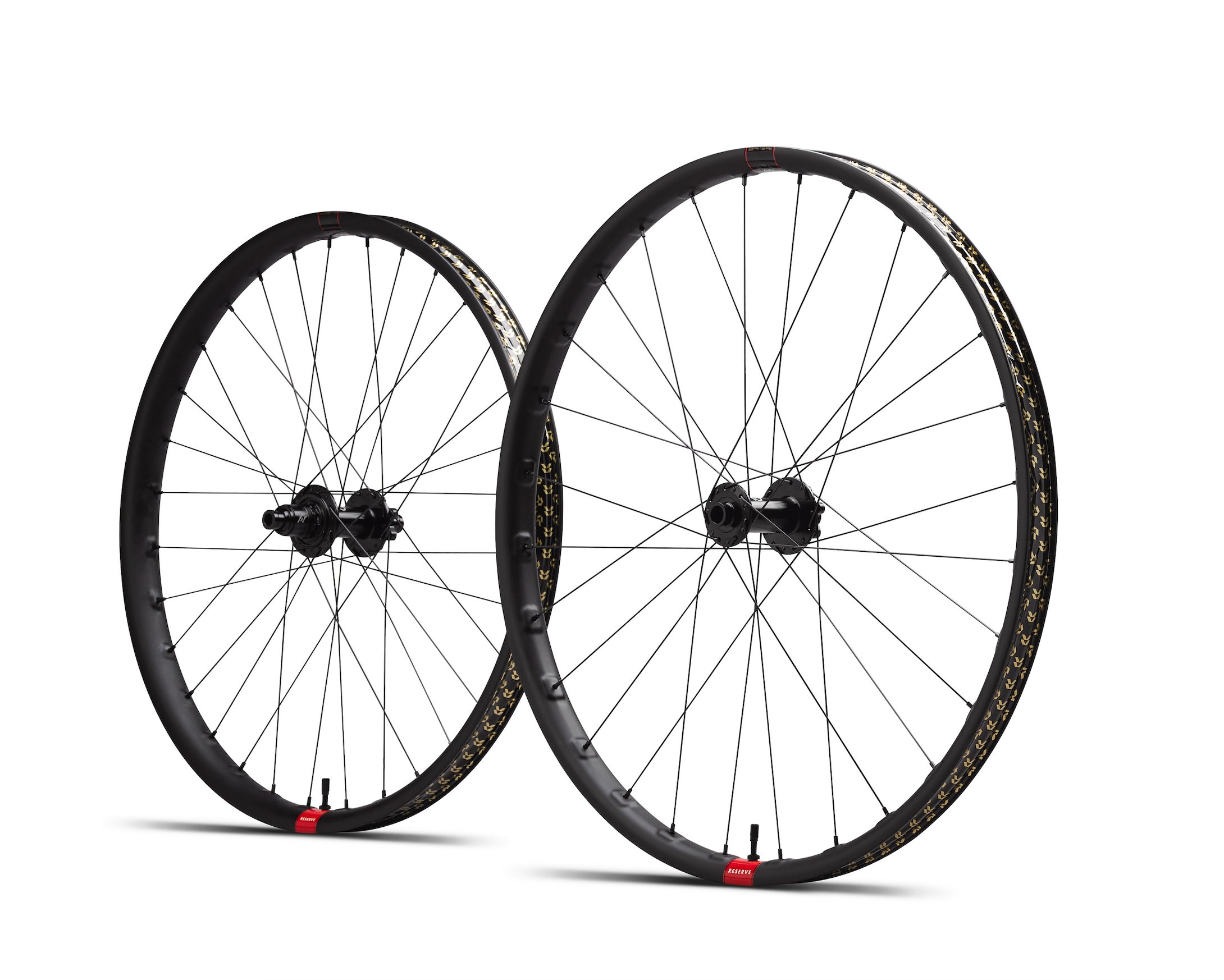

The Reserve 30|HD front 31|DH rear is the wheelset for those of you are especially hard on wheels or need just that added bit of stiffness. Combining our 30|HD front wheel with our World Championship-proven 31|DH rear wheel, this wheelset is designed to provide stability and confidence when you are squaring off turns and diving for the inside lines.

See Full Specs

Engineered to take you further, faster, for longer.

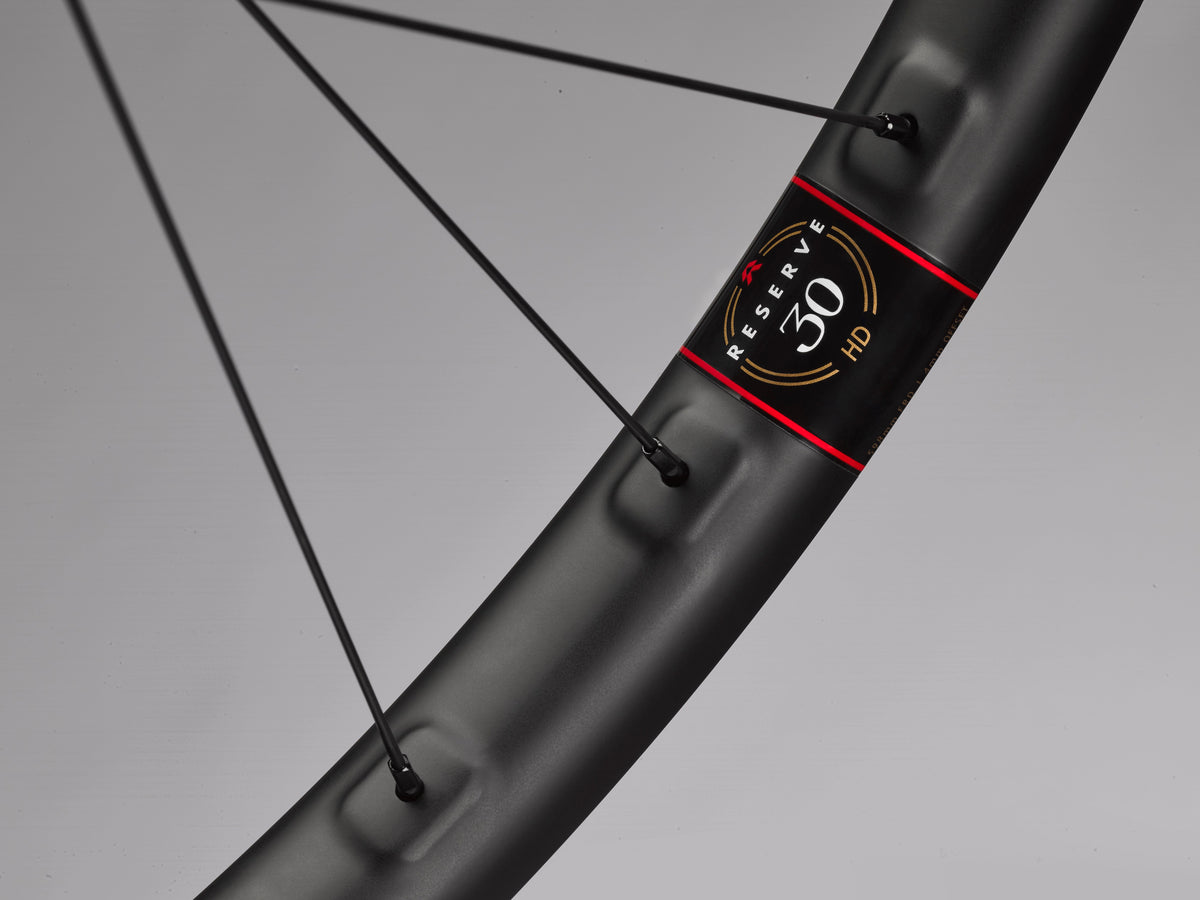

Spoke Reinforcements

Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.

Redesigned Rim Bed

The 30|HD and 31|DH's redesigned rim beds ease tubeless installation, with a shape that utilizes offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.

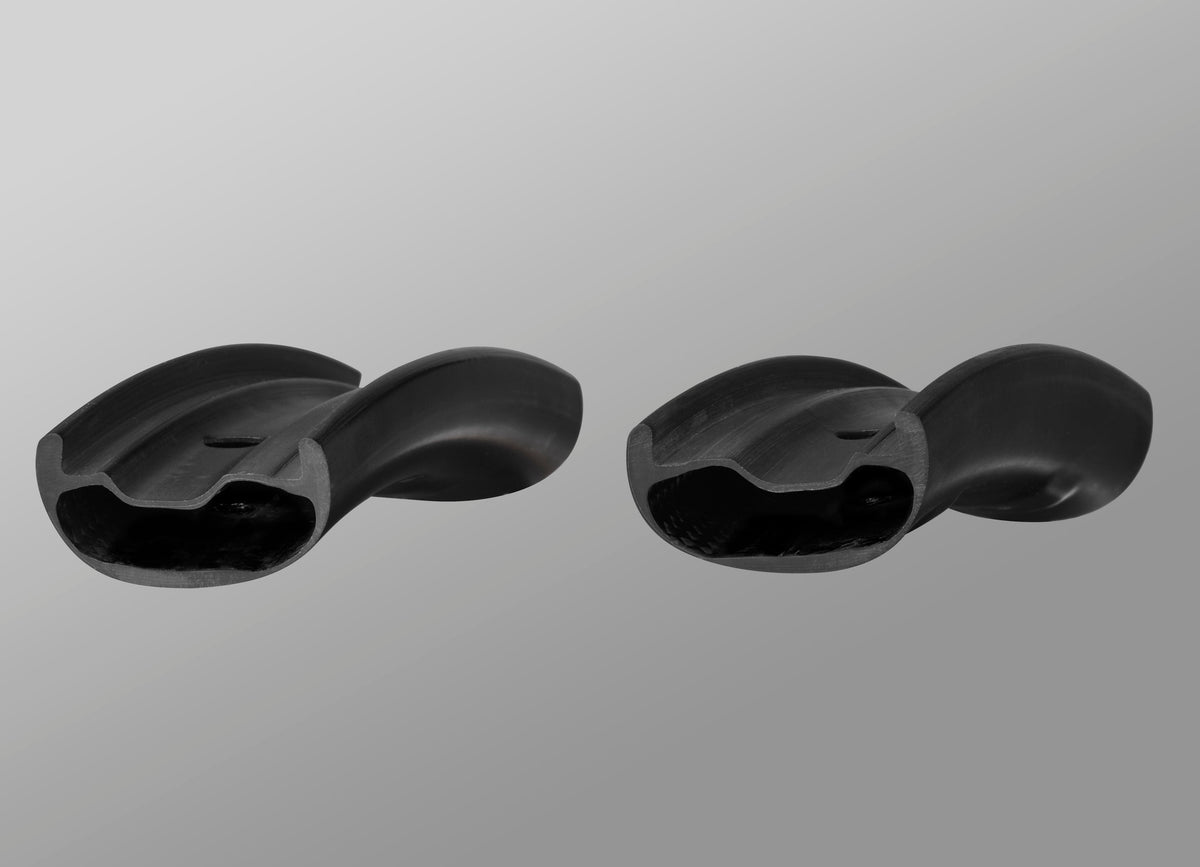

Asymmetrical Design

Asymmetrical rims front and rear make for a stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.

Details

Designed For Trail, All Mountain, Enduro, E-Bike

Wheelset Weight Industry 9 1 1 - 1916g

ERD 559

Inner Width Front 30mm, Rear 31mm

Recommended Tire Dimensions 2.3 to 2.6

Spoke Count 28 F / 32 R

Hub Spacing Boost 15X110 F, 148X12 R

E-Bike Approved Yes

Not Sure Which Wheelset is Right For You? Watch This Short Video:

FAQ

What's with the raised square-shaped area around the spokes?

That's Reserve's spoke-hole reinforcement. Extra carbon is added exactly where the rim takes the most load — around the spoke nipple — so the wheel gains strength without carrying extra weight everywhere else.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

Yes. We offer a full wheelbuilding service at Legend Bikes — send us your hubs, or choose hubs with us, and our workshop will build them to your Reserve rims. We also sell rim-only options if you'd prefer to have the wheels built elsewhere. Get in touch and we'll talk through spoke count, lacing and hub compatibility for your bike.

Where can I find more tech spec information?

The full technical specification for this wheel — ERD, rim widths, spoke count, hub spacing, freehub and rotor options — is listed in the Details section further down this page. If you need a figure that isn't there, contact us and we'll get it for you.

What's included in the box?

Complete wheelset:

• Fillmore valves

• Rim tape (fitted)

• User manual

Rim only:

• Fillmore valves

• Rim tape (not fitted)

• User manual

Who is the manufacturer on record?

Manufacturer:

Santa Cruz Bicycles, LLC
