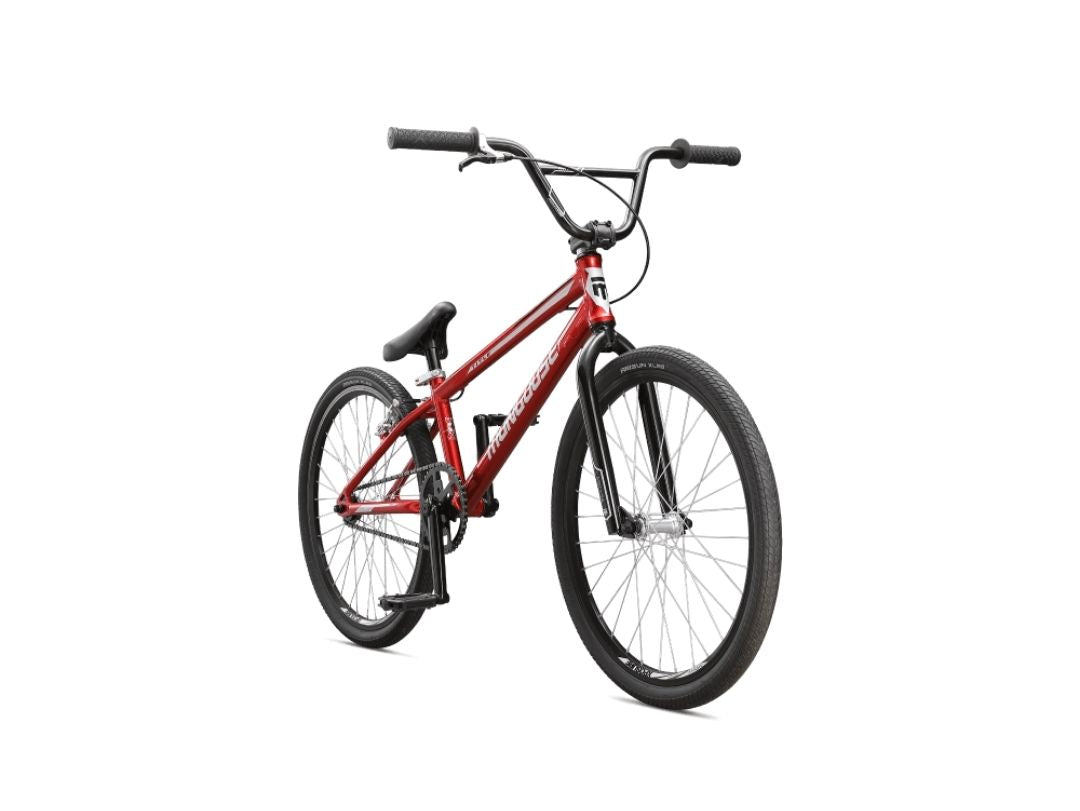

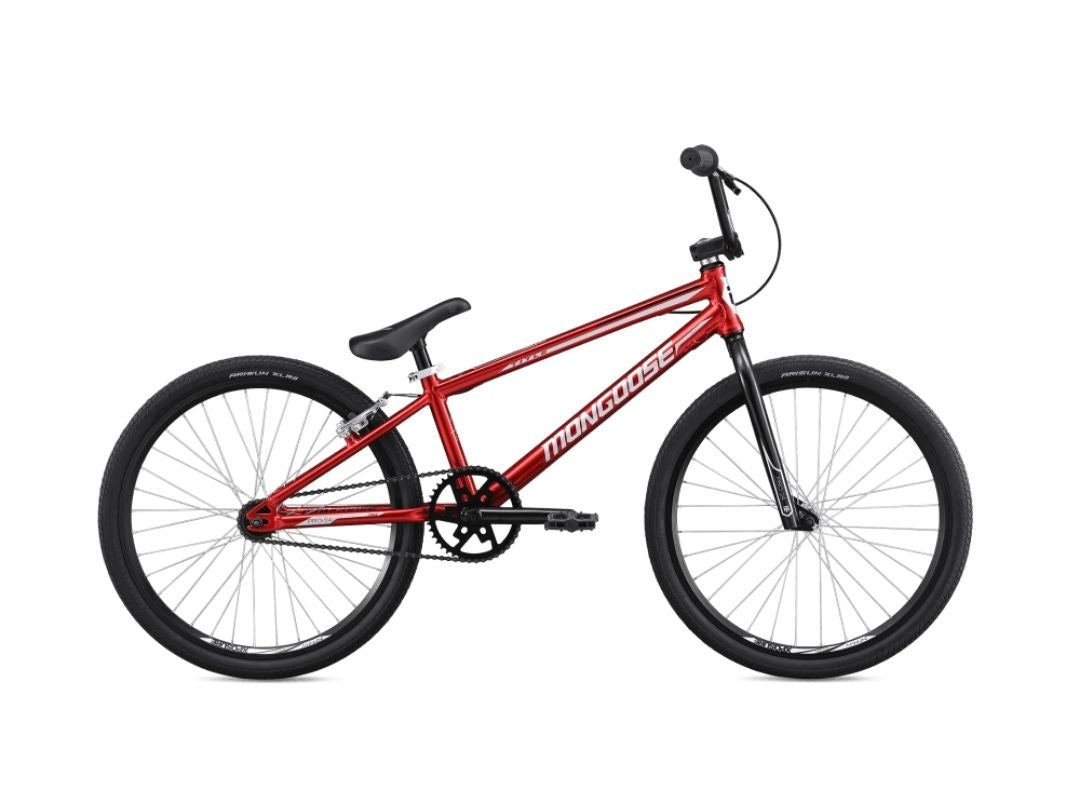

BMX MONGOOSE TITLE CRUISER RED 2021

DESCRIPTION :

• Lightweight Tectonic T1 aluminum frame, integrated headset, and internal cable routing
• 42/18T drivetrain; 3-piece chromoly 175 mm tubular crank
• 24” wheels with Arisun XLR8 1.75” race tires
• Mongoose® Hi-Ten 6.5” handlebar; front loader 48 mm stem

Data sheet

ANGLE DIRECTION

74°

ANGLE TUBE SELLE

71°

CHAINSTAY LENGTH

364mm

FRAME

Tectonic® T1 aluminum 21,75'' TT; integrated headset & internal cable routing

CHAIN

KMC® S1

COLOR

RED

GEARING

44 x 16

SEAT POST CLAMP SIZE

31,8mm

BRAKE CANTILEVER

V-Brake Alloy

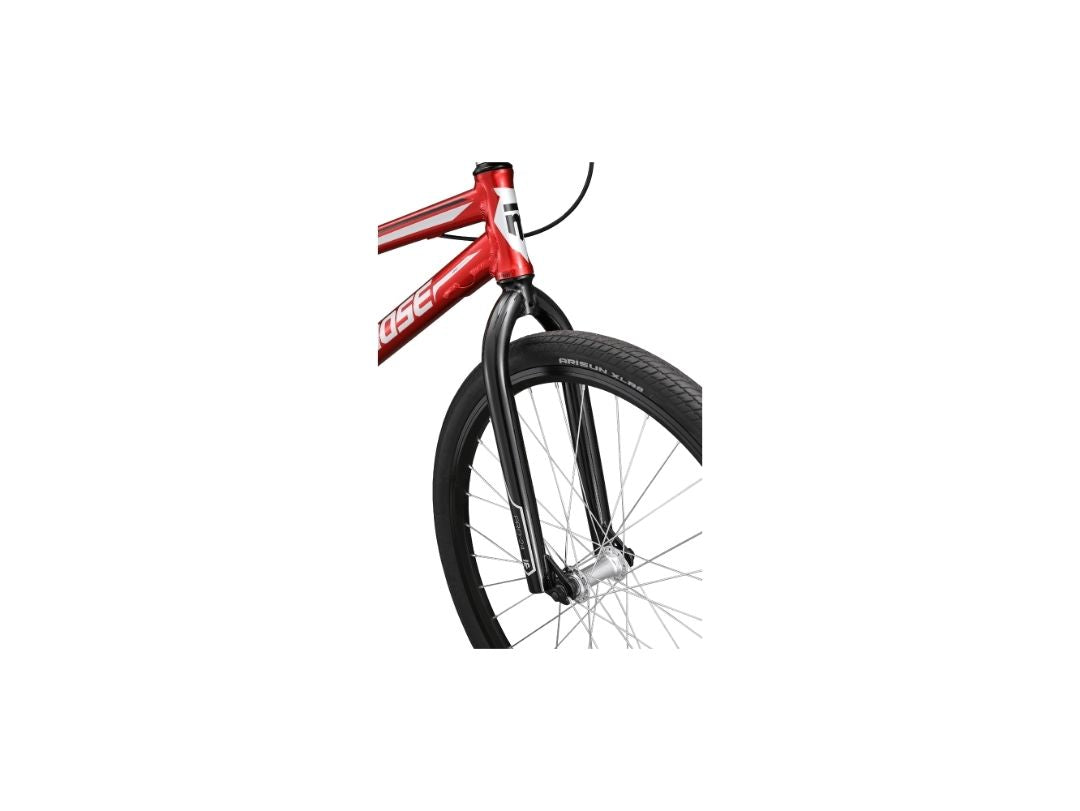

FORK

Mongoose Race 1’’-1/8 / Hi-Ten

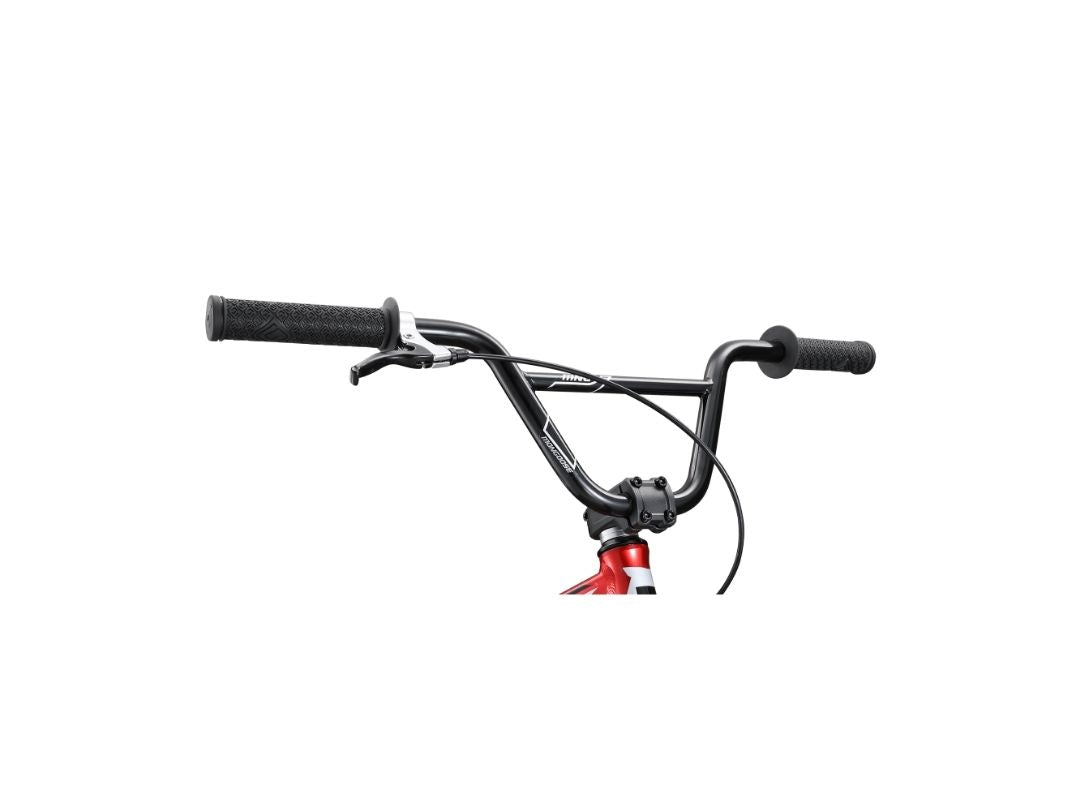

HANDLEBAR

Mongoose Hi-Ten 6,5" / 27.5" in width

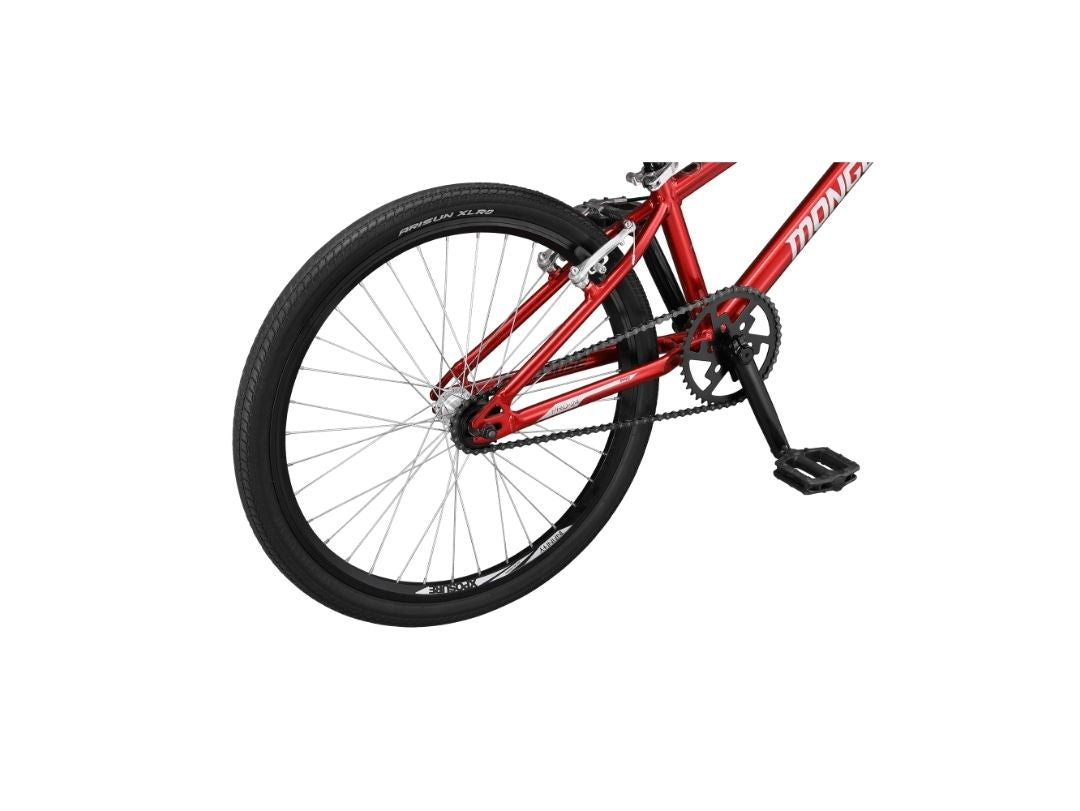

REAR RIM

Xposure® alloy double-wall, 36H

FRONT RIM

Xposure® alloy double-wall, 32H

HEADSET

Integrated 1”-1/8

BRAKE LEVIER

Alloy

REAR HUB

Alloy, 3/8" axle; 36H, 16T freewheel; ball bearing

FRONT HUB

Alloy, 3/8" axle; 32H; ball bearing

PEDALS

Plastic body with 9/16" axle

CRANKS

3-piece tubular cromo,175 mm / Euro BB

SPROCKET

44 T – 1 point

TIRES

Front Arisun XLR8 20x1.95" / Rear Arisun XLR8 20x1.75"; wire bead

WEIGHT

10,35kg

GRIPS

Mongoose Gate, 145mm

STEM

Mongoose Top Load – 48 mm

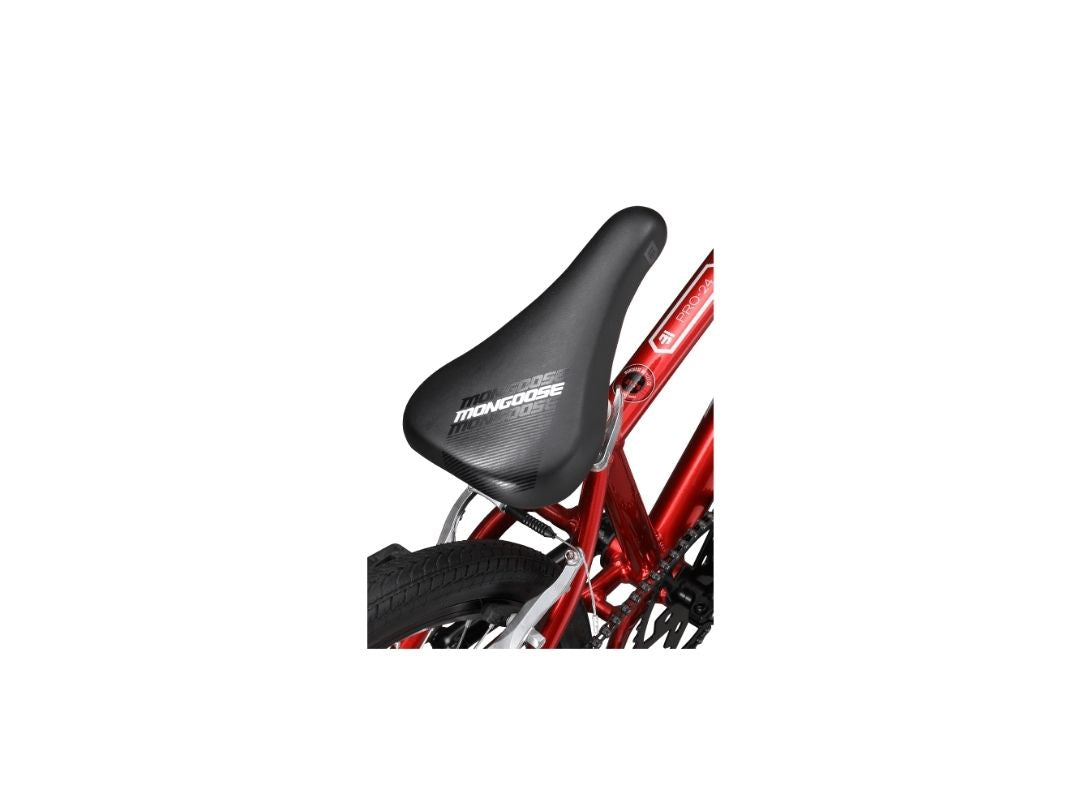

SEAT

Combo Mongoose

STANDOVER

530mm

CHAIN TENSIONER

Not included

SEAT POST

Integrated 27.2mm

TOP TUBE

540mm

BB TYPE

Euro
