BMX MONGOOSE L16 GREEN 2021

DESCRIPTION :

Mongoose L16 is a 16 '' bmx for children who want to enjoy in pumptrack and skatepark !

Side equipment the L16 incorporates a transmission 25 x 9, perfect to drop his first curves without risk !

FRAME GEOMETRY:

• TOP TUBE : 15.3''
• CHAINSTAY : 12"
• HEAD TUBE ANGLE : 75°
• SEAT TUBE ANGLE : 71°

Data sheet

ANGLE DIRECTION

74°

ANGLE TUBE SELLE

71°

CHAINSTAY LENGTH

305mm

FRAME

1020 Steel hi-ten, top tube : 15,30’’

CHAIN

KMC S1

COLOR

GREEN

GEARING

25x9

SEAT POST CLAMP SIZE

25,4mm

BRAKE CANTILEVER

U-Brake aluminium

FORK

Hi-Ten steel 16" 1" threaded steerer 3/8" x 100 mm

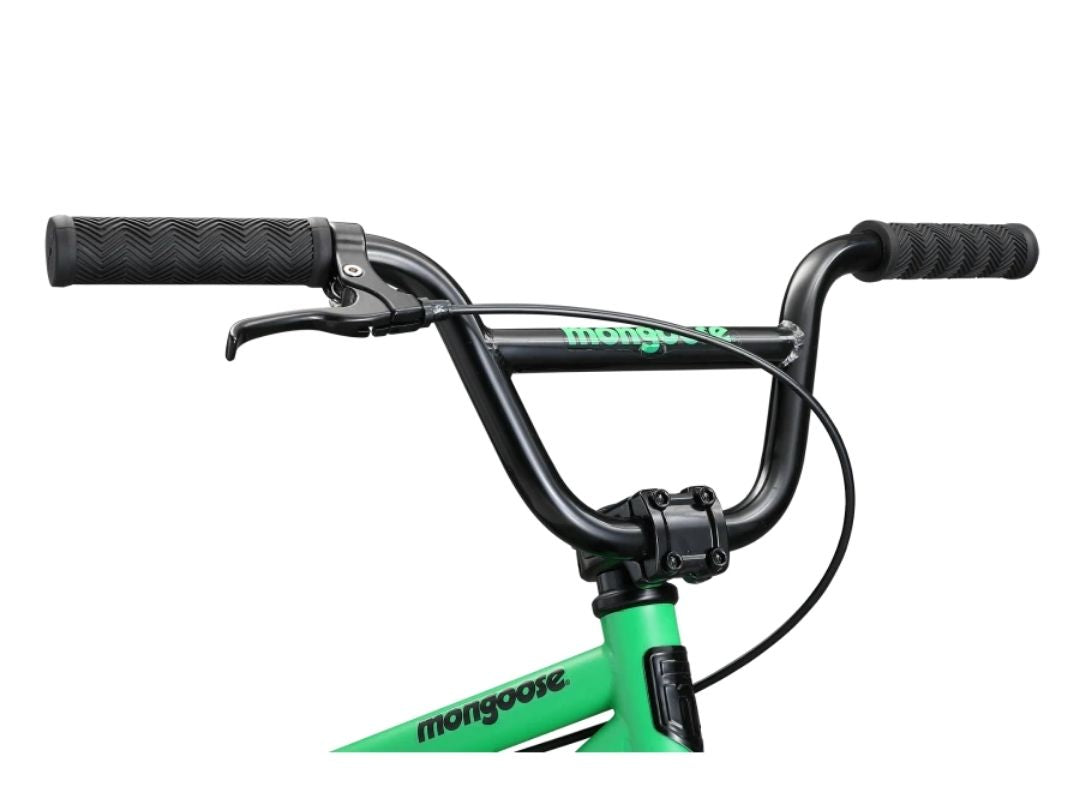

HANDLEBAR

MONGOOSE hi-ten Steel 6'' / 22,5''

REAR RIM

Aluminium single wall 28H

FRONT RIM

Aluminium single wall 28H

HEADSET

External 1-1/8''

BRAKE LEVIER

Aluminum

REAR HUB

Aluminium 10mm axel. Driver 9T, ball bearing

FRONT HUB

Steel 10mm axle, ball bearing

PEDALS

Mongoose nylon

CRANKS

Monobloc 140mm

PEGS

Not included

SPROCKET

Steel 25T

TIRES

16 x 2.3"

GRIPS

MONGOOSE Zig, 130mm

STEM

Mongoose FrontLoad, 48mm

GYRO

No

SEAT

Mongoose rail

STANDOVER

465mm

WHEEL SIZE

16''

RIDER SIZE

1m10 - 1m25

SEAT POST

Steel 25.4mm

TOP TUBE

388mm

BB TYPE

US (51.3mm)

REAR HUB TYPE

CASSETTE
