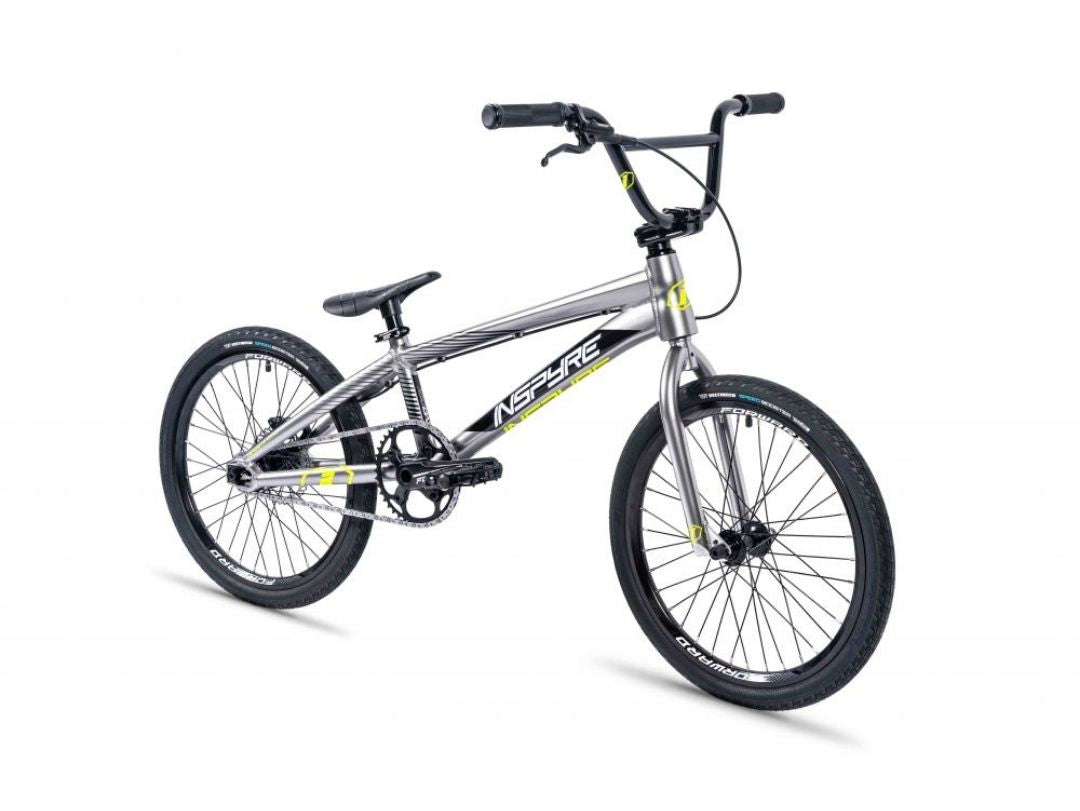

BMX INSPYRE EVO DISK EXPERT XL 2021

DESCRIPTION :

The EVO Disk, designed to be "Race Ready" right out of the box, is still evolving with 2 new features !

The braking system has been upgraded. The EVO Disk range is now equipped with a Shimano MT200 disc brake, offering high-end braking.

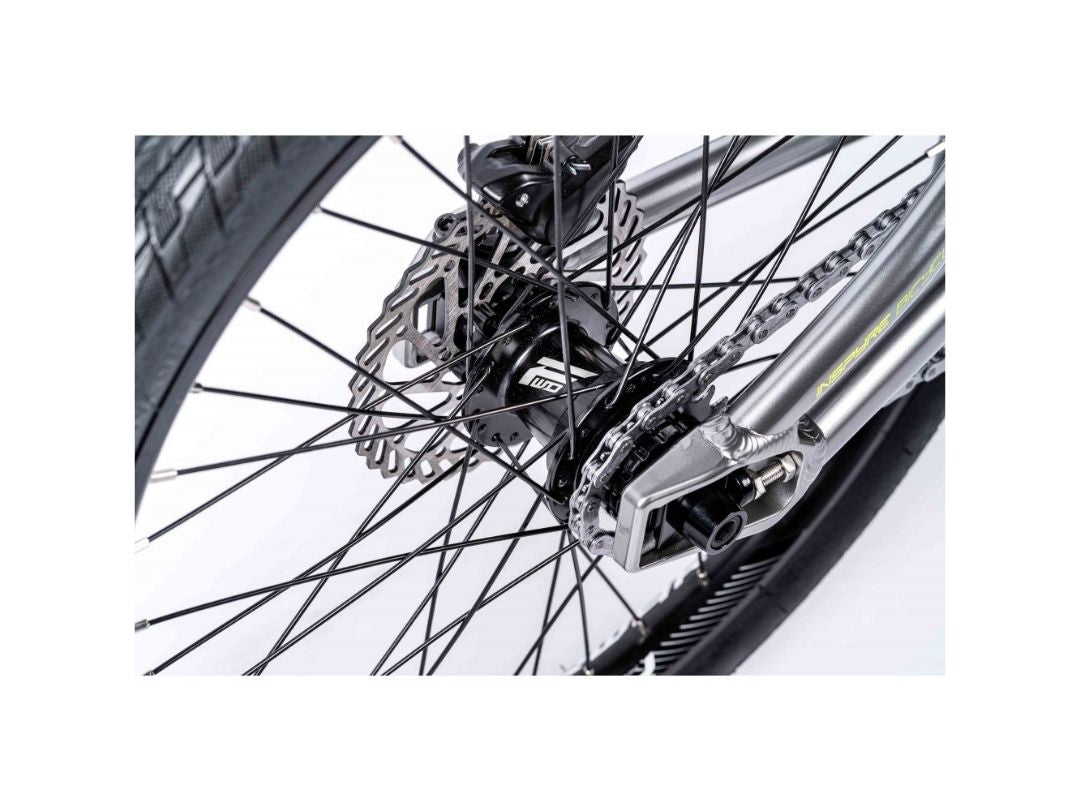

The Forward Joyride V2 rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.

IN DETAIL:

  • 6061-T6 Aluminum frame - Hydroformed Tubes

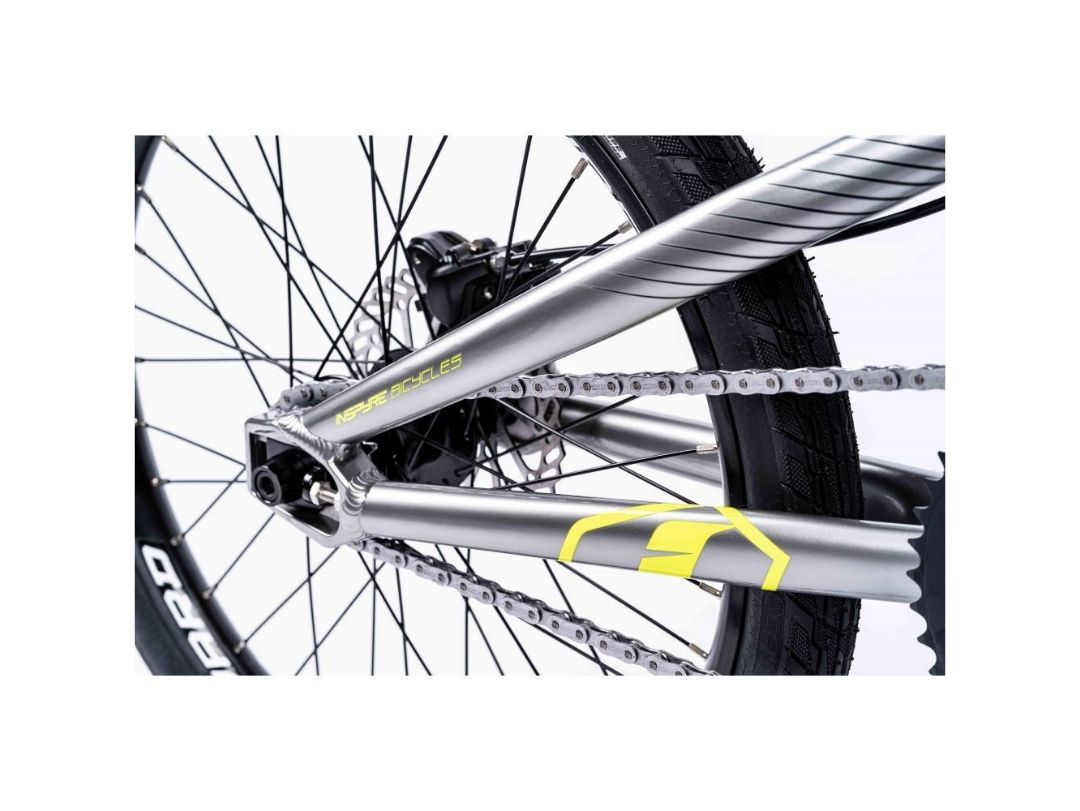

  • Closed SWELL dropouts with tensioners
  • Tapered head tube from Expert XL
  • Forward Joyride AM 2 pieces external BB crankset
  • Forward Joyride V2 rear hub 6 pawls 150 engagement points, new and larger hub body NEW
  • Forward Joyride V2 front hub female bolts and sealed bearings NEW
  • Forward Joyride double wall rims
  • Shimano MT200 hydraulic disc brake 140mm NEW
  • Vee Speedbooster tires NEW

SPECS:

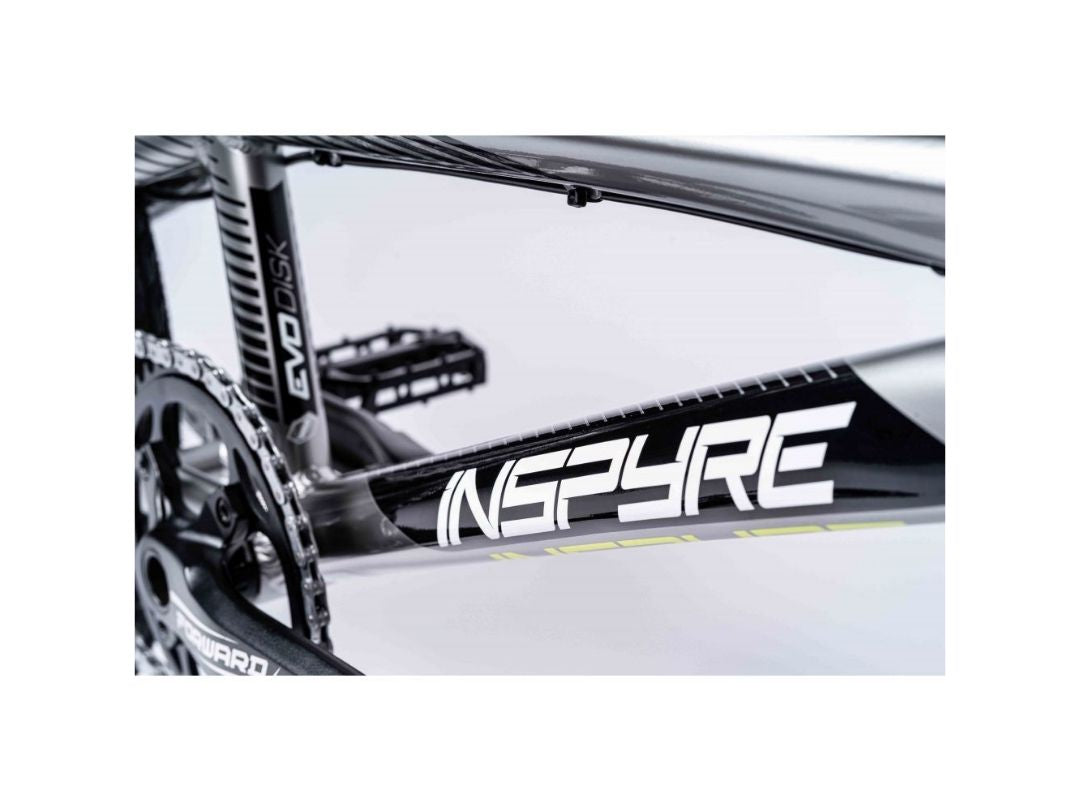

  • FRAME : Inspyre Evo Disk Expert XL - 20,25’’ Premium Alu 6061-T6 - Tubes hydroformed triple butted - Dopout Swell 3D forged
  • COG : 16T - 1/2’’ x 3/32’’
  • CHAIN : KMC® Z1 EHX - 1/2’’ x 3/32’’
  • SPROCKET : Aluminium 4 points 41T - 110mm
  • GEAR : 41 x 16
  • SEAT CLAMP DIAM. : Forward AM 31,8mm
  • DISC : Forward Joyride AM 140mm
  • BRAKE : Shimano MT200 hydraulique
  • FORK : Inspyre Evo - 100% Chromoly - Steerer 1-1/8'' - Tapered legs
  • BAR : Inspyre Evo - Aluminium 6.5’’ x 26’’ - BS : 9° / US : 2°
  • REAR RIM : Forward Joyride - Aluminium 36H - Double walls
  • FRONT RIM : Forward Joyride - Aluminium 36H - Double walls
  • HEADSET : Semi Integrated - Ring bearings - IS42,2 | IS52,2

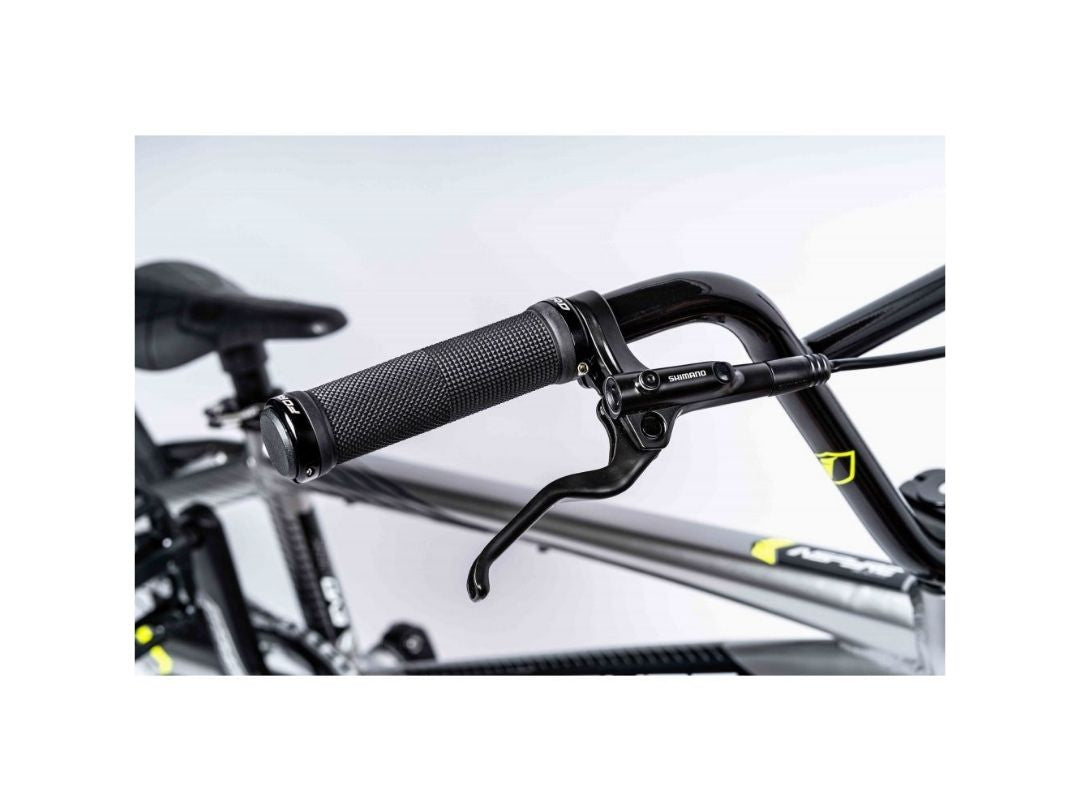

  • BRAKE LEVER : Shimano MT200 hydraulic
  • REAR HUB : Forward Joyride V2 Disc - Body aluminium Cassette 36H - 10mm - 100% ring bearings - 150 engagement points  - 6 pawls - Female bolts
  • FRONT HUB : Forward Joyride V2 - Body aluminium 36H - 10mm - 100% ring bearings - Female bolts
  • PEDALS : Alu 9/16
  • CRANKSET : Forward Joyride AM 2 pieces - 4 Points - 170mm
  • TIRES : Vee Tire® Speedbooster 20’’x1.40 (AV) / Vee Tire® Speedbooster 20’’x1.40 (AR)
  • WEIGHT : 8,8kg
  • GRIPS : Forward Lock On 130mm - Kraton

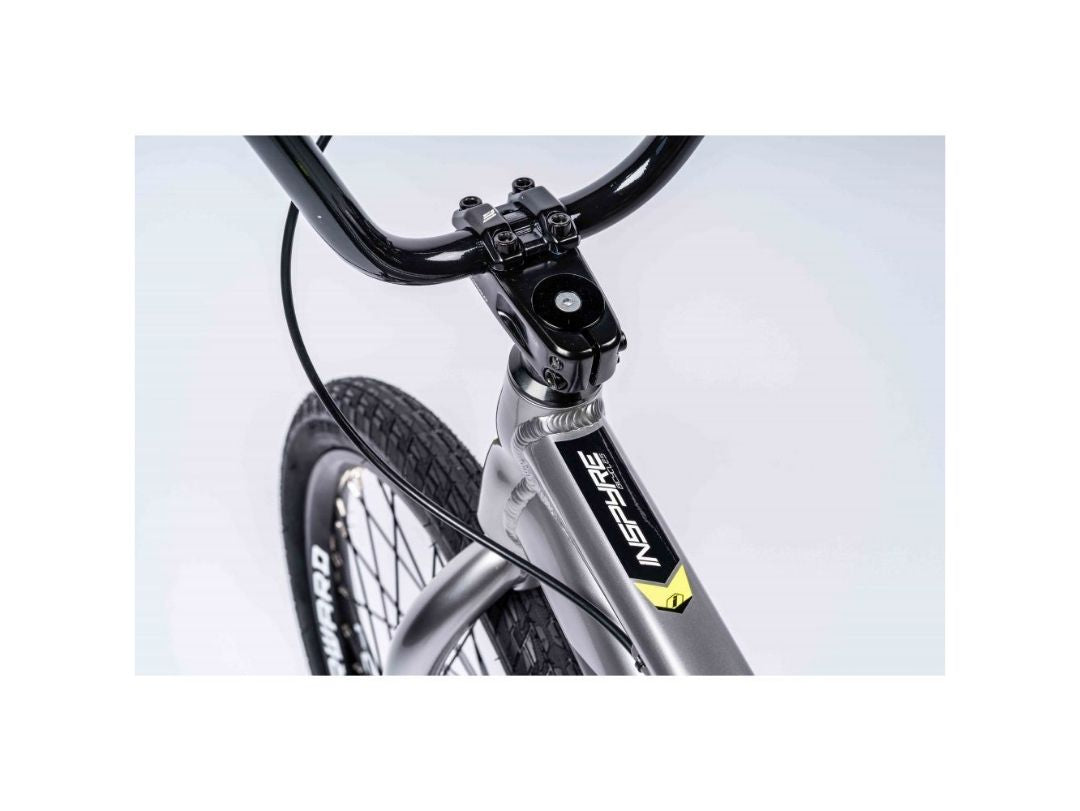

  • STEM : Forward - Top Load - Aluminium 6061-T6 - 50mm
  • SPOKES : Stainless 14G
  • SEAT : PC 27,2mm
  • CHAIN TENSIONERS : Swell integrated
  • TOP TUBE : 20,25"
  • BOTTOM BRACKET : External - EB24 ring bearings
  • HEAD SPOKES : Brass 14G
  • RIDER HEIGHT : 1m50 - 1m65
