BMX INSPYRE EVO-C DISK EXPERT XL 2021

DESCRIPTION :

The EVO-C Disk, designed to be "Race Ready" right out of the box, is still evolving with 2 new features !

The braking system has been upgraded. The EVO-C Disk range is now equipped with a Shimano MT200 disc brake, offering high-end braking.

The Forward Joyride V2 rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.

IN DETAIL:

• 6061-T6 Aluminum frame - Hydroformed Tubes
• Closed SWELL dropouts with tensioners
• Tapered head tube from Expert XL
• Forward Joyride AM 2 pieces external BB crankset
• Forward Joyride V2 rear hub 6 pawls 150 engagement points, new and larger hub body NEW
• Forward Joyride V2 front hub female bolts and sealed bearings NEW
• Forward Joyride double wall rims
• Shimano MT200 hydraulic disc brake 140mm NEW
• Vee Speedbooster tires NEW

SPECS:

• FRAME : Inspyre Evo Disk Expert XL - 20,25’’ Premium Alu 6061-T6 - Tubes hydroformed triple butted - Dopout Swell 3D forged
• COG : 16T - 1/2’’ x 3/32’’
• CHAIN : KMC® Z1 EHX - 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 41T - 110mm
• GEAR : 41 x 16
• SEAT CLAMP DIAM. : Forward AM 31,8mm
• DISC : Forward Joyride AM 140mm
• BRAKE : Shimano MT200 hydraulique

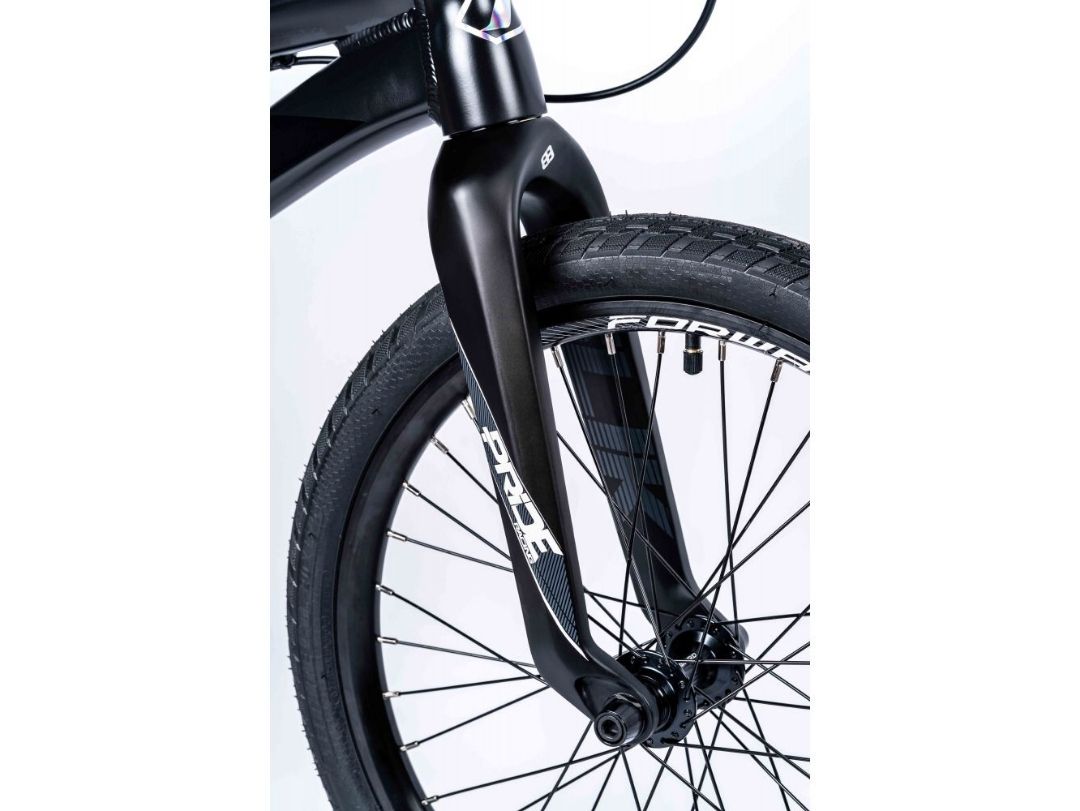

• FORK : Pride Slik carbon
• BAR : Inspyre Evo - Aluminium 6.5’’ x 26’’ - BS : 9° / US : 2°
• REAR RIM : Forward Joyride - Aluminium 36H - Double walls
• FRONT RIM : Forward Joyride - Aluminium 36H - Double walls
• HEADSET : Semi Integrated - Ring bearings - IS42,2 | IS52,2
• BRAKE LEVER : Shimano MT200 hydraulic
• REAR HUB : Forward Joyride V2 Disc - Body aluminium Cassette 36H - 10mm - 100% ring bearings - 150 engagement points  - 6 pawls - Female bolts
• FRONT HUB : Forward Joyride V2 - Body aluminium 36H - 10mm - 100% ring bearings - Female bolts
• PEDALS : Alu 9/16

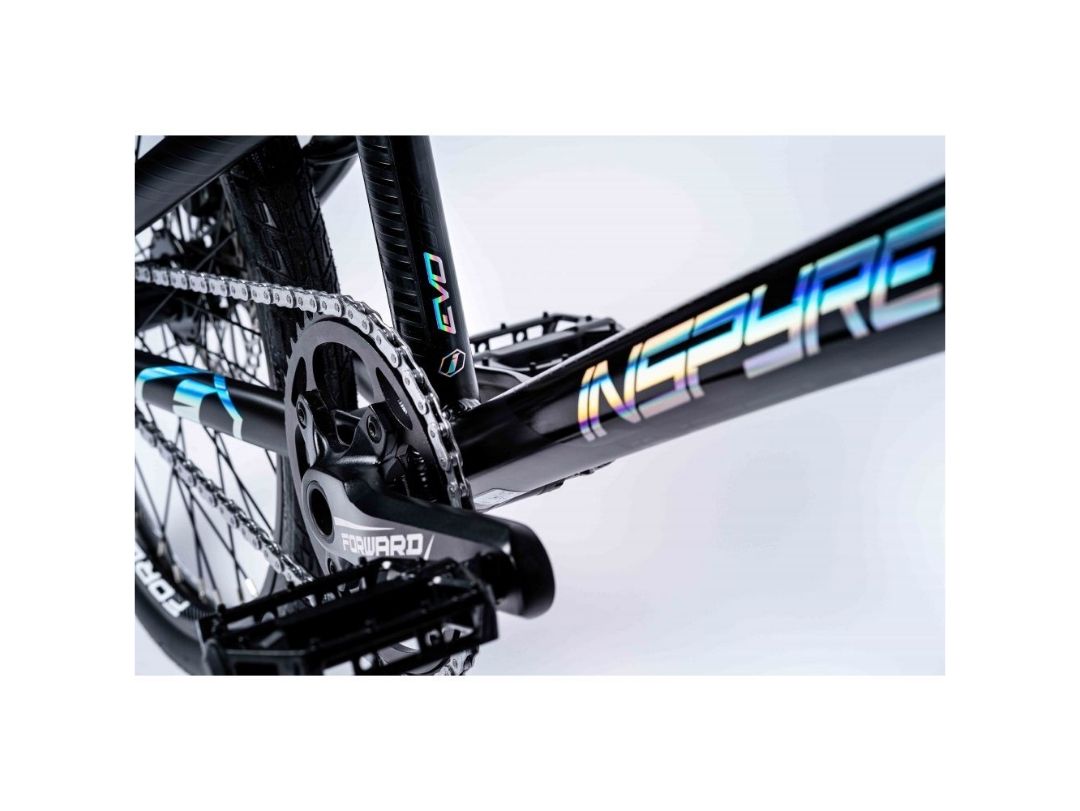

• CRANKSET : Forward Joyride AM 2 pieces - 4 Points - 170mm
• TIRES : Vee Tire® Speedbooster 20’’x1.40 (AV) / Vee Tire® Speedbooster 20’’x1.40 (AR)
• WEIGHT : 8,8kg
• GRIPS : Forward Lock On 130mm - Kraton
• STEM : Forward - Top Load - Aluminium 6061-T6 - 50mm
• SPOKES : Stainless 14G
• SEAT : PC 27,2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 20,25"
• BOTTOM BRACKET : External - EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m50 - 1m65
