BMX CHASE ELEMENT PRO 2021
BMX CHASE ELEMENT PRO 2021
DESCRIPTION :

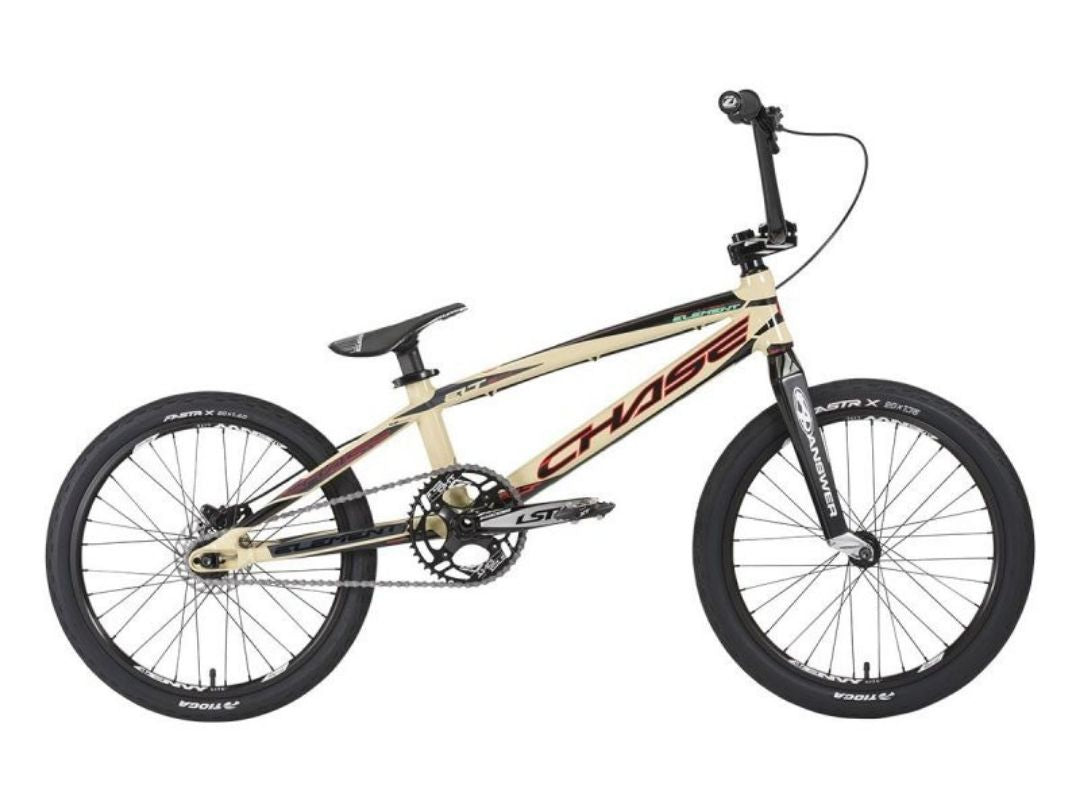

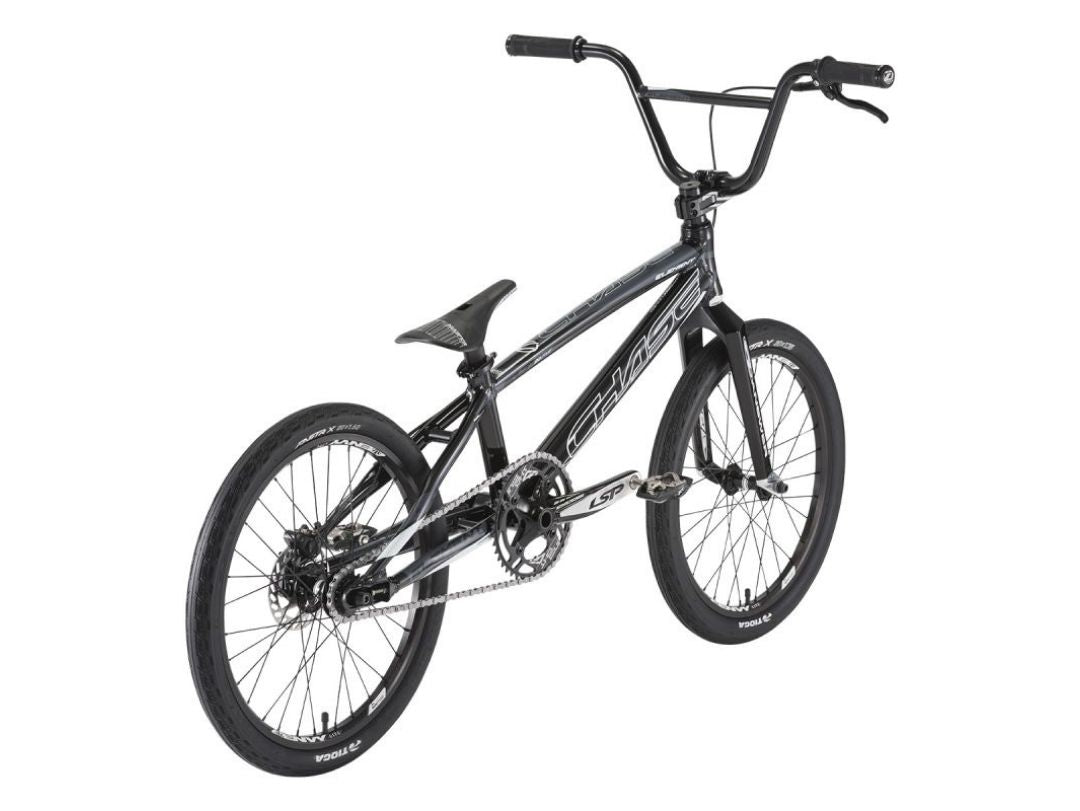

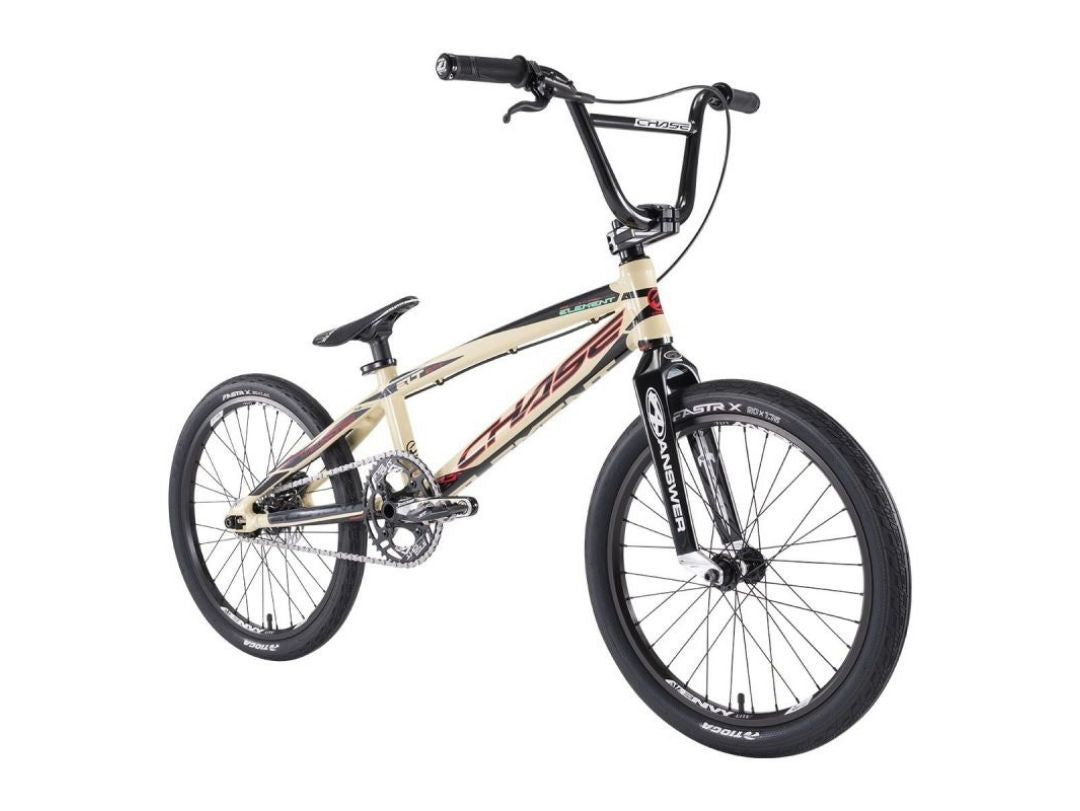

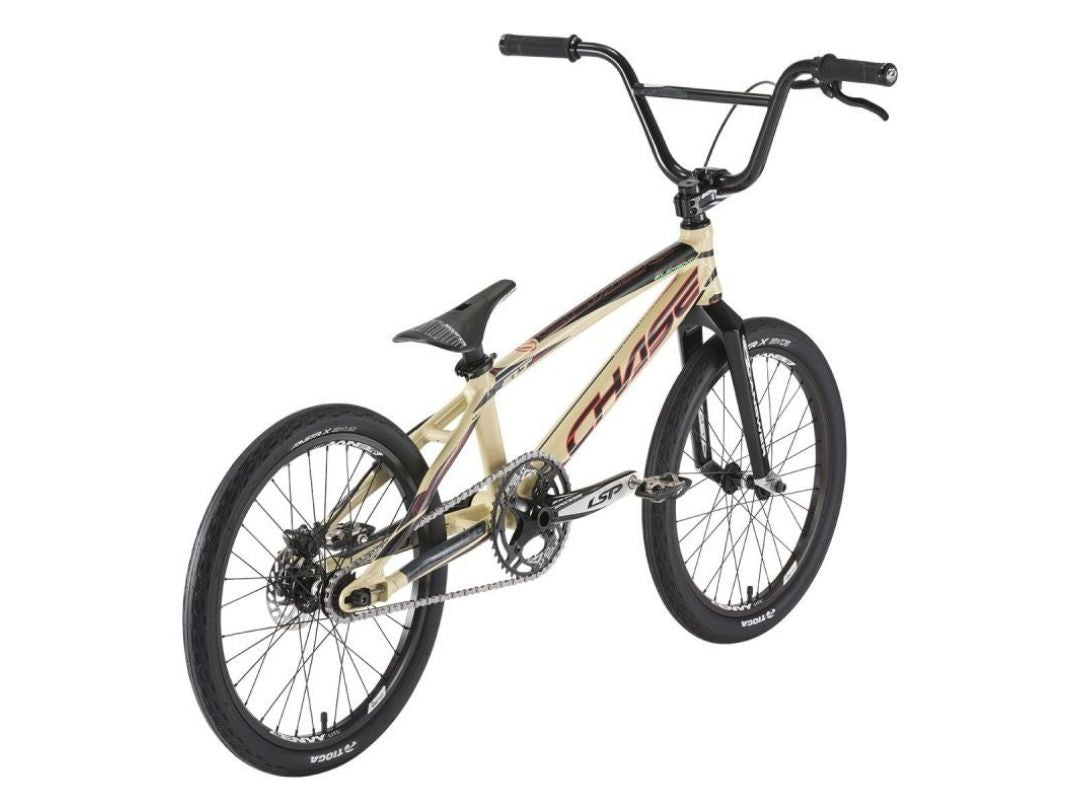

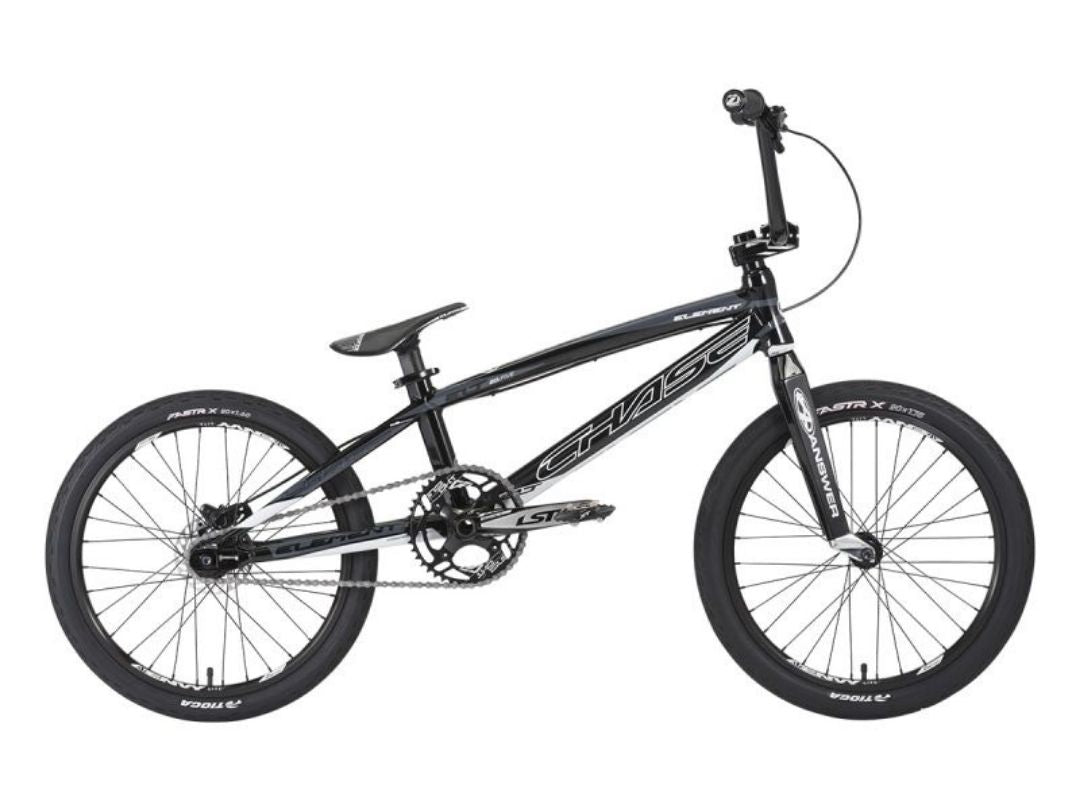

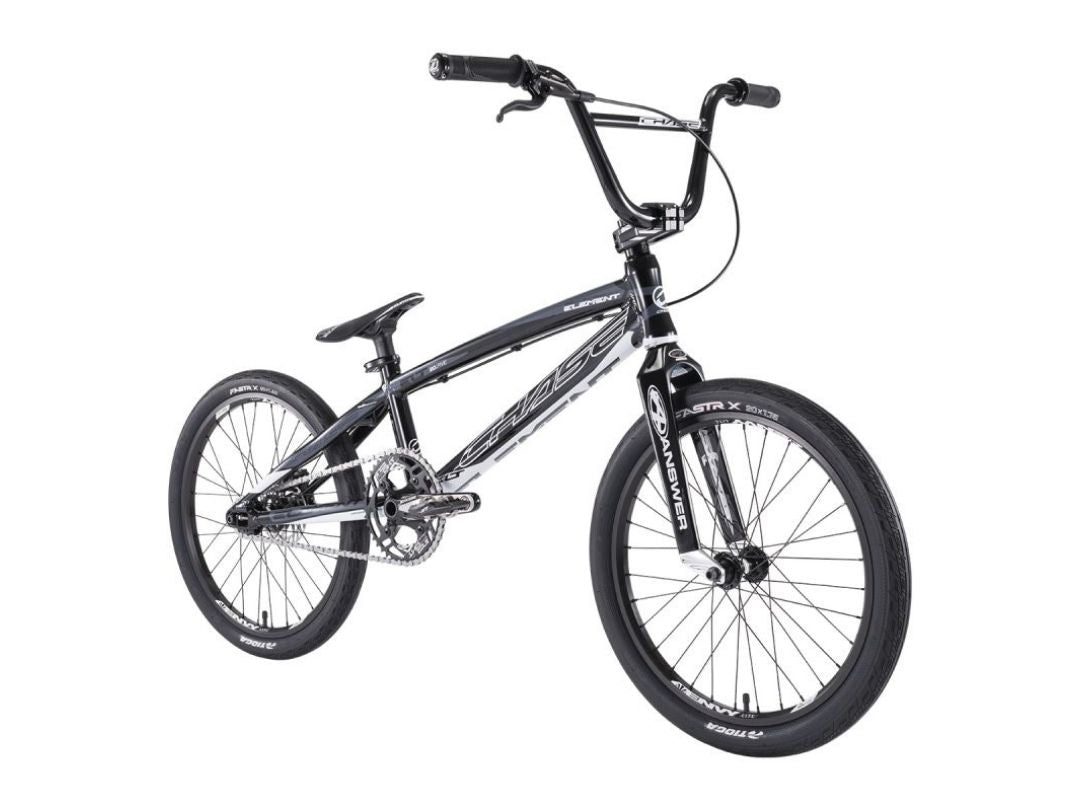

The CHASE Element has always been synonymous with true competition BMX. In 2020, CHASE asked its Pro riders Connor Fields and Joris Daudet what they liked most about their CHASE. They highlighted how the hydraulic brakes made a huge difference on the track, along with the Press Fit bottom bracket mounting and the ease of use of the chain tensioner systems integrated into the rear dropouts. CHASE has taken all these features and improved its design for 2021, the Element are now available in 2 color choices: a sand or black version. Always equipped with a Shimano disc braking system, a Press Fit bottom bracket and the rear dropout system present on the ACT and RSP 4.0 frames, the CHASE Element 2021 is equipped with a new handlebar always designed to be mount on a 31.8mm diameter stem which offers more rigidity to the cockpit. Like last year, it still comes equipped with an ANSWER carbon fork, TIOGA FASTR X tires, Triple Precise rear hub, Sun Ringlé rims, EXCESS LSP 2-piece crankset, ELEVN Pivotal saddle mounted on a stem fitted with the aero system, INSIGHT chainring and grips, as well as a KMC Z1 chain. The CHASE Element 2021 is the most successful complete bike for BMX competition today!
RECOMMENDED SIZE: 1m52 – 1m66
WEIGHT: 9.25 Kg with pedals
SPECIFICATIONS :
FRAME
|
CHASE Element Pro 20.5" Top Tube 7005 T6 Alloy, Integrated Head Tube 1-1/8", Enclosed rear dropouts and Chain tensioner system |
FORK
|
ANSWER Dagger Carbon Pro, Alloy Drop Out 3/8" Axle, 1-1/8" Alloy Steer Tube, Alloy Top Cap |
HEADSET
|
CHASE Integrated Sealed Bearing |
HANDLEBAR
|
CHASE Element 31.8mm, 7.5" Rise, 11° Back Sweep & 3,5° Up Sweep |
GRIPS
|
INSIGHT C.O.G.S 145mm, Alloy Clamps Laser Etched Logo, PVC End Plug |
STEM
|
CHASE Element 31.8mm, 50mm, 6061 T6 Alloy CNC Laser Etched Logo |
BB
|
Press Fit 68/73mm Cartridge Bearings |
CHAINRING
|
INSIGHT 43 Tooth 4 Bolts 104mm 1/2"x3/32" 5mm Alloy Ring |
CRANK
|
EXCESS LSP 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts |
PEDAL
|
Nylon Platform Pedal 9/16" |
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
COG
|
16 Tooth |
FRONT HUB
|
CHASE Element, 3/8" Axle, 36H, Sealed Bearing |
REAR HUB
|
CHASE Element ISO, 3/8" Axle, 36H, Sealed Bearing, M6 Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
SPOKES
|
14 Gauge |
NIPPLES
|
Brass 14Gx5/8" |
RIMS
|
SUN RINGLÉ Envy Lite Front 32H 20x1.50" No Brake Surface Schrader Valve |
FRONT TIRE
|
TIOGA FastR X 20x1.85" |
REAR TIRE
|
TIOGA FastR X 20x1.65" |
TUBES
|
20x1.50/1.75" Schrader valve |
BRAKES
|
SHIMANO MT400 Hydraulic Series, Resin Pads, 120mm Rotor, Lock Disc Adaptor |
SADDLE
|
ELEVN PC Pivotal |
SEAT POST
|
CHASE Aero Pivotal 27.2x260mm Polished Alloy |
SEAT CLAMP
|
CHASE Aero QR Alloy 31.8mm |
2021 Chase Element Pictured with Shimano XT Pedals but are for photo purposes only. Bikes come with Nylon Platform Pedals.
IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.
GEOMETRIES :
SIZES | TT | CS min | LR | AF | SA | HT | SPL | BBH | Wheels |
Expert | 20" 508 mm |
13.5" 342.9 mm |
1.5" 38.1 mm |
73° | 70° | 4.7" 120 mm |
9.2" 236 mm |
11" 279.4 mm |
20x1-3/8" |
Pro | 20.5" 520.7 mm |
14.25" 362 mm |
1.5" 38.1 mm |
74° | 72.5° | 4.7" 120 mm |
9.2" 236 mm |
11.5" 292.1 mm |
20x1.5" |
Pro XL | 21" 533.4 mm |
14.3" 363.3 mm |
1.5" 38.1 mm |
74° | 72.5° | 4.7" 120 mm |
9.2" 236 mm |
11.5" 292.1 mm |
20x1.75" |
Pro XXL | 21.5" 546.1 mm |
14.5" 368.3 mm |
1.5" 38.1 mm |
74° | 72.5° | 4.7" 120 mm |
9.2" 236 mm |
11.5" 292.1 mm |
20x1.75" |
Pro Cruiser | 21.5" 546.1 mm |
15.25" 387.3 mm |
1.5" 38.1 mm |
73° | 69.5° | 4.7" 120 mm |
9.8" 250 mm |
12" 304.8 mm |
24x1.75" |
