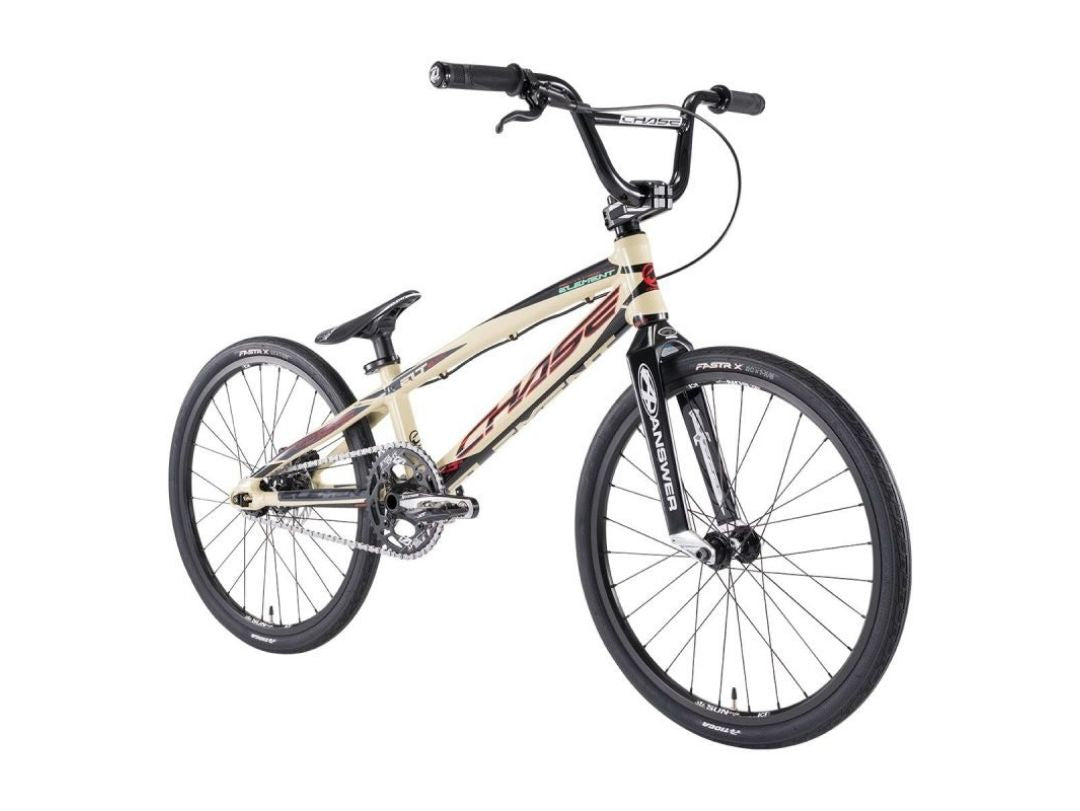

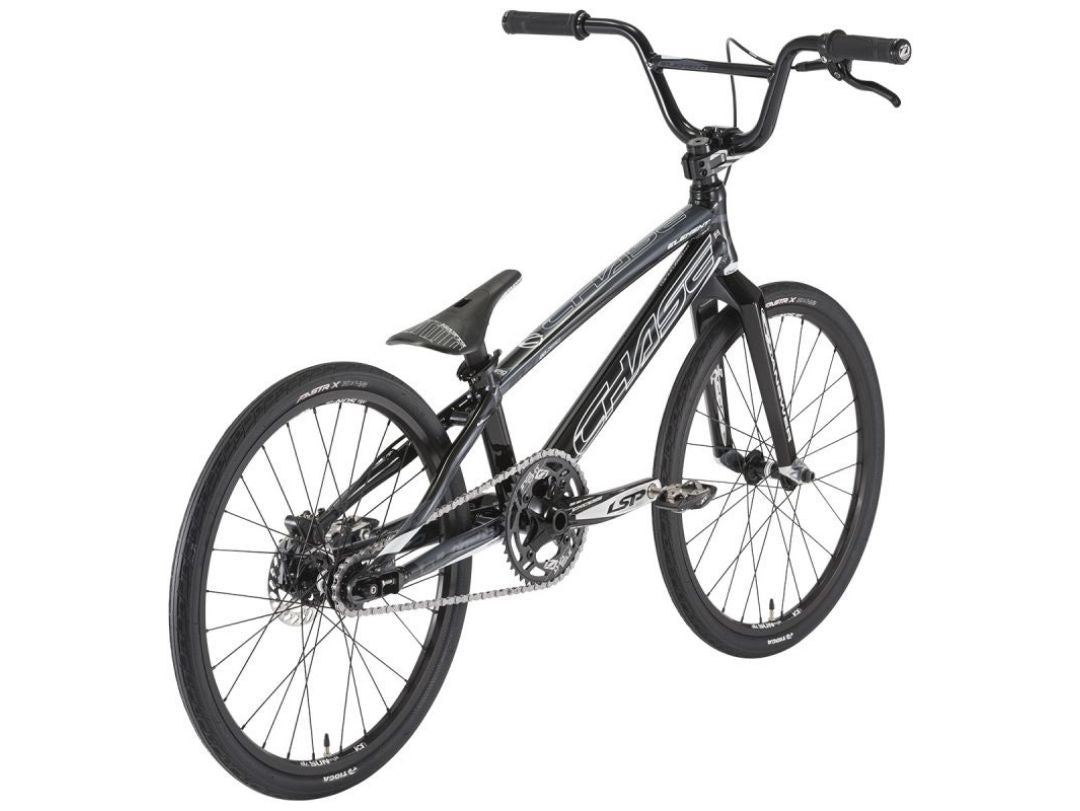

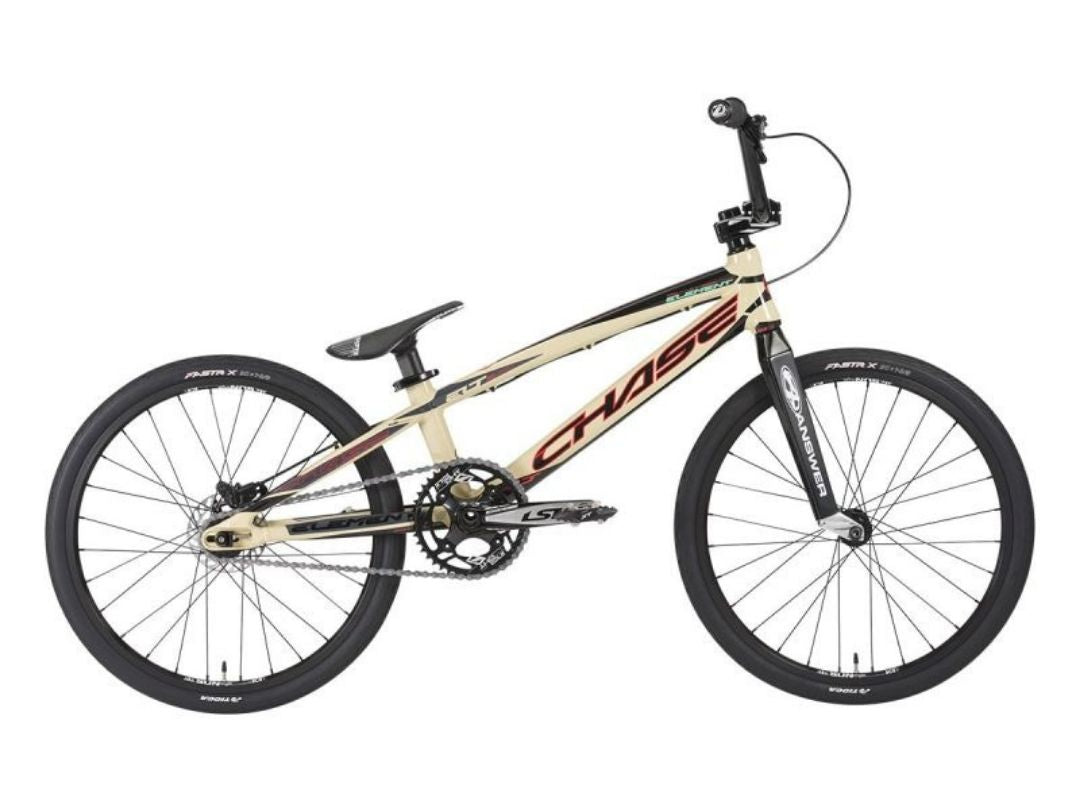

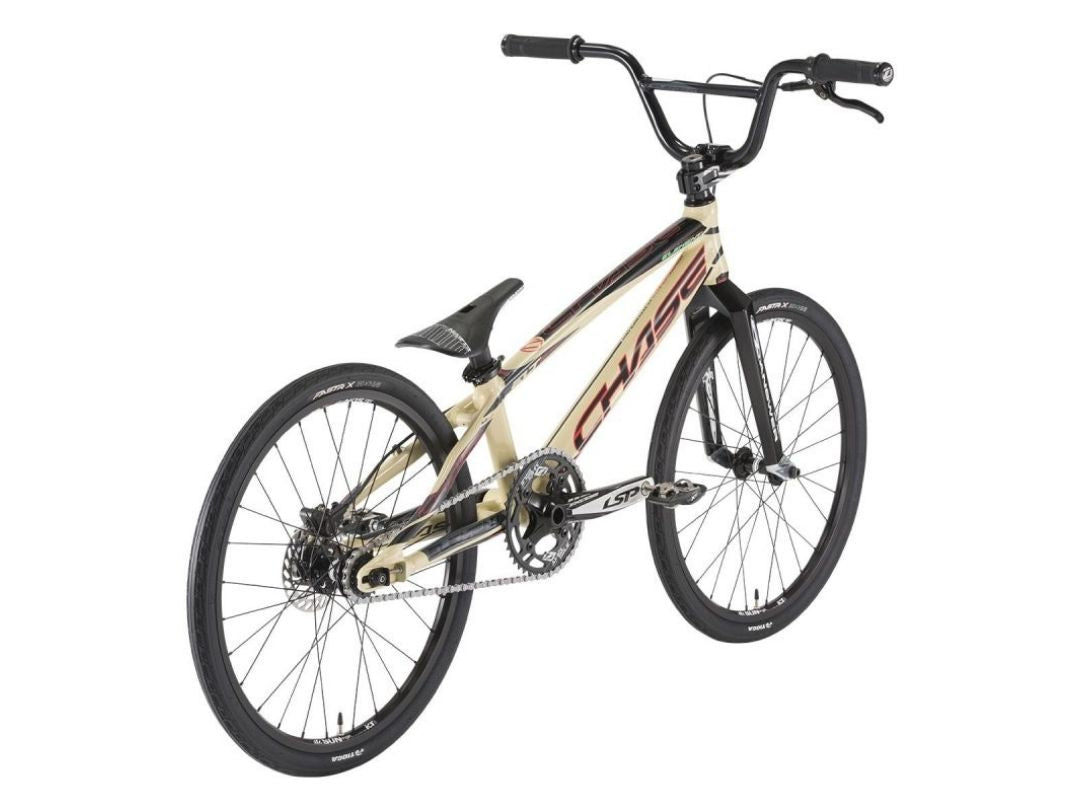

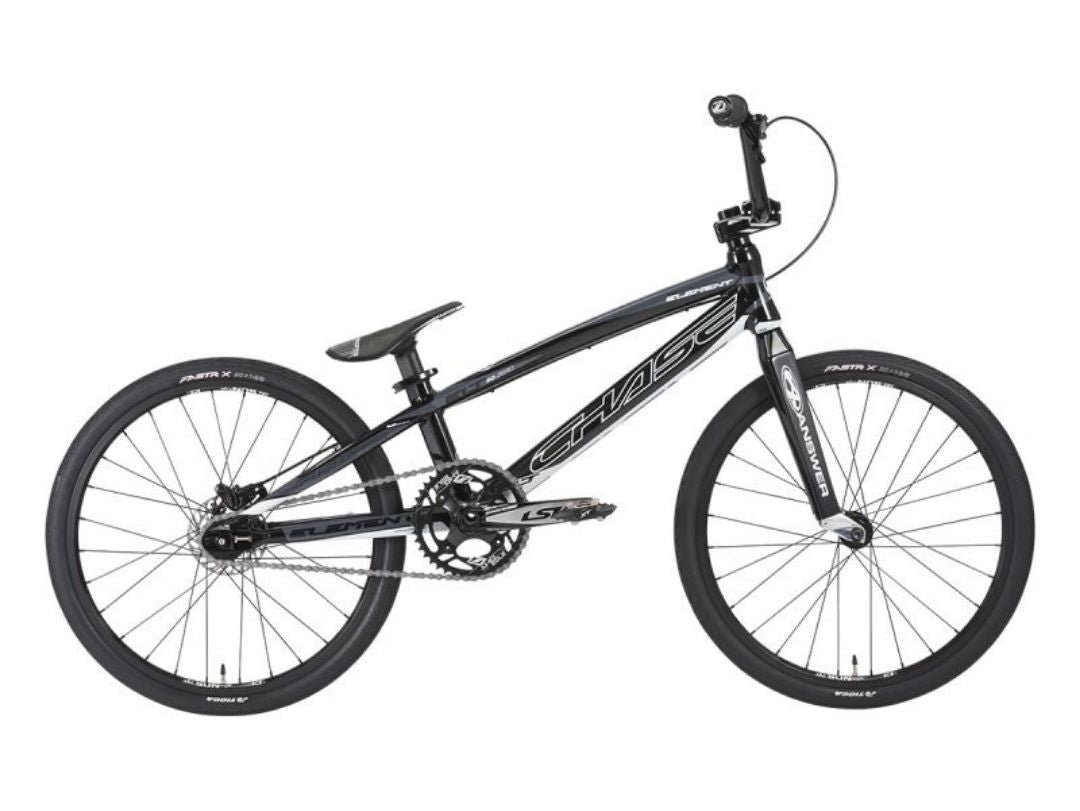

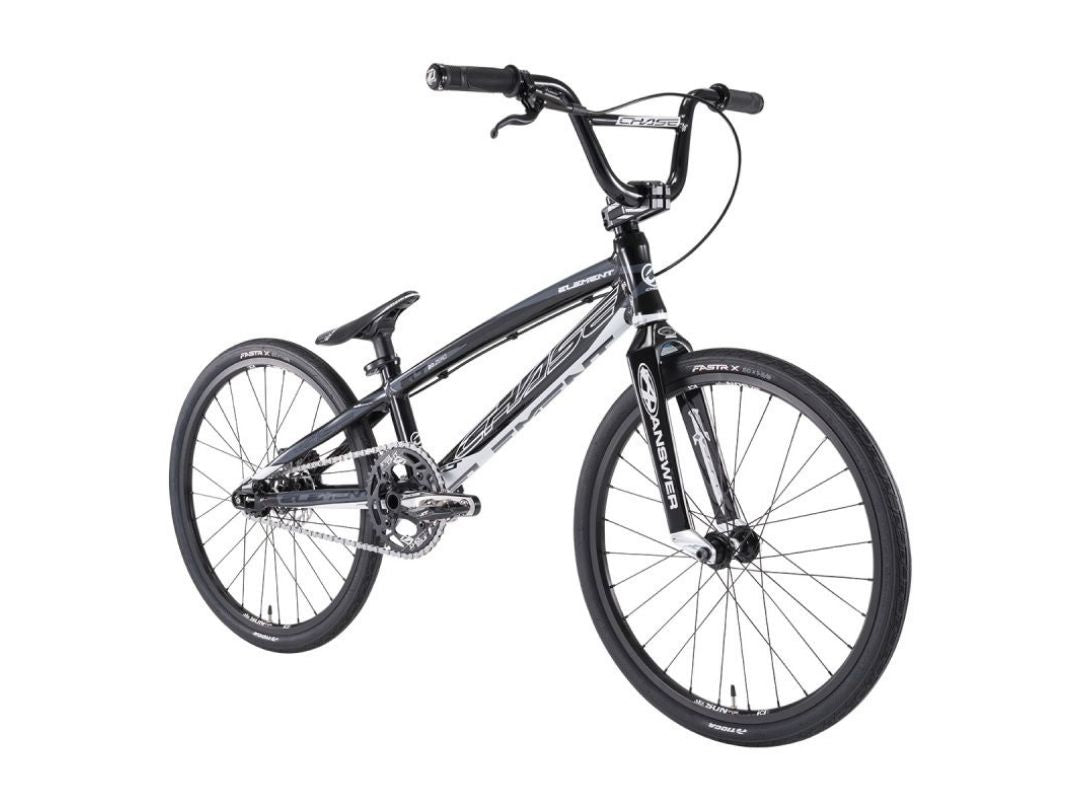

BMX CHASE ELEMENT EXPERT 2021

BMX CHASE ELEMENT EXPERT 2021

Regular price €1,249.00 EUR
Regular price Sale price €1,249.00 EUR
Sale Sold out
Taxes included.
Size
Color

DESCRIPTION :



The CHASE Element has always been synonymous with true competition BMX. In 2020, CHASE asked its Pro riders Connor Fields and Joris Daudet what they liked most about their CHASE. They highlighted how the hydraulic brakes made a huge difference on the track, along with the Press Fit bottom bracket mounting and the ease of use of the chain tensioner systems integrated into the rear dropouts. CHASE has taken all these features and improved its design for 2021, the Element are now available in 2 color choices: a sand or black version. Always equipped with a Shimano disc braking system, a Press Fit bottom bracket and the rear dropout system present on the ACT and RSP 4.0 frames, the CHASE Element 2021 is equipped with a new handlebar always designed to be mount on a 31.8mm diameter stem which offers more rigidity to the cockpit. Like last year, it still comes equipped with an ANSWER carbon fork, TIOGA FASTR X tires, Triple Precise rear hub, Sun Ringlé rims, EXCESS LSP 2-piece crankset, ELEVN Pivotal saddle mounted on a stem fitted with the aero system, INSIGHT chainring and grips, as well as a KMC Z1 chain. The CHASE Element 2021 is the most successful complete bike for BMX competition today!

RECOMMENDED SIZE: 1m41 – 1m54
WEIGHT: 8.2 Kg with pedals



SPECIFICATIONS :

FRAME
CHASE Element Expert 20" Top Tube 7005 T6 Alloy, Integrated Head Tube 1-1/8", Enclosed rear dropouts and Chain tensioner system
FORK
ANSWER Dagger Carbon Pro, Alloy Drop Out 3/8" Axle, 1-1/8" Alloy Steer Tube, Alloy Top Cap
HEADSET
CHASE Integrated Sealed Bearing
HANDLEBAR
CHASE Element 31.8mm, 5.75" Rise, 8° Back Sweep & 2° Up Sweep
GRIPS
INSIGHT C.O.G.S 130mm, Alloy Clamps Laser Etched Logo, PVC End Plug
STEM
CHASE Element 31.8mm, 45mm, 6061 T6 Alloy CNC Laser Etched Logo
BB
Press Fit 68/73mm Cartridge Bearings
CHAINRING
INSIGHT 42 Tooth 4 Bolts 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK
EXCESS LSP 2 Piece Crank 165mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL
Nylon Platform Pedal 9/16"
CHAIN
KMC Z1 narrow 1/2"x3/32"
COG
16 Tooth
FRONT HUB
CHASE Element, 3/8" Axle, 28H, Sealed Bearing
REAR HUB
CHASE Element ISO, 3/8" Axle, 28H, Sealed Bearing, M6 Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES
14 Gauge
NIPPLES
Brass 14Gx5/8"
RIMS
SUN RINGLÉ Envy Lite Front 28H 20x1-3/8" No Brake Surface presta Valve
FRONT TIRE
TIOGA FastR X 20x1-3/8"
REAR TIRE
TIOGA FastR X 20x1-3/8"
TUBES
20x1-3/8" presta valve
BRAKES
SHIMANO MT400 Hydraulic Series, Resin Pads, 120mm Rotor, Lock Disc Adaptor
SADDLE
ELEVN PC Pivotal
SEAT POST
CHASE Aero Pivotal 27.2x260mm Polished Alloy
SEAT CLAMP
CHASE Aero QR Alloy 31.8mm


2021 Chase Element Pictured with Shimano XT Pedals but are for photo purposes only. Bikes come with Nylon Platform Pedals.

IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.


GEOMETRIES :


SIZES TT CS min LR AF SA HT SPL BBH Wheels
Expert 20"
508 mm
13.5"
342.9 mm
1.5"
38.1 mm
73° 70° 4.7"
120 mm
9.2"
236 mm
11"
279.4 mm
20x1-3/8"
Pro 20.5"
520.7 mm
14.25"
362 mm
1.5"
38.1 mm
74° 72.5° 4.7"
120 mm
9.2"
236 mm
11.5"
292.1 mm
20x1.5"
Pro XL 21"
533.4 mm
14.3"
363.3 mm
1.5"
38.1 mm
74° 72.5° 4.7"
120 mm
9.2"
236 mm
11.5"
292.1 mm
20x1.75"
Pro XXL 21.5"
546.1 mm
14.5"
368.3 mm
1.5"
38.1 mm
74° 72.5° 4.7"
120 mm
9.2"
236 mm
11.5"
292.1 mm
20x1.75"
Pro Cruiser 21.5"
546.1 mm
15.25"
387.3 mm
1.5"
38.1 mm
73° 69.5° 4.7"
120 mm
9.8"
250 mm
12"
304.8 mm
24x1.75"
