52|63 Turbulent Aero

€1,799.00 EUR

Wheel Size 700c

Hub DT 350 DT 240 DT 180

Freehub - Rotor XDr / Centerlock HG / Centerlock

Replaced by the 57|64 TA

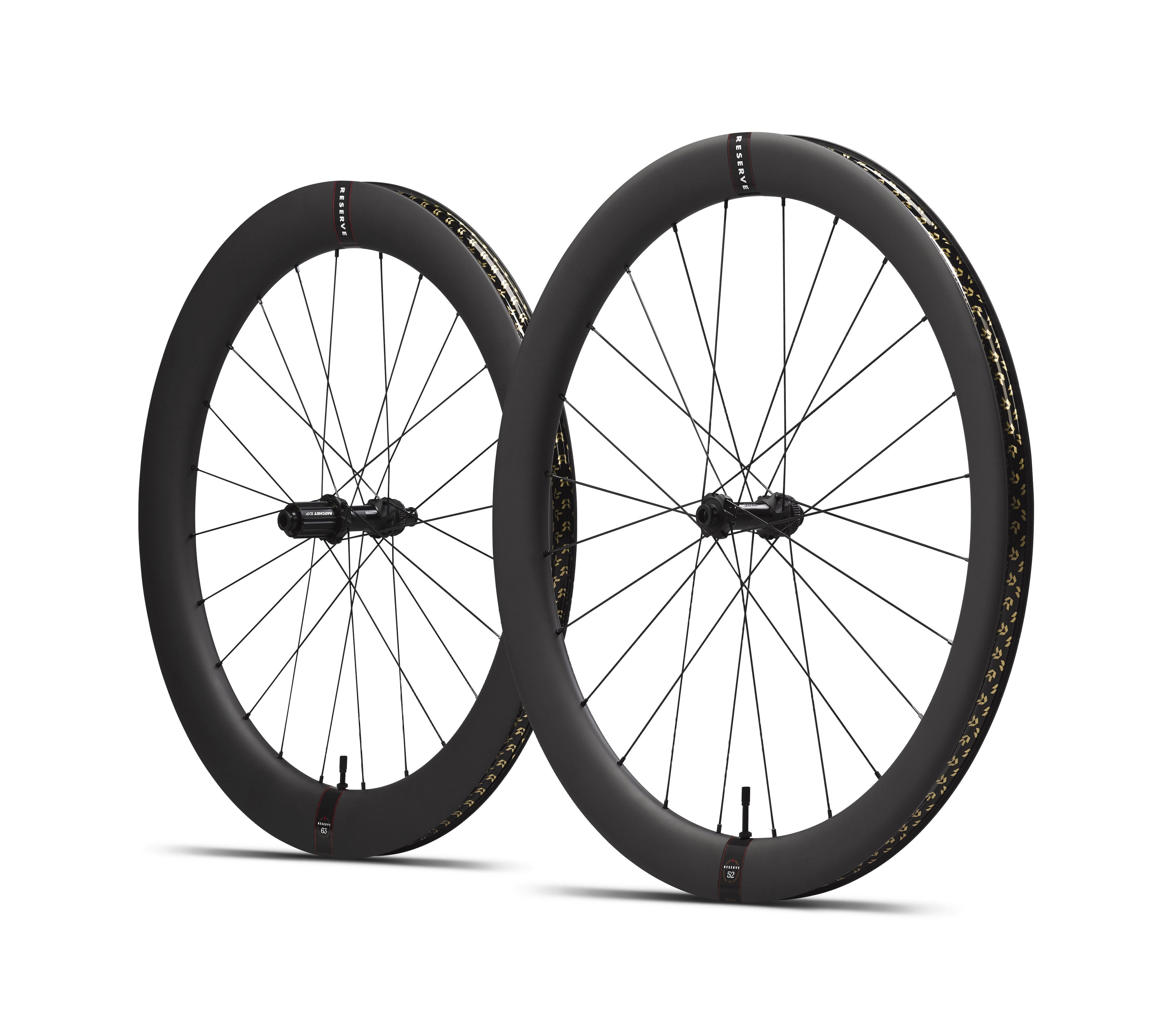

Winner of a Design and Innovation Award and Best Buy in Gran Fondo's 2024 aero wheel comparison, the Reserve 52|63 was designed to be the ultimate wheelset for sprint stages, triathlons, and anywhere with a straight long enough to make a break for it. The 52mm deep front slices through the air while still guaranteeing predictable handling in crosswinds, and the deep, 63mm rear helps you bank watts for those crucial final kilometers. It's the ultimate go fast wheelset, designed with Turbulent Aero technology.

See Full Specs

Engineered to take you further, faster, for longer.

Turbulent Aero Technology

For two years, we traveled the US, mapping different types of wind conditions, and then used this data to replicate real world conditions in the wind tunnel. All this work culminated in the creation of the first wheelset designed with Turbulent Aero technology.

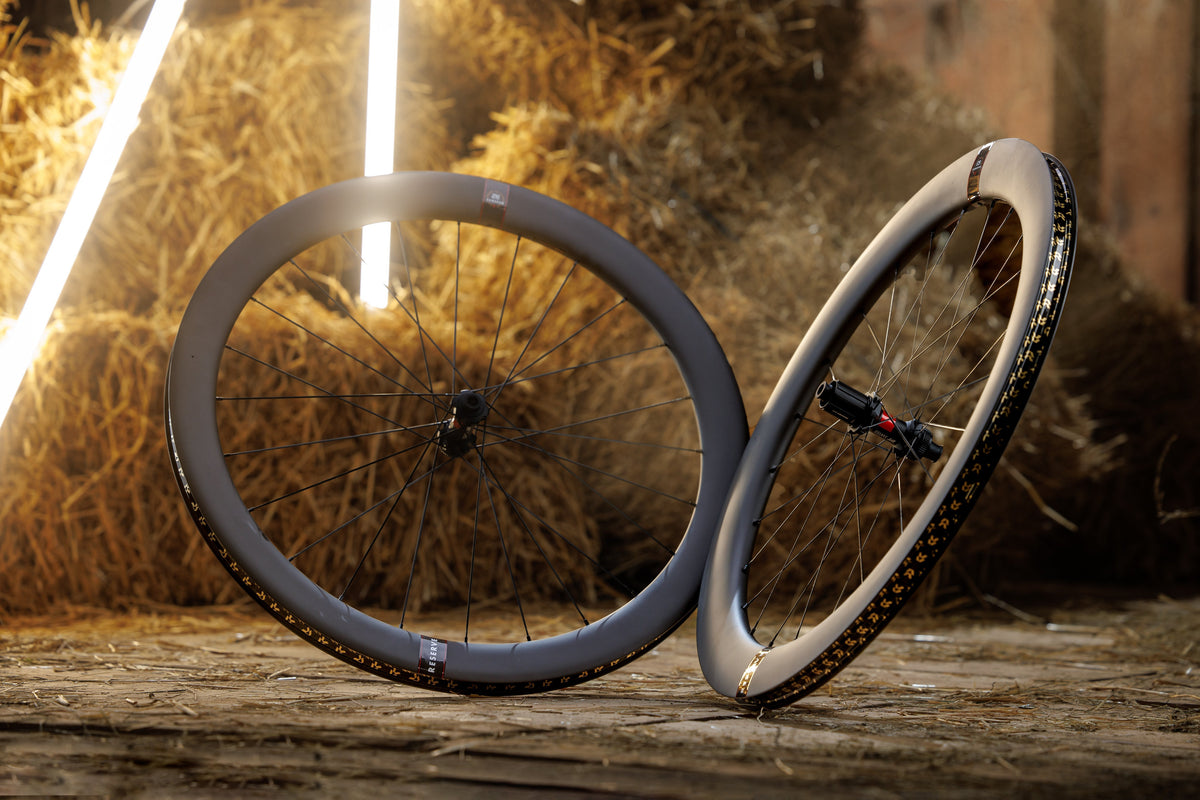

Design and Innovation Award Winner

Reserve won a Design and Innovation Award in 2023 with the new 52|63 road wheelset. Used exclusively on the Cervelo S5, the 52|63 marks a milestone in the evolution of road wheel aerodynamics. "With the 52|63, Reserve have developed a set of aero wheels that usher in a new era of aerodynamic design and development. “- Design and Innovation Award Jury

Stable and Fast

The 52|63 marks a milestone in the evolution of road wheel aerodynamics, where real world data and Turbulent Aero technology is used to design the fastest, most stable wheelset for real riders in real world conditions

Details

Designed For Road racing, crits, and fast group rides

Wheelset Weight DT350 1,660g , DT 240 - 1,606g , DT 180 - 1,576g , Single Rim - 465g/525g

Rim Weight 465g - 52, 520g - 63

ERD Front 537, Rear 515

Inner Width Front 25mm, Rear 24mm

External Width Front 35mm, Rear 34mm

Depth Front 52mm, Rear 63mm

Offset Rear 1.8mm

Recommended Tire Dimensions 28 to 35mm

Spoke Count 24

Hub Spacing 12X100mm/12X142mm

Freehub Options XDR, HG-EV

Disc Style Option Centerlock

FAQ

What is the maximum pressure for your rims?

Road rims: 100 psi (6.9 bar). Gravel rims: 80 psi (5.5 bar).

Always defer to the tyre manufacturer's stated maximum if it is lower than the rim's — the lower of the two figures is the one to run.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

Yes. We offer a full wheelbuilding service at Legend Bikes — send us your hubs, or choose hubs with us, and our workshop will build them to your Reserve rims. We also sell rim-only options if you'd prefer to have the wheels built elsewhere. Get in touch and we'll talk through spoke count, lacing and hub compatibility for your bike.

Where can I find more tech spec information?

The full technical specification for this wheel — ERD, rim widths, spoke count, hub spacing, freehub and rotor options — is listed in the Details section further down this page. If you need a figure that isn't there, contact us and we'll get it for you.

What's included in the box?

Complete wheelset:

• Fillmore valves

• Rim tape (fitted)

• User manual

Rim only:

• Fillmore valves

• Rim tape (not fitted)

• User manual

Who is the manufacturer on record?

Manufacturer:

Santa Cruz Bicycles, LLC
