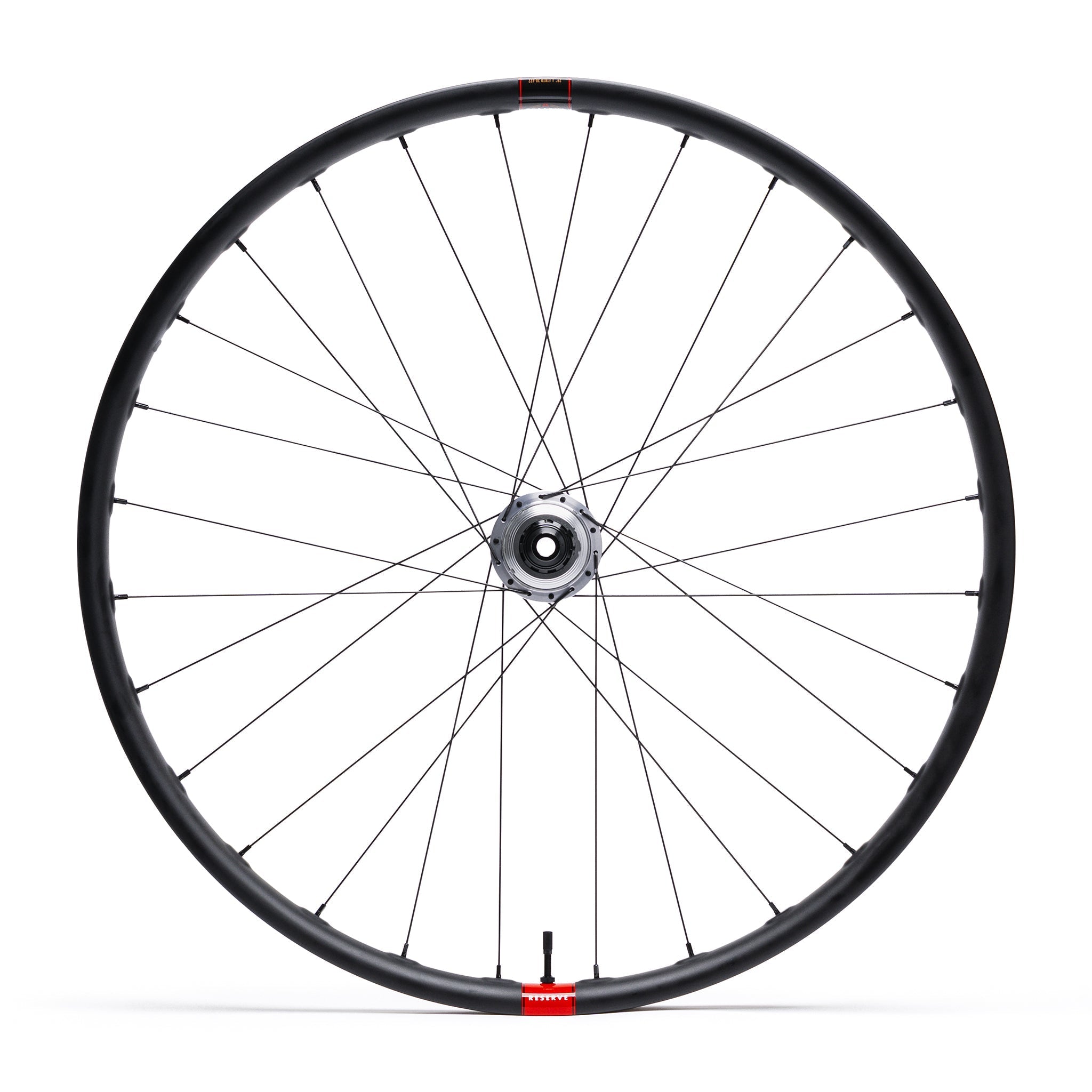

30|HD Carbon

Home › Components

Mountain

30|HD Carbon

€1,799.00 EUR

Wheel Size 29" MX 27.5"

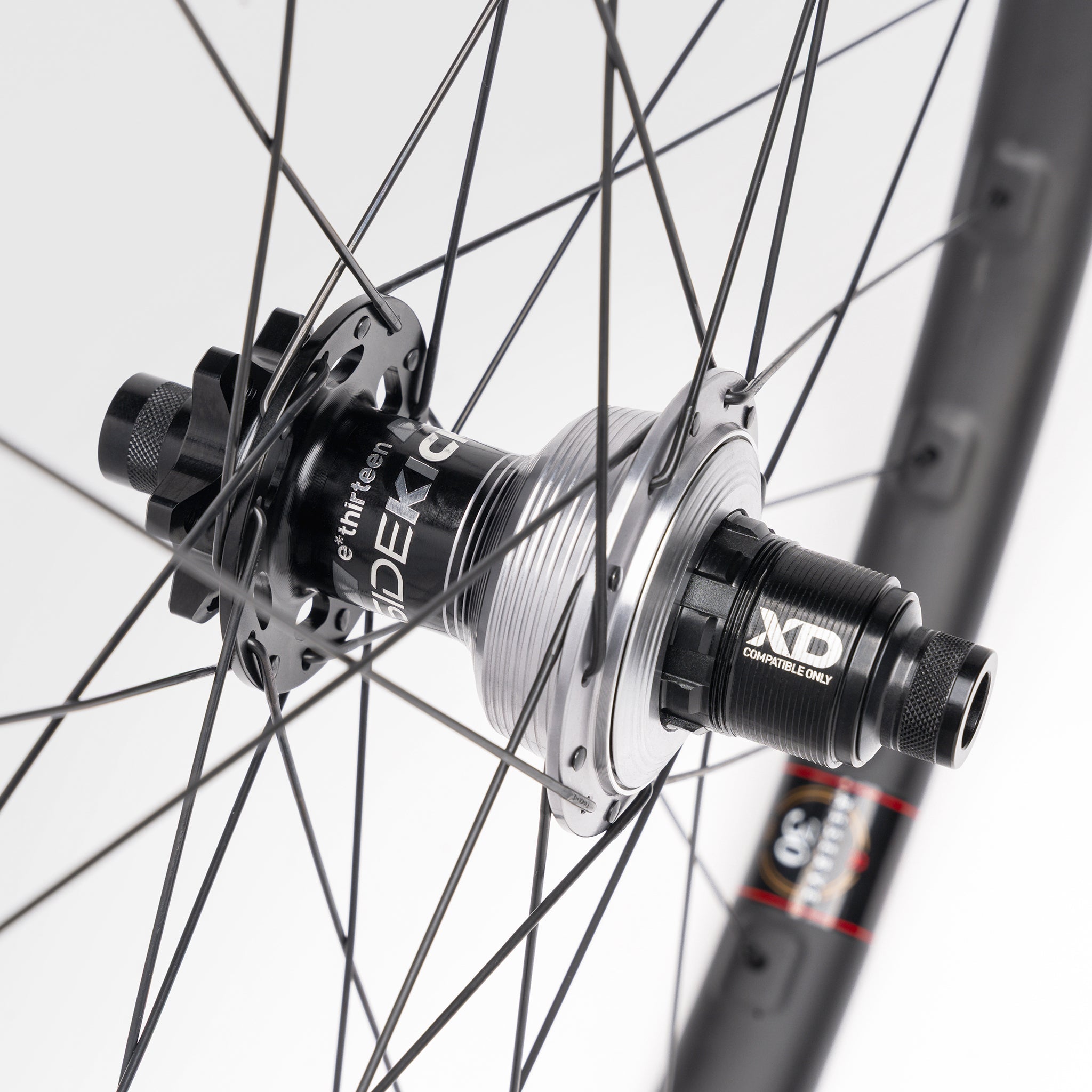

Hub DT 350 DEG 90T I9 Hydra I9 1|1

Freehub - Rotor XD / 6 Bolt MS / CL MS / 6 Bolt

Modern trail bikes are designed to tackle anything that can be thrown at them. From cruising mellow singletrack to crushing boulder-strewn steeps, they deliver a do-everything performance that inspires the rider to go faster, more smoothly. 30|HD wheels are specially designed for trail riding and the abuse that trail bikes dish out. They feature a 30mm width for use with 2.5 tires and a redesigned inner rim bed that takes the hassle out of seating new tires.

See Full Specs

All Reserve wheels are built around a simple principle: we have your back. That means no rider weight limits, an industry-leading Lifetime Warranty, safe semi-hooked rim designs and comprehensive customer service.

We are riders like you and we know that breaking a wheel or damaging a Fillmore Valve can be a frustrating experience, especially when it’s keeping you from getting out on your bike. Our promise to you is that we will do our best to get you back riding as quickly as possible. It’s the reason we have made ourselves available through email, chat or by scheduling a video call. We want to be here when you need us most.

1x Complete wheelset
34mm Reserve Rim Tape (installed)
2x 50mm Fillmore Tubeless Valves (un-installed)
User Manual

ASTM Classification: Condition 4

Maximum Tire Pressure: 50 psi (3.4 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

Free shipping on all wheels and orders over €79. We aim to ship orders within 24–48 hours on business days. Once shipped, your order should arrive within 3–5 business days. Orders ship with duties paid, so there are no surprise charges at delivery. New, unridden products can be returned within 60 days.

Engineered to take you further, faster, for longer.

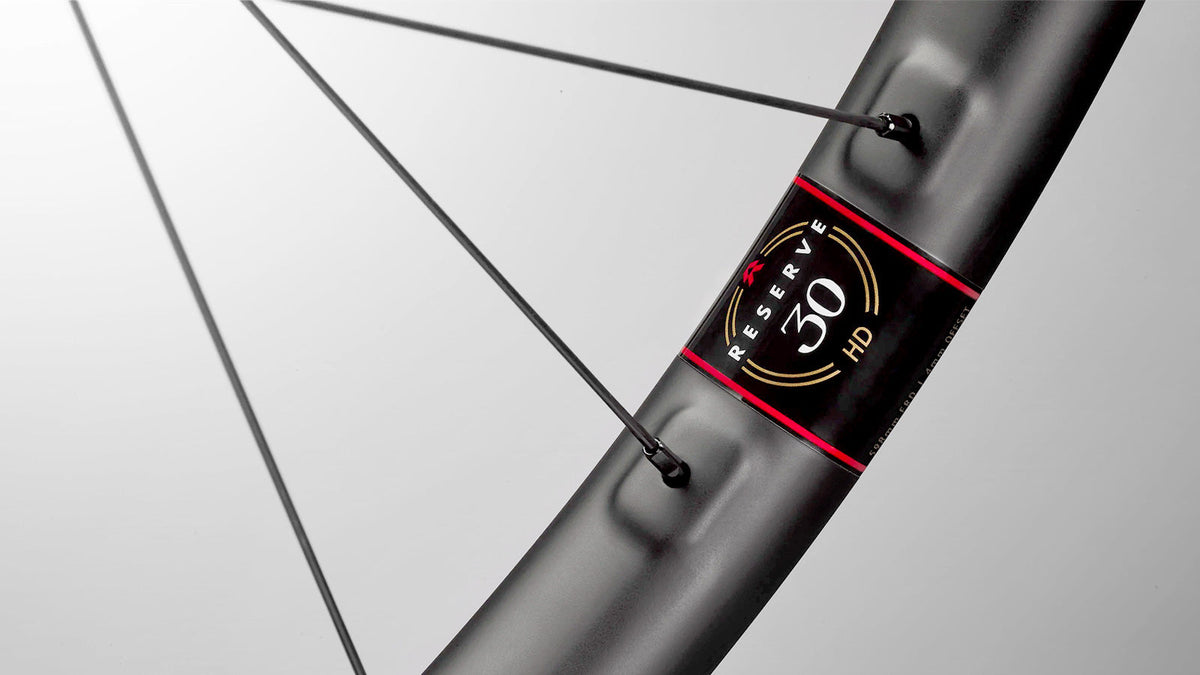

Asymmetrical Design

Asymmetrical rims improve the spoke bracing angles and equalize spoke tensions between the drive and non-drive side spokes. This leads to stiffer, stronger and more reliable wheels.

Lifetime Warranty

Reserve 30|HD rims are built for a lifetime of riding and proven at Enduro races around the world. Our lifetime warranty has your back no matter how you ride. These are the wheels that keep delivering.

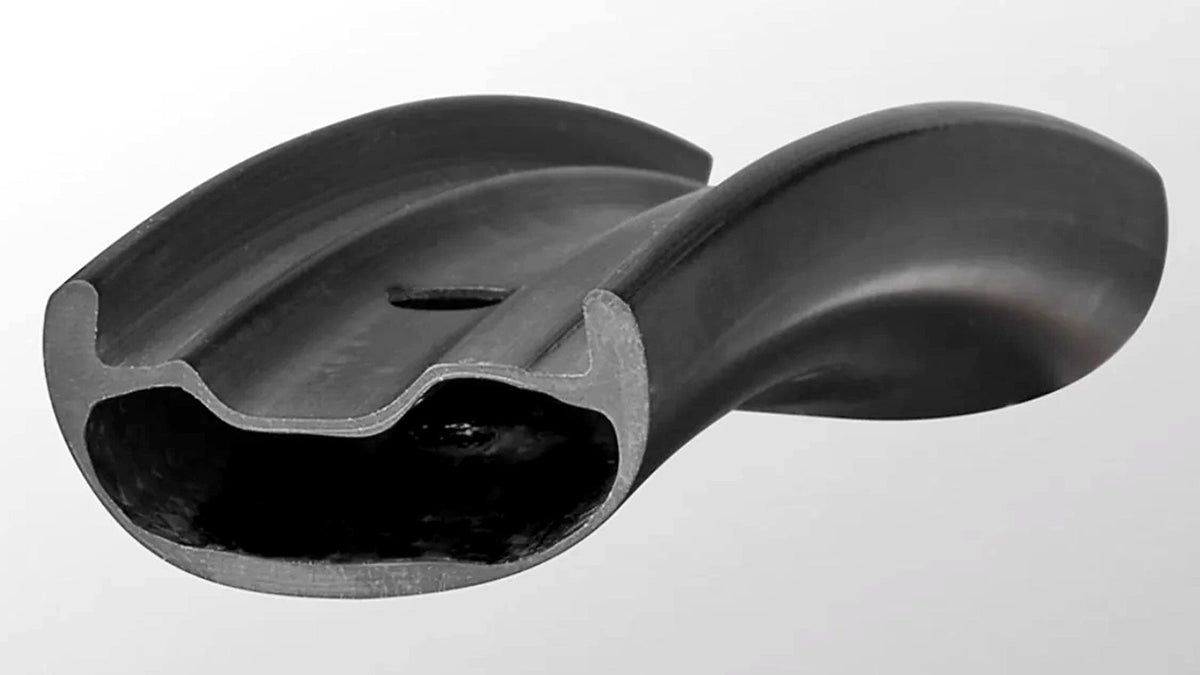

Redesigned Rim Bed

The 30|HD's redesigned rim bed makes tubeless installation easy and keeps your tire bead locked in. The design allows the tire to push past the bead bump, resting securely in the bed of the rim.

Details

Designed For Trail, All Mountain, Enduro, E-Bike

Hub Spacing Boost: 15x110 F - 12x148 R

Spoke Count 28

Wheelset Weight DT350 - 29" 1791g - MX 1788g

Wheelset Weight e13 Sidekick - 29" 1894g- MX 1891g

Rim Weight 29" 516g - 27.5" 497g

Inner Width 30mm

External Width 37mm

Rim Depth 20mm

Asymmetric Offset 3.6mm

ERD 29" 598mm - 27.5" 559mm

Recommended Tire Dimensions 2.2" to 2.6"

E-Bike Approved Yes

Not Sure Which Wheelset is Right For You? Watch This Short Video:

FAQ

What's with the raised square-shaped area around the spokes?

That's Reserve's spoke-hole reinforcement. Extra carbon is added exactly where the rim takes the most load — around the spoke nipple — so the wheel gains strength without carrying extra weight everywhere else.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

Yes. We offer a full wheelbuilding service at Legend Bikes — send us your hubs, or choose hubs with us, and our workshop will build them to your Reserve rims. We also sell rim-only options if you'd prefer to have the wheels built elsewhere. Get in touch and we'll talk through spoke count, lacing and hub compatibility for your bike.

Where can I find more tech spec information?

The full technical specification for this wheel — ERD, rim widths, spoke count, hub spacing, freehub and rotor options — is listed in the Details section further down this page. If you need a figure that isn't there, contact us and we'll get it for you.

What's included in the box?

Complete wheelset:

• Fillmore valves

• Rim tape (fitted)

• User manual

Rim only:

• Fillmore valves

• Rim tape (not fitted)

• User manual

Who is the manufacturer on record?

Manufacturer:

Santa Cruz Bicycles, LLC
